1. ETERNUS AX/HX Installation

ETERNUS AX/HX Dimensions

Site Planning Guide19

ETERNUS AX/HX Dimensions

■ Controller Shelf Dimensions

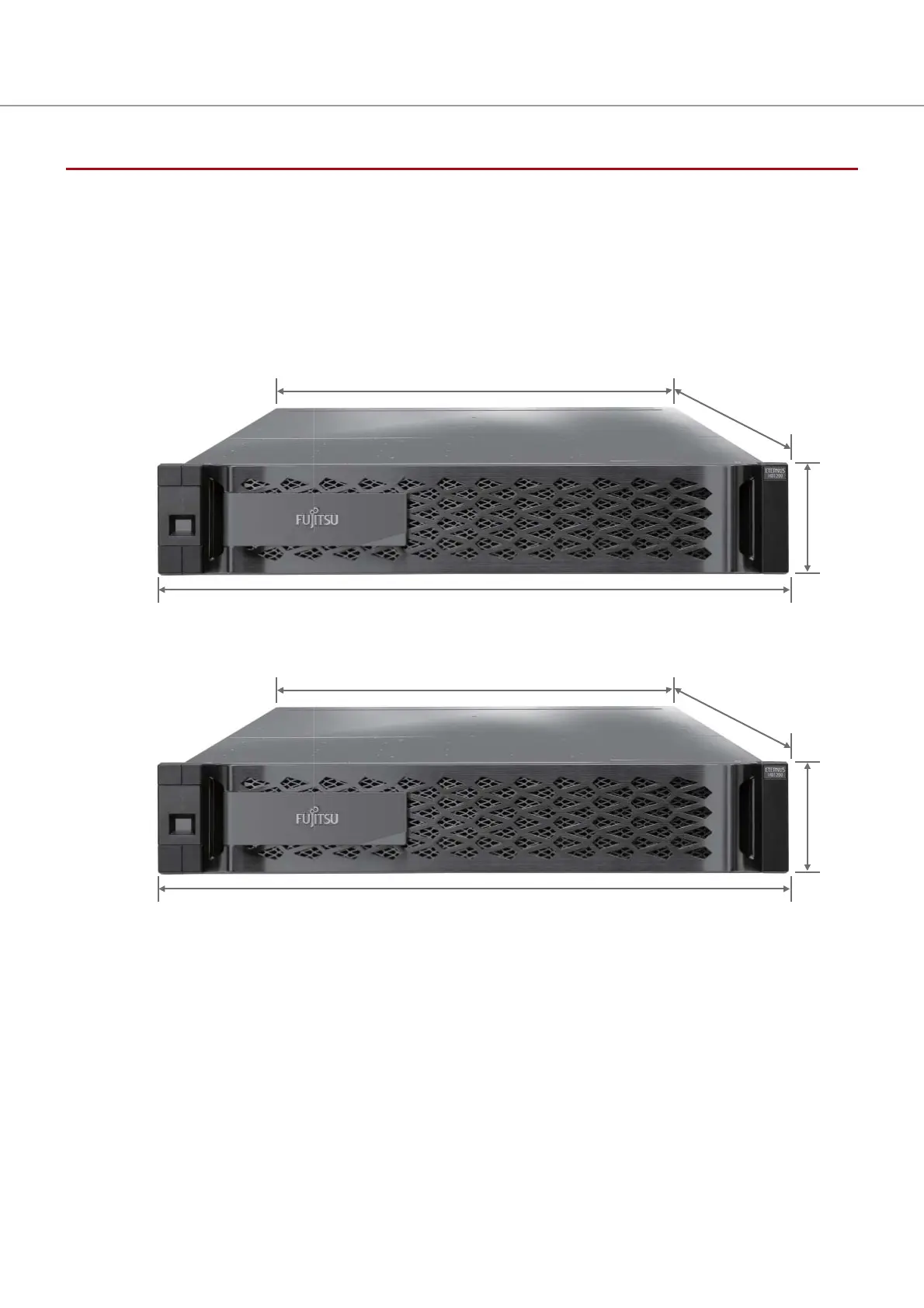

The following diagrams show the dimensions of a controller shelf. The dimensions are approximations and do not

include protruding parts.

● 2.5" Type Controller Shelf

Figure 1 2.5" Type Controller Shelf Dimensions (ETERNUS AX1100/AX2100, ETERNUS HX2200)

Figure 2 2.5" Type Controller Shelf Dimensions (ETERNUS AX2200)

447 mm (without the flanges)

480 mm (with the flanges)

85 mm

483 mm

447 mm (without the flanges)

483mm (with the flanges)

87 mm

543 mm
