1. ETERNUS AX/HX Installation
Outlet/Socket Specifications
Site Planning Guide42

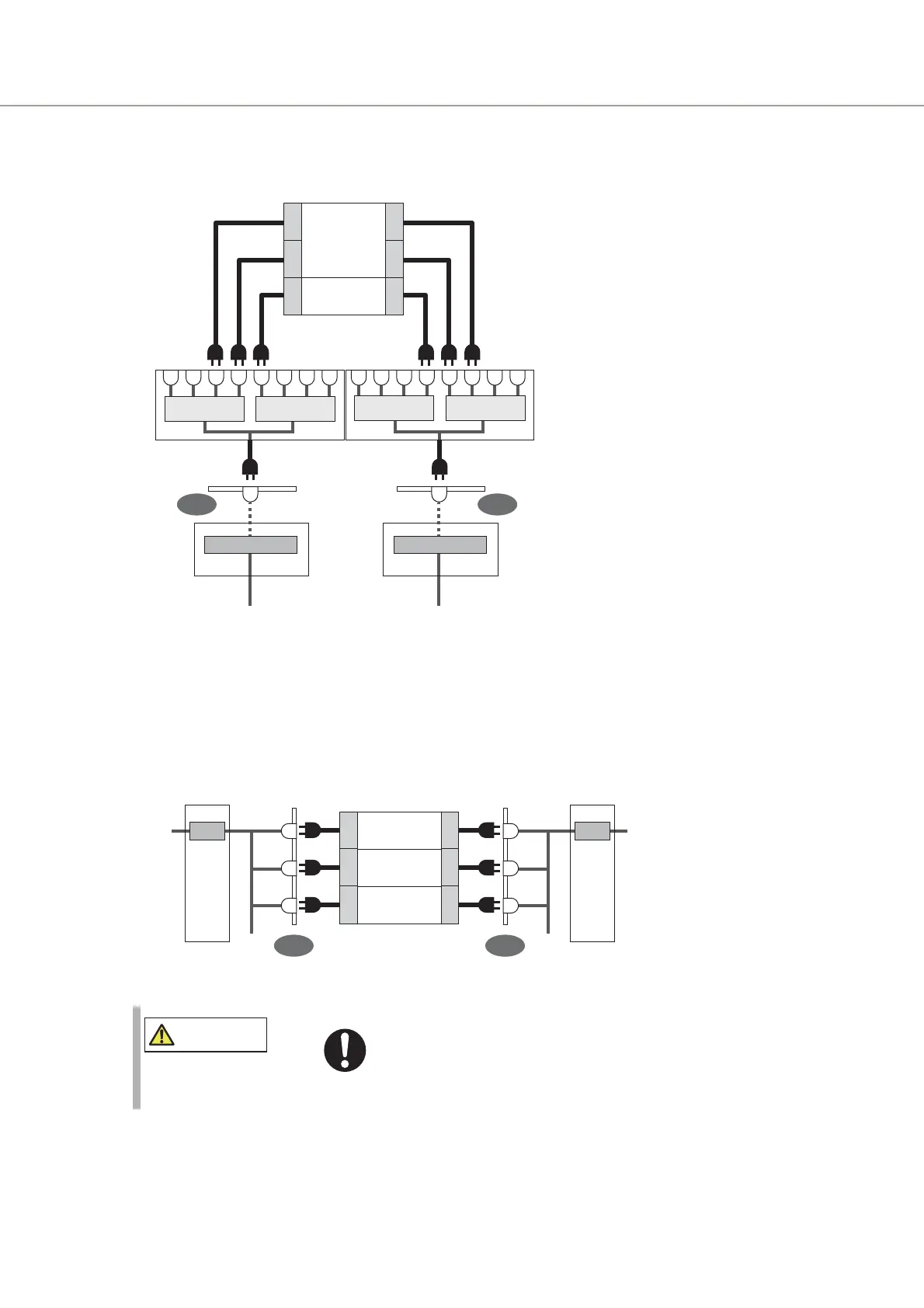

Figure 21 Example of a Power Supply Connection When a Power Distribution Unit (16 Outlets) Is Used with
the ETERNUS AX4100 or the ETERNUS HX6100
PSU: Power Supply Units
CP: Circuit Protectors
For Direct (No Power Distribution Unit) Connections
The following diagram shows a power supply connection example when no power distribution units are used.
Figure 22 Example of a Power Supply Connection When a Power Distribution Unit Is Not Used
PSU: Power Supply Units
CP: Circuit Protectors
CAUTION
Do
Only connect the ETERNUS AX/HX to circuit protectors.
Distribution
board
Line 0
To power supply facility To power supply facility
Line 1
CP
CP
CP
CP
Power distribution unit
CP CP
PSU
PSU
Drive shelf
ETERNUS AX4100 or ETERNUS HX6100
PSU
PSU
PSU
PSU
Controller shelf
(4U)
Distribution
board
Line 0
CP
Distribution board
Distribution board
To power supply facility
To power supply facility
CP
ETERNUS
PSU PSU PSU
PSU PSU PSU
Drive shelf
Drive shelf
Controller shelf
Line 1
