2. Rack Installation Specifications
Rack Installation Requirements
Site Planning Guide47

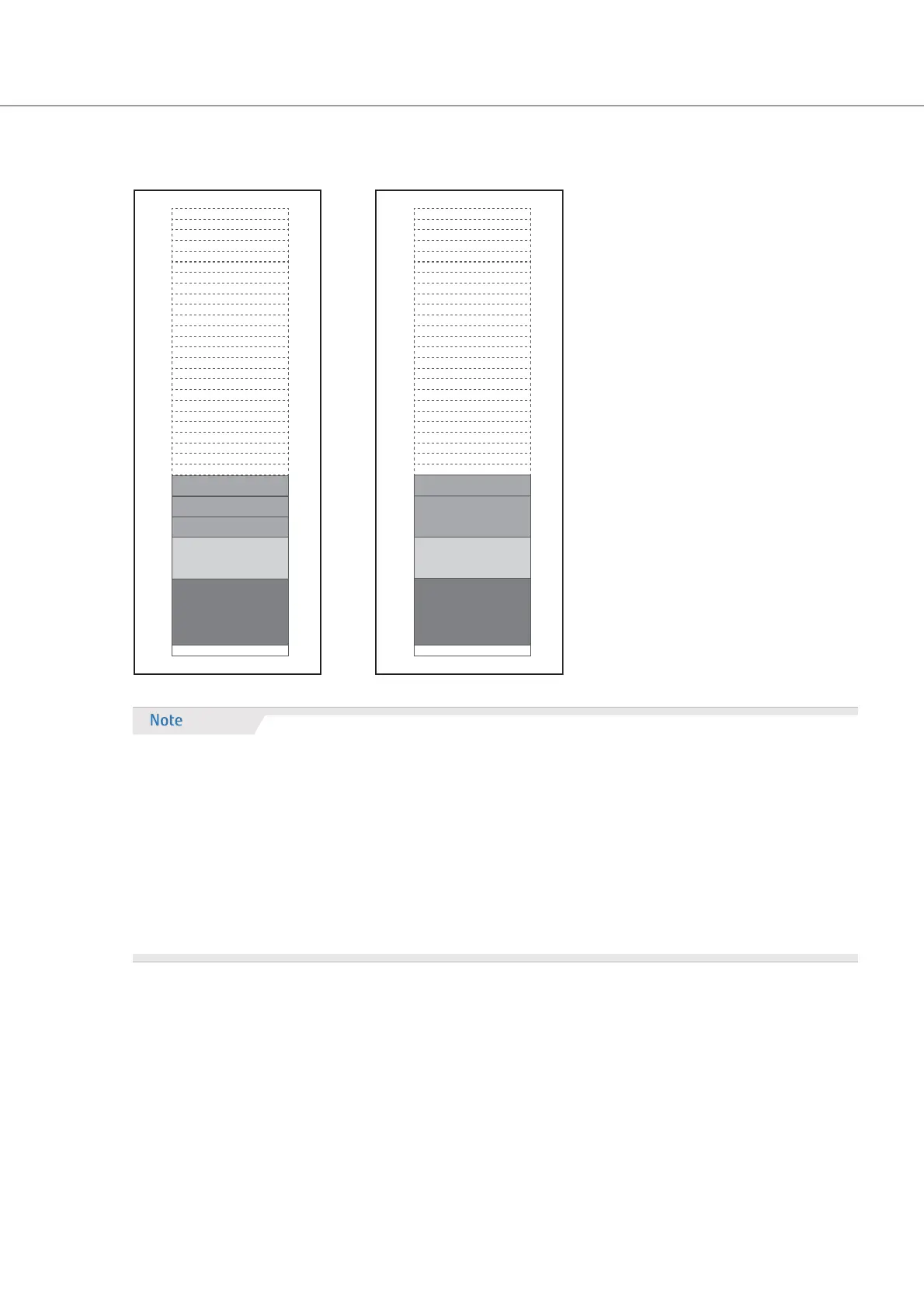

Figure 27 Example Rack Installation: ETERNUS AX4100, ETERNUS HX6100
• When determining the rack-mounting layout of each shelf and power distribution unit, consider the length
of each cord. For example, if the ETERNUS AX/HX is installed at the top of a 2000 mm rack and a 4 m power
cord is used, the surplus length of the power cord at the bottom of a rack should be about 2 m.
• If the ETERNUS AX/HX is installed at the bottom of a rack, a space for the surplus of cables may not be avail-
able in some racks, preventing the ETERNUS AX/HX from being pulled out when maintenance work is
required. In this case, secure a space of 1U or more at the bottom when installing the ETERNUS AX/HX.
• If drive shelves are to be added in the future, securing sufficient space for power distribution units in the bot-
tom of the rack is recommended.
• If devices are installed above and below the ETERNUS AX/HX and there is a difference in depth of 100 mm or
more, leave a space of 1U above the ETERNUS AX/HX so the rear of the unit can be easily accessed.
Rack Wide rack
Drive shelf
Controller shelf
Controller shelf
PDU
41U
40U
39U
38U
37U
36U
35U
34U
33U
32U
31U
30U
29U
28U
27U
26U
25U
24U
23U
22U
21U
20U
19U
18U
17U
16U
15U
14U
13U
12U
11U
10U
42U
9U
8U
7U
6U
5U
4U
3U
2U
1U
41U
40U
39U
38U
37U
36U
35U
34U
33U
32U
31U
30U
29U
28U
27U
26U
25U
24U
23U
22U
21U
20U
19U
18U
17U
16U
15U
14U
13U
12U
11U
10U
42U
9U
8U
7U
6U
5U
4U
3U
2U
1U
Space
PDU
Drive shelf
Drive shelf
Drive shelf
Drive shelf
Space
