Installation Environment
Site Planning Guide32

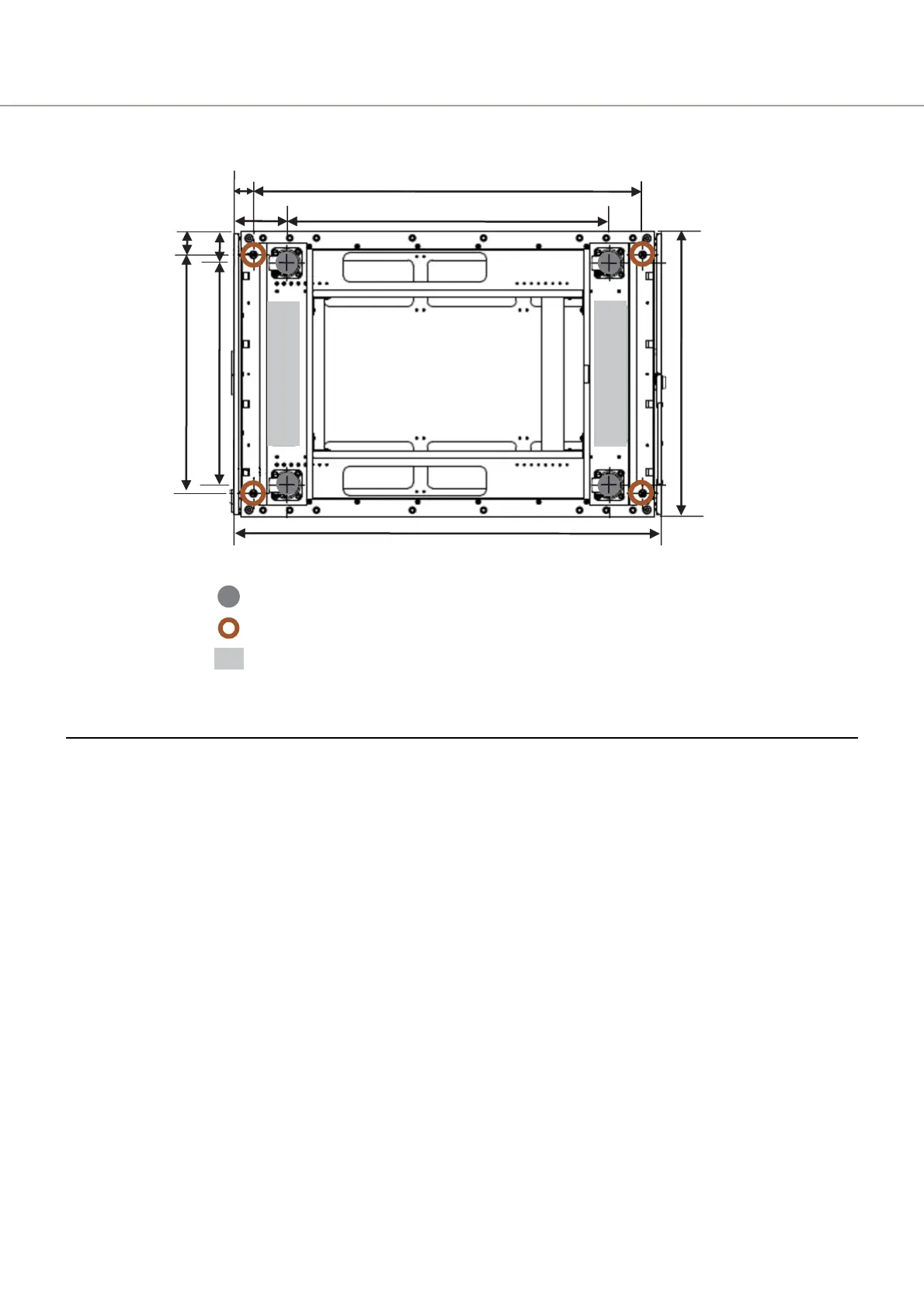

Figure 15 Floor Dimensions of the Rack (of 19-inch Wide Racks)
Load Bearing Capacity for Floors
Make sure that the following relationship between the load bearing capacity of the floor and the weight of the
ETERNUS AX/HX is maintained.
(Load bearing capacity of the floor) > (ETERNUS AX/HX weight ÷ Installation area that includes service
areas)
If the condition above is not satisfied, additional measures are required to ensure sufficient load bearing capac-
ity.
Contact your installation contractor for details about the necessary measures that must be taken.
1,093.6 mm (leveling feet)
906.8 mm (caster)
Front Rear
623 mm (caster)
670 mm (leveling feet)
800 mm
1
,
200 mm
65 mm
88.5 mm
5
3.2 mm
146.6
Caster
Leveling feet
Cable slot
mm
