1. ETERNUS AX/HX Installation
Installation Area
Site Planning Guide29
When DS460C drive shelves (60-drive) are installed in a rack or being maintained, temporary space is required to
use the lifter around the rack.

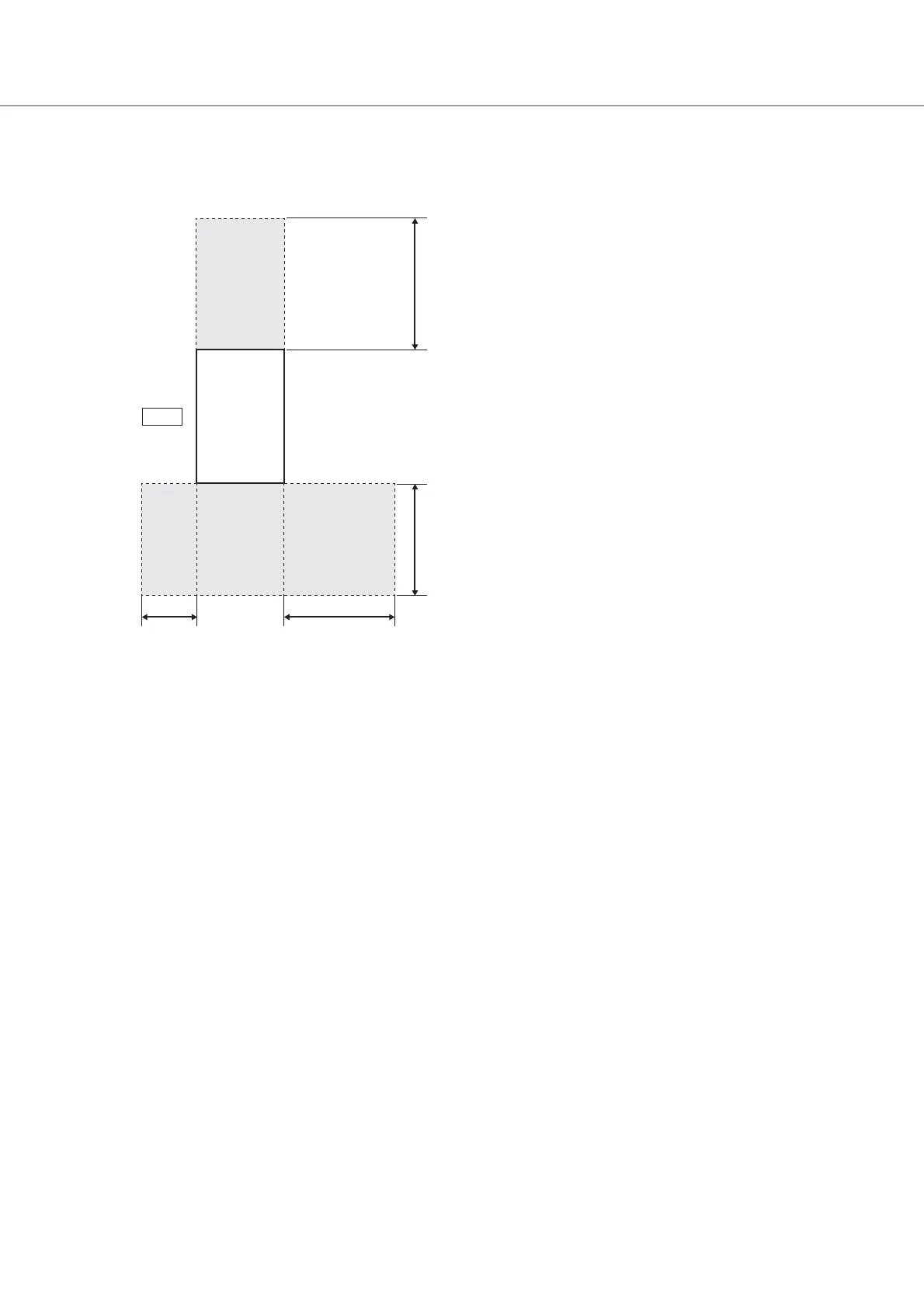

Figure 13 Installation Area and Service Area (When the Lifter Is Used)
*1: If a service area in front of the rack can be secured, secure a size 1,800mm or more.
■ Precautions for Installing a DS460C Drive Shelf (60-Drive) in a Rack
• A lifter must be used to ensure safety during the installation of the drive shelf in the rack. Secure a space
required to use the lifter.
• When a drive is added or replaced, the front left and right of the rack must be secured as service areas to pull
out the drawer.
• The drive shelf weighs a maximum of 115 kg. Be sure to maintain the load bearing capacity of the location
where the drive shelves are installed.
850 mm or more
1,020 mm or more (*1)
500 mm or more 1,000 mm or more
Rear service area
Front service area
19-inch rackTop
