Fujitsu ETERNUS AX Series Guide

2. Rack Installation Specifications
Rack Installation Requirements
Site Planning Guide51

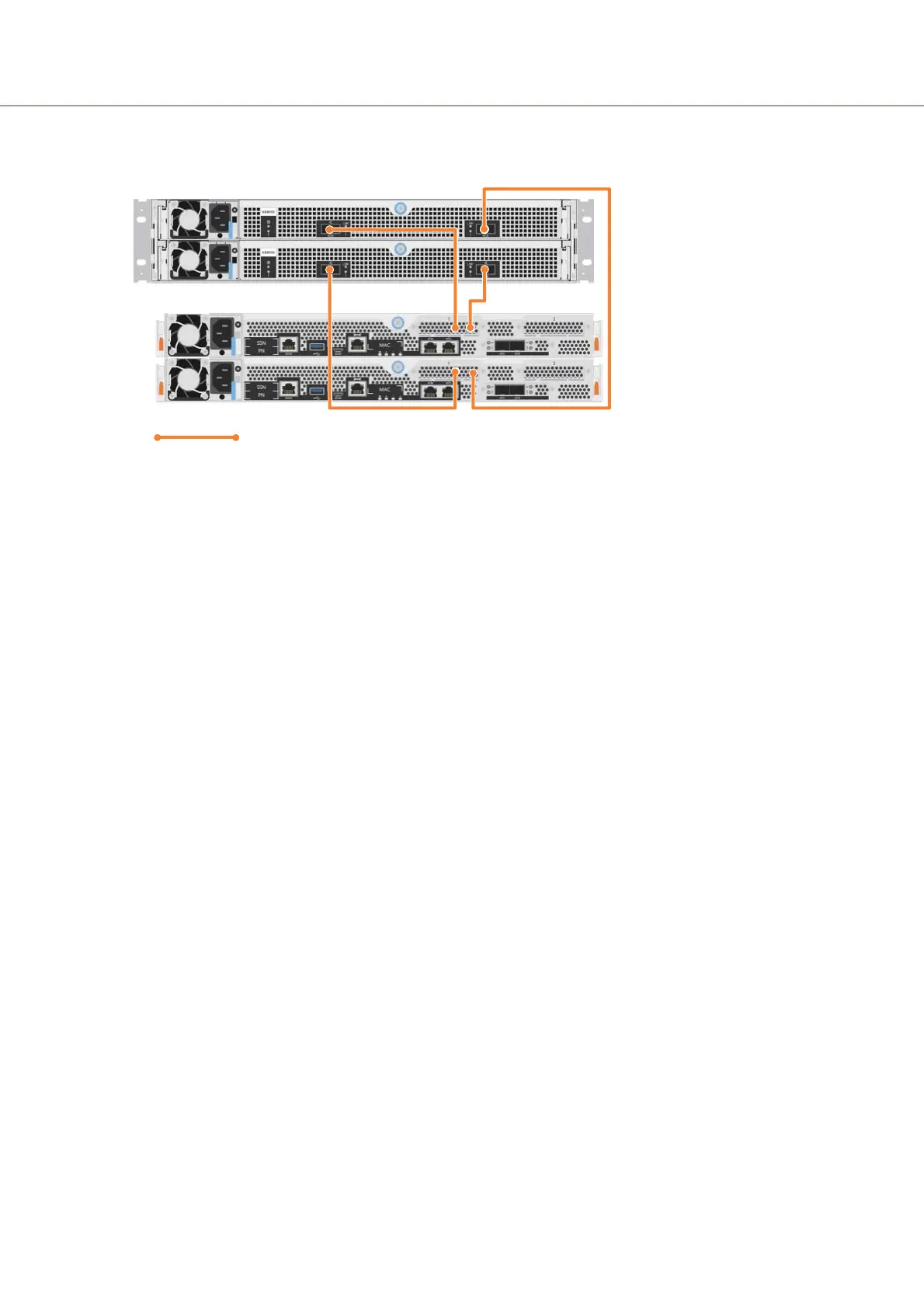

Figure 31 QSFP Cables between Shelves (When Connecting between the ETERNUS AX2200 and One NS224 Drive
Shelf)
● ETERNUS AX4100 and ETERNUS HX6100
Four (2 m) mini SAS HD cables are provided with each drive shelf that is supplied with the ordered controller
shelf.
The number and length of the mini SAS HD cables that are used varies depending on the installation location
of the racks and the connection destination.
- If the controller shelf and a drive shelf are installed in the same rack
Use four 2 m cables.
- If the controller shelf and a drive shelf are installed in adjacent racks
Use four 5 m cables.
- If drive shelves are installed one on top of the other in the same rack
Use two 0.5 m or 1 m cables.
- If drive shelves are installed in adjacent racks
Use two 5 m cables.
Controller shelf
NS224
2m cable
