1. ETERNUS AX/HX Installation
Outlet/Socket Specifications
Site Planning Guide41
● For Power Distribution Unit (16 Outlets) Connections

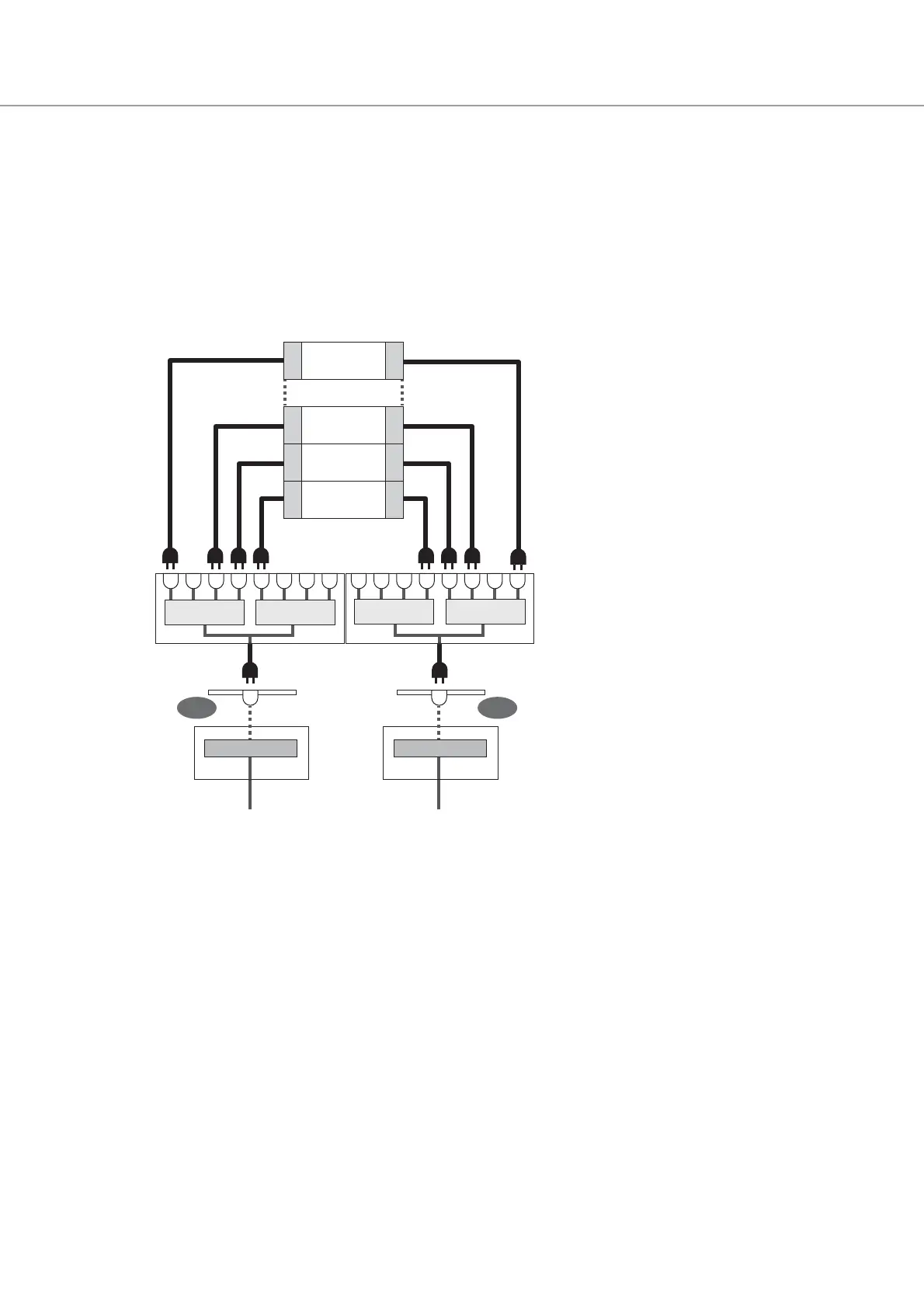

The following diagram shows an example of a power supply connection when a power distribution unit (16
outlets) is used.
- Current consumption of each outlet: 10A or less
- Current consumption of each CP (four outlets: OUT1 to OUT4, or OUT5 to OUT8): 12A or less
- Current consumption of each inlet cable: 24A or less
Figure 20 Example of a Power Supply Connection When a Power Distribution Unit (16 Outlets) Is Used
PSU: Power Supply Units
CP: Circuit Protectors
CP
CP
CP
CP
CP CP
...
PSU PSU
PSU PSU
Controller shelf
Drive shelf
ETERNUS
PSU PSU
Drive shelf
PSU PSU
Drive shelf
To power supply facilityTo power supply facility
Distribution
board
Distribution
board
Line 0 Line 1
Power distribution unit
