2. Rack Installation Specifications

Rack Installation Requirements

Site Planning Guide60

● Cables between Nodes and Switches (100GBASE Port Breakout Connection)

For the ETERNUS AX2200, split the 100GBASE port into four 25GBASE ports (breakout connections).

Two cables are required for every two HA pairs (four nodes).

Two cables are also required for a single HA pair (two nodes). In this case, half the terminals of the breakout

cables are left unconnected.

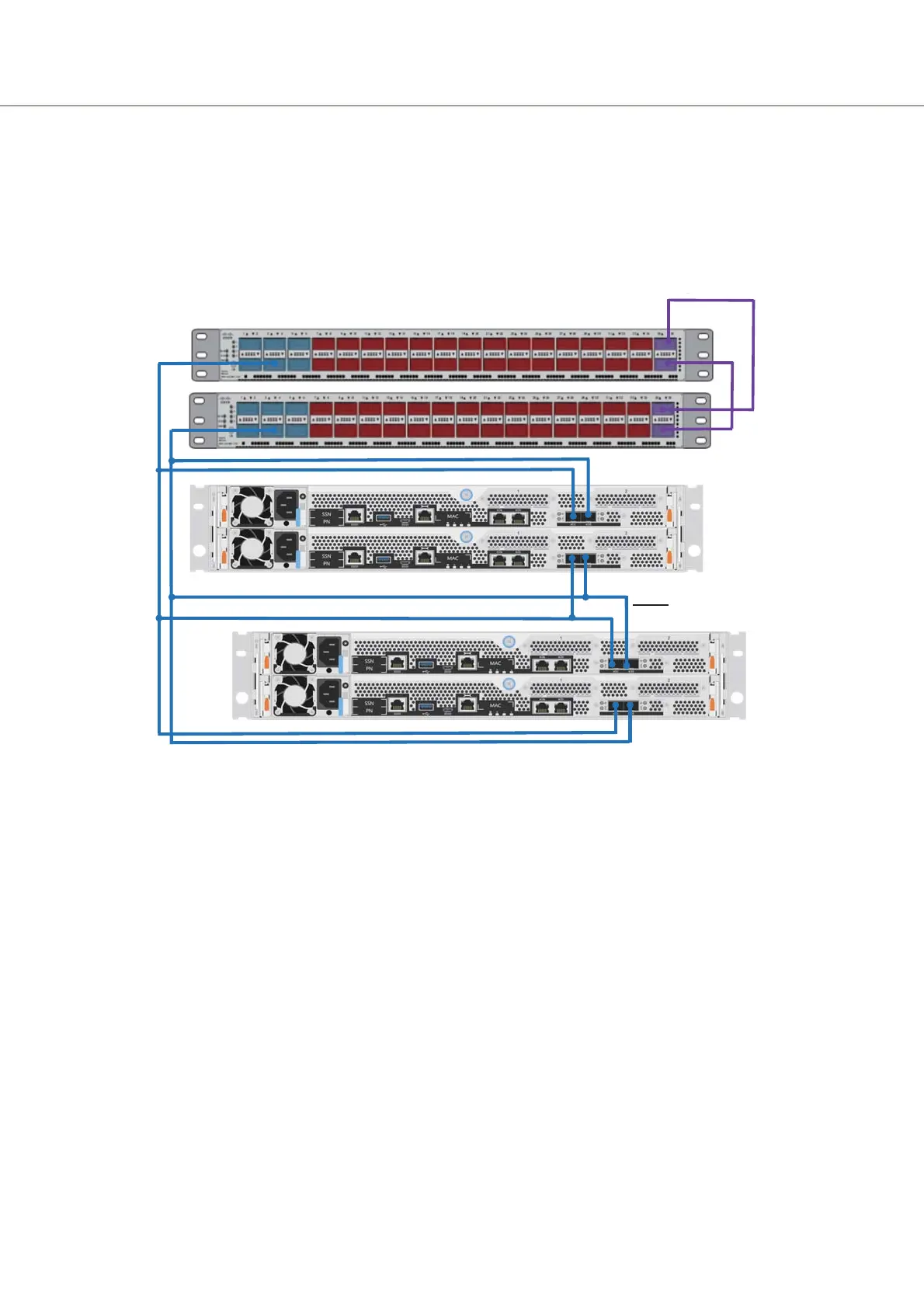

Figure 43 Two-Node Configuration Using Cluster Switches (Nexus 9336C) (for 100GBASE Port Connections)

Cables between nodes and switches

Node
