1. ETERNUS AX/HX Installation

ETERNUS AX/HX Dimensions

Site Planning Guide21

● NS224 Drive Shelf

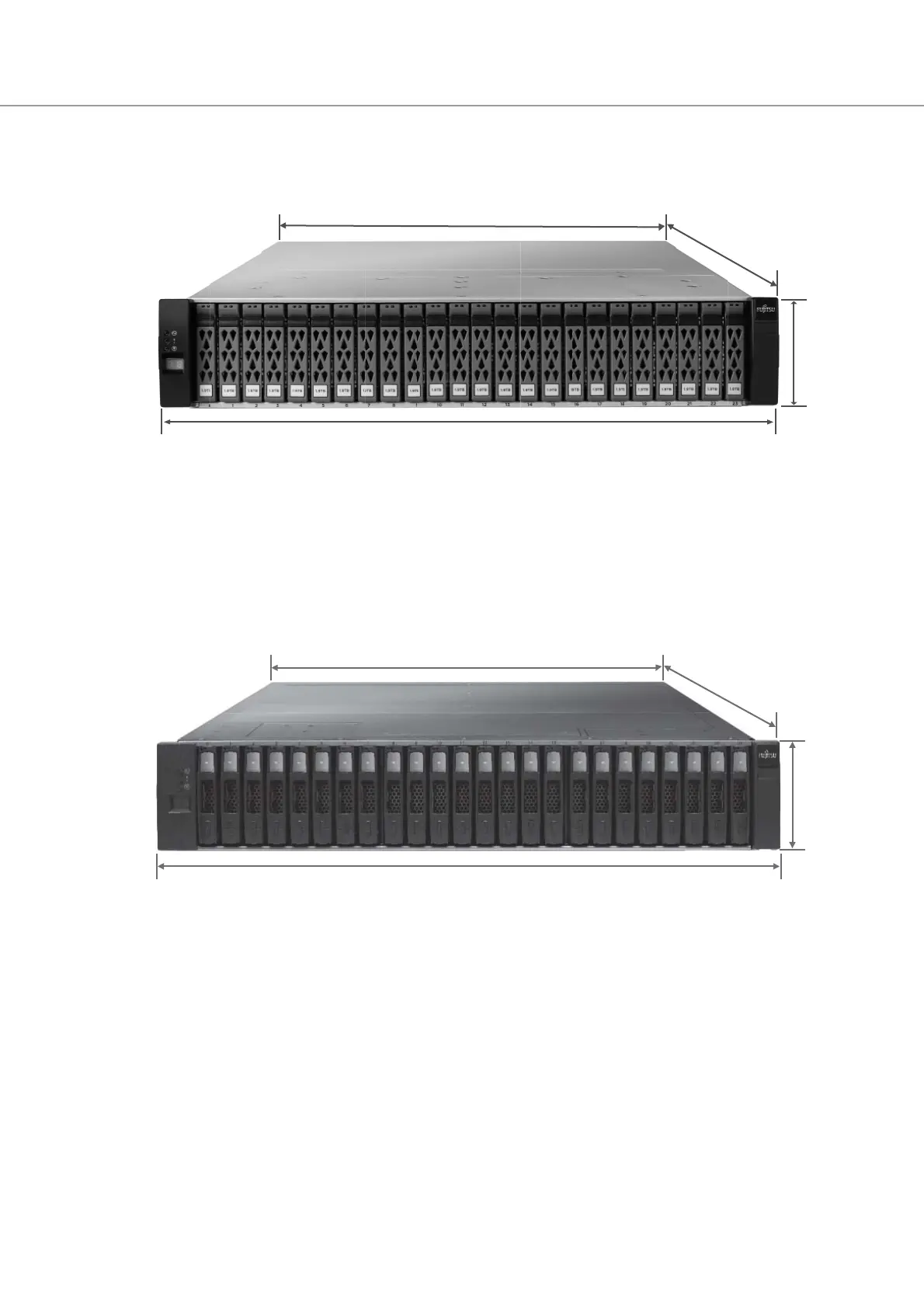

Figure 5 NS224 2.5" Type Drive Shelf Dimensions

■ Drive Shelf Dimensions

The diagrams below show the dimensions of a drive shelf. The dimensions are approximations and do not include

protruding parts.

● DS224C 2.5" Type Drive Shelf

Figure 6 DS224C 2.5" Type Drive Shelf Dimensions

447 mm (without the flanges)

483 mm (with the flanges)

87 mm

543 mm

447 mm (without the flanges)

480 mm (with the flanges)

85 mm

484 mm
