1. ETERNUS AX/HX Installation

ETERNUS AX/HX Dimensions

Site Planning Guide20

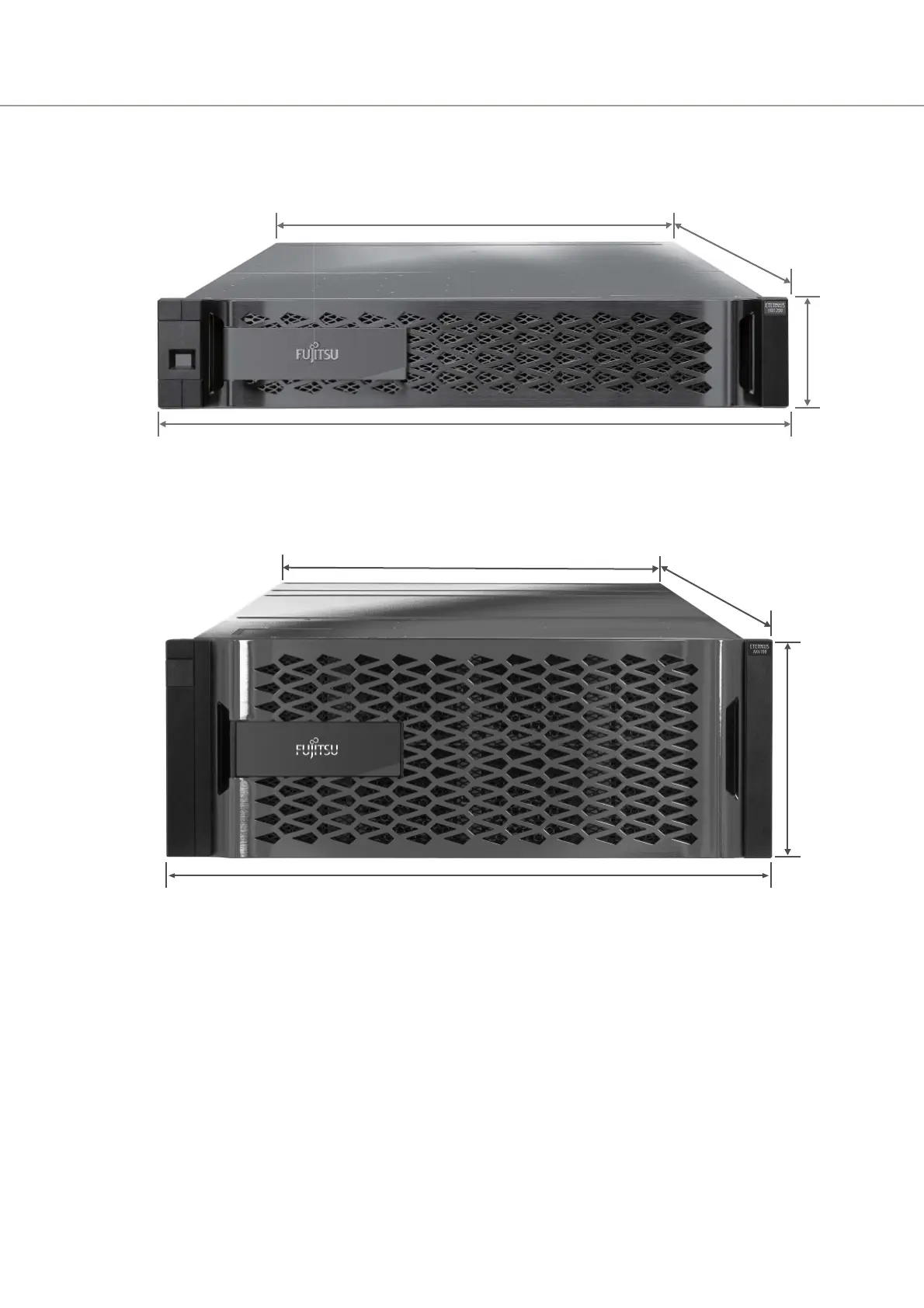

● 3.5" Type Controller Shelf

Figure 3 3.5" Type Controller Shelf Dimensions (ETERNUS HX2100)

● 4U Controller Shelf

Figure 4 4U Controller Shelf Dimensions (ETERNUS AX4100, HX6100)

447 mm (without the flanges)

480 mm (with the flanges)

87 mm

508 mm

447 mm (without the flanges)

483 mm (with the flanges)

175 mm

828 mm

Table of Contents2
ETERNUS AX/HX Installation9
Installation Specifications9
Eternus Ax1100/Ax2100/Ax22009
Table 1 Installation Specifications (ETERNUS AX1100/AX2100/AX2200)9
Eternus Ax410011
Table 2 Sound Level of the Drive Shelf11
Table 3 Efficiency and Power Factor of the Power Supply Unit11
Table 4 Installation Specifications (ETERNUS AX4100)11
Eternus Hx2100/Hx220013
Table 5 Sound Level of the Drive Shelf13
Table 6 Efficiency and Power Factor of the Power Supply Unit13
Table 7 Installation Specifications (ETERNUS HX2100/HX2200)13
Table 8 Sound Level of the Drive Shelf15
Table 9 Efficiency and Power Factor of the Power Supply Unit15
Eternus Hx610016
Table 10 Installation Specifications (ETERNUS HX6100)16
Table 11 Sound Level of the Drive Shelf17
Table 12 Efficiency and Power Factor of the Power Supply Unit17
19-Inch Racks18
Table 13 19-Inch Rack Installation Specifications18
Table 14 19-Inch Wide Rack Installation Specifications18
ETERNUS AX/HX Dimensions19
Figure 1 2.5" Type Controller Shelf Dimensions (ETERNUS AX1100/AX2100, ETERNUS HX2200)19
Figure 2 2.5" Type Controller Shelf Dimensions (ETERNUS AX2200)19
Figure 3 3.5" Type Controller Shelf Dimensions (ETERNUS HX2100)20
Figure 4 4U Controller Shelf Dimensions (ETERNUS AX4100, HX6100)20
Figure 5 NS224 2.5" Type Drive Shelf Dimensions21
Figure 6 DS224C 2.5" Type Drive Shelf Dimensions21
Figure 7 DS212C 3.5" Type Drive Shelf Dimensions22
Figure 8 DS460C 60-Drive Type Drive Shelf Dimensions22
Rack Dimensions23
Figure 9 19-Inch Rack Dimensions23
Figure 10 19-Inch Wide Rack Dimensions24
Figure 11 Anti-Tipping Stabilizer Dimensions25
Compliance Standards26
Package Size27
Table 15 Package Size27
Installation Area28
Figure 12 Installation Area and Service Area (When the Lifter Is Not Used)28
Figure 13 Installation Area and Service Area (When the Lifter Is Used)29
Installation Environment30
Air Conditioning30
Installation Methods31
Figure 14 Floor Dimensions of the Rack (of 19-Inch Racks)31
Load Bearing Capacity for Floors32
Figure 15 Floor Dimensions of the Rack (of 19-Inch Wide Racks)32
Outlet/Socket Specifications33
Table 16 Maximum Current Consumption of each Power Cord33
Specifications for Optional Power Supply Products34
Table 17 Specifications for AC250V Power Cords (IEC60320 C13 - NEMA L6-15P)34
Table 18 Specifications for AC250V Power Cords (IEC60320 C19 - C20)34
Table 19 Specifications for AC250V Power Cords (IEC60320 C19 - NEMA L6-20P)34
Table 20 Specifications for AC100V Power Cords (IEC60320 C13 - NEMA 5-15P)35
Table 21 Specifications for AC100V/AC250V Power Cords (IEC60320 C13 - C14)35
Figure 16 Power Distribution Unit (AC24A/200V, 2U, 16 Outlets)36
Table 22 Specifications for Power Distribution Units (AC24A/200-240V, 2U, 16 Outlets)36
Figure 17 Power Distribution Unit (AC24A/200V, 2U, Six Outlets)37
Table 23 Specifications for Power Distribution Units (AC24A/200-240V, 2U, Six Outlets)37
Table 24 Specifications for Power Distribution Units (AC24A/200-240V, 2U, Six Outlets) (for Korea)37
Required Number of Outlets/Sockets38
Circuit Protectors38
Table 25 Required Conditions for Distribution Board Circuit Protectors38
Figure 18 Breaking Characteristics of Distribution Board Circuit Protectors39
Figure 19 Example of a Power Supply Connection When a Power Distribution Unit (Six Outlets) Is Used40
Figure 20 Example of a Power Supply Connection When a Power Distribution Unit (16 Outlets) Is Used41
Figure 21 Example of a Power Supply Connection When a Power Distribution Unit (16 Outlets) Is Used with the ETERNUS AX4100 or the ETERNUS HX610042
Figure 22 Example of a Power Supply Connection When a Power Distribution Unit Is Not Used42
Input Power Supply Lines43
Figure 23 Dual-Line Power Supply (When Connecting to Power Sockets)43
Figure 24 Single-Line Power Supply (When Connecting to Power Sockets)43
Figure 25 Single-Line Power Supply (When Connecting to a UPS Unit)43
Rack Installation Specifications45
Rack Installation Requirements45
Placement in the Rack45
Table 26 Shelf Installation Order45
Table 27 Priority of the Drive Shelf Types Connected to the AX410045
Figure 26 Example Rack Installation: ETERNUS AX1100/AX2100/AX2200, ETERNUS HX2100/HX220046
Table 28 Priority of the Drive Shelf Types Connected to the HX610046
Figure 27 Example Rack Installation: ETERNUS AX4100, ETERNUS HX610047
Cable Connection48
Figure 28 Mini SAS HD Cables between Shelves (for a Single Controller Shelf)48
Figure 29 Mini SAS HD Cables between Shelves (When Connecting a 4U Drive Shelf)49
Figure 30 Mini SAS HD Cables between Shelves (When Connecting Multiple Shelves)50
Figure 31 QSFP Cables between Shelves51
Shelf)51
DS212C Drive Shelves)52
Figure 32 Mini SAS HD Cables between Shelves53
Figure 33 Mini SAS HD Cables between Shelves (When Adding Two DS212C Drive Shelves to the Configuration in Figure 32)53
Figure 34 Mini SAS HD Cables between Shelves54
NS224 Drive Shelf)54
Figure 35 Mini SAS HD Cables between Shelves54
Configuration in Figure 34)54
Figure 36 Direct Attach Cable Connection55
Figure 37 Connecting Cluster Switches with the Cables Used between Switches55
Figure 38 Two-Node Configurations Using Cluster Switches (Nexus 3132 VXLAN) (for 10GBASE Port Connections)56
Figure 39 Two-Node Configurations Using Cluster Switches (Nexus 3232C) (for 10GBASE Port Connections)56
Connections)56
Figure 40 Four-Node Configuration Using Cluster Switches (Nexus 9336C) (for 40GBASE Port Connections)57
Figure 42 Two-HA Pair (Four-Node) Configuration Using Cluster Switches (Nexus 3232C)59
Connections)59
Figure 43 Two-Node Configuration Using Cluster Switches (Nexus 9336C) (for 100GBASE Port Connections)60
Figure 44 Two-Node Configuration Using Cluster Switches (Nexus 9336C) (for 100GBASE Port Connections)61
Figure 45 Four-Node Configuration Using Cluster Switches (Nexus 3232C) (for 100GBASE Port Connections)62
Figure 46 Two-Node Configuration Using Cluster Switches (Nexus 3232C) (for 100GBASE Port Connections)63
Installable Racks64
Fujitsu Racks64
Table 29 Installable Racks64
Non-Fujitsu Racks65
Table 30 Size for Mounting Holes (for Rack Mount Kits Ordered after October 1, 2021)65
Figure 47 Unit Installation Area66
Table 31 Specifications for the Unit Installation Area66
