RX300 S2 Options Guide 103
Converting from low-profile to standard PCI Slots Removing lp slot cage

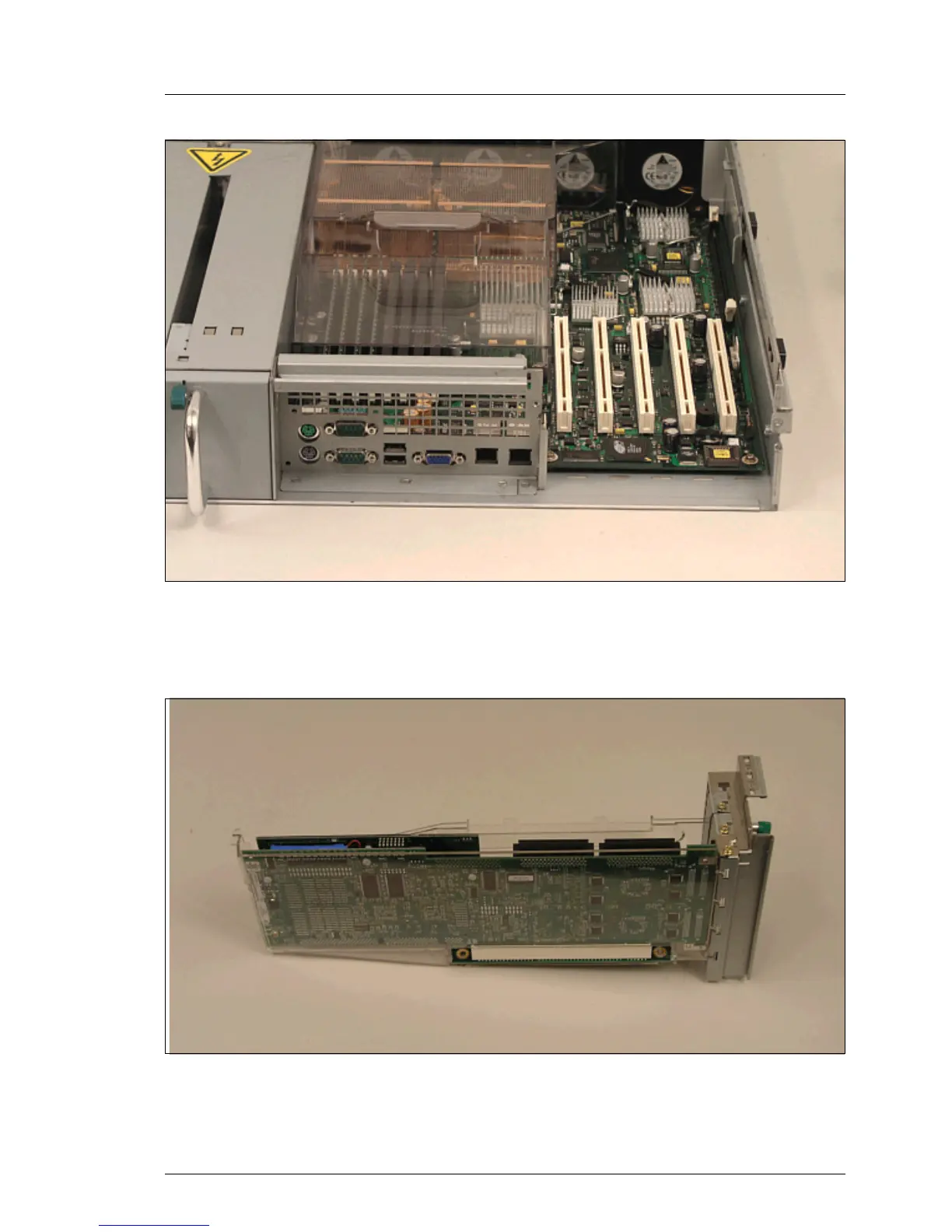

Figure 86: Without slot cage
Ê Equip the riser card as described in part “Installing the PCI controller in the
riser card” on page 66.
Figure 87: Assembled Riser card
