RX300 S2 Options Guide 87
12 Parallel interface
V CAUTION!
Observe the safety instructions in the chapter „Safety notes“ on page 15.
12.1 Installing a parallel interface
Ê Open the server as described in the chapter „Preparation“ on page 21.
I For standard configuration the parallel interface is to install into a low-
profile slot cover. If the optional riser board is used, a standard slot cover
is necessary.
Parallel interface in standard configuration

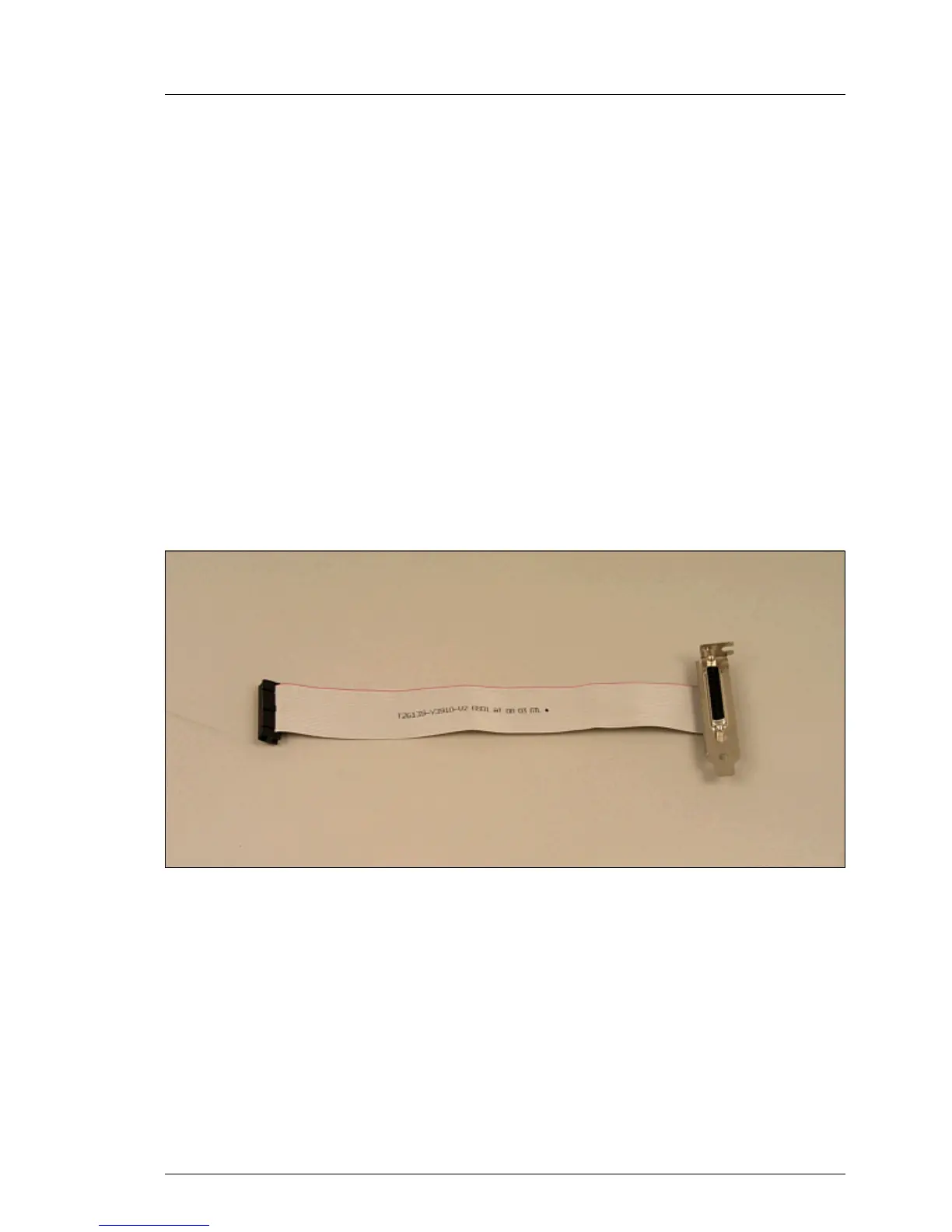

Figure 67: external parallel interface with low-profile slot cover
