66 Options Guide RX300 S2
Installing the PCI controller in the riser card PCI slots
9.2 Installing the PCI controller in the riser card
Ê Open the server as described in the chapter „Preparation“ on page 21.

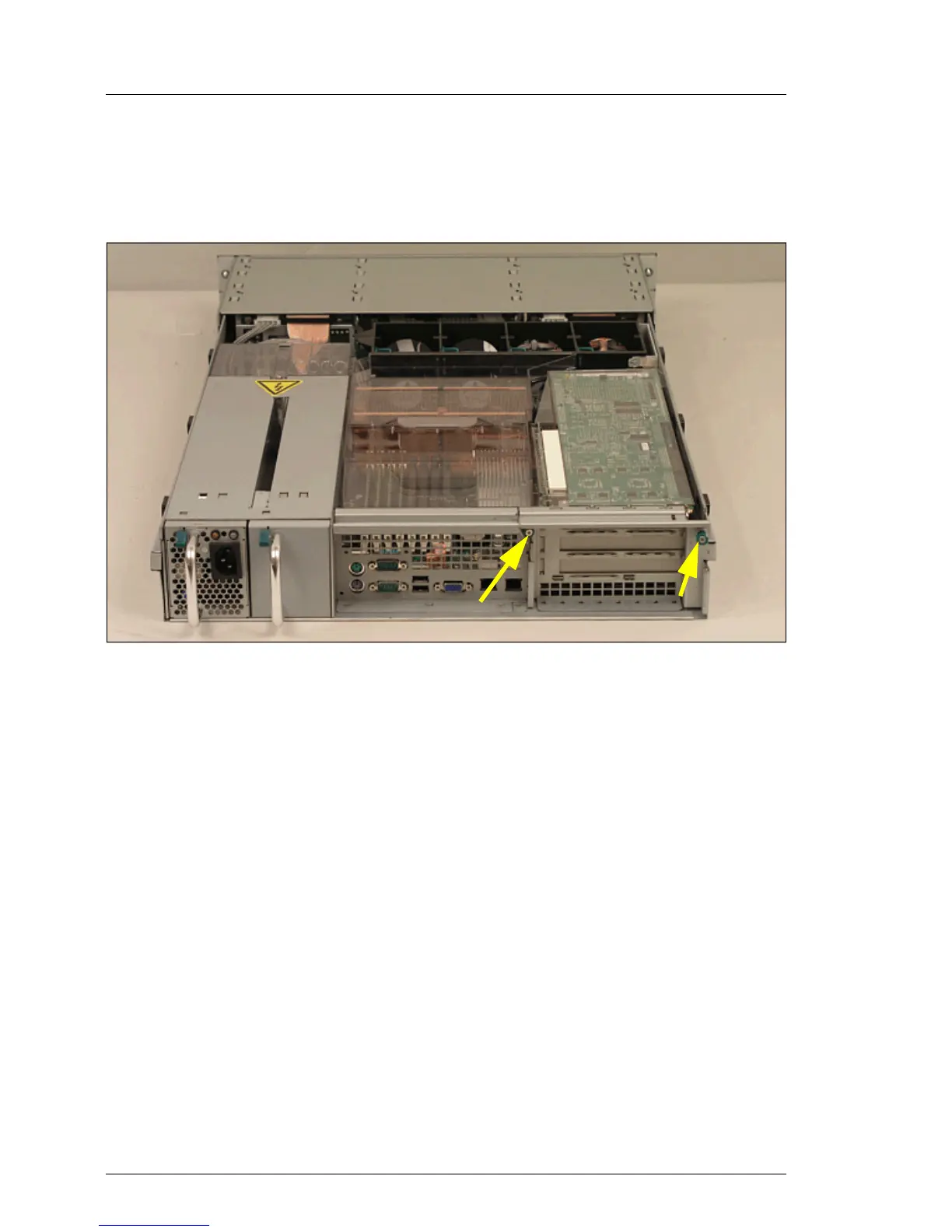

Figure 43: Removing the riser card
Ê Open the knurled screws.
V CAUTION!!
Keep the rear cover of the PCI slot for future use. If you remove the
controller again and do not replace it with a new one, the rear cover
must be reinstalled to comply with EMC regulations and to satisfy
cooling requirements and fire protection measures.
