RX300 S2 Options Guide 65
PCI slots Installing a PCI controller in a low-profile slot

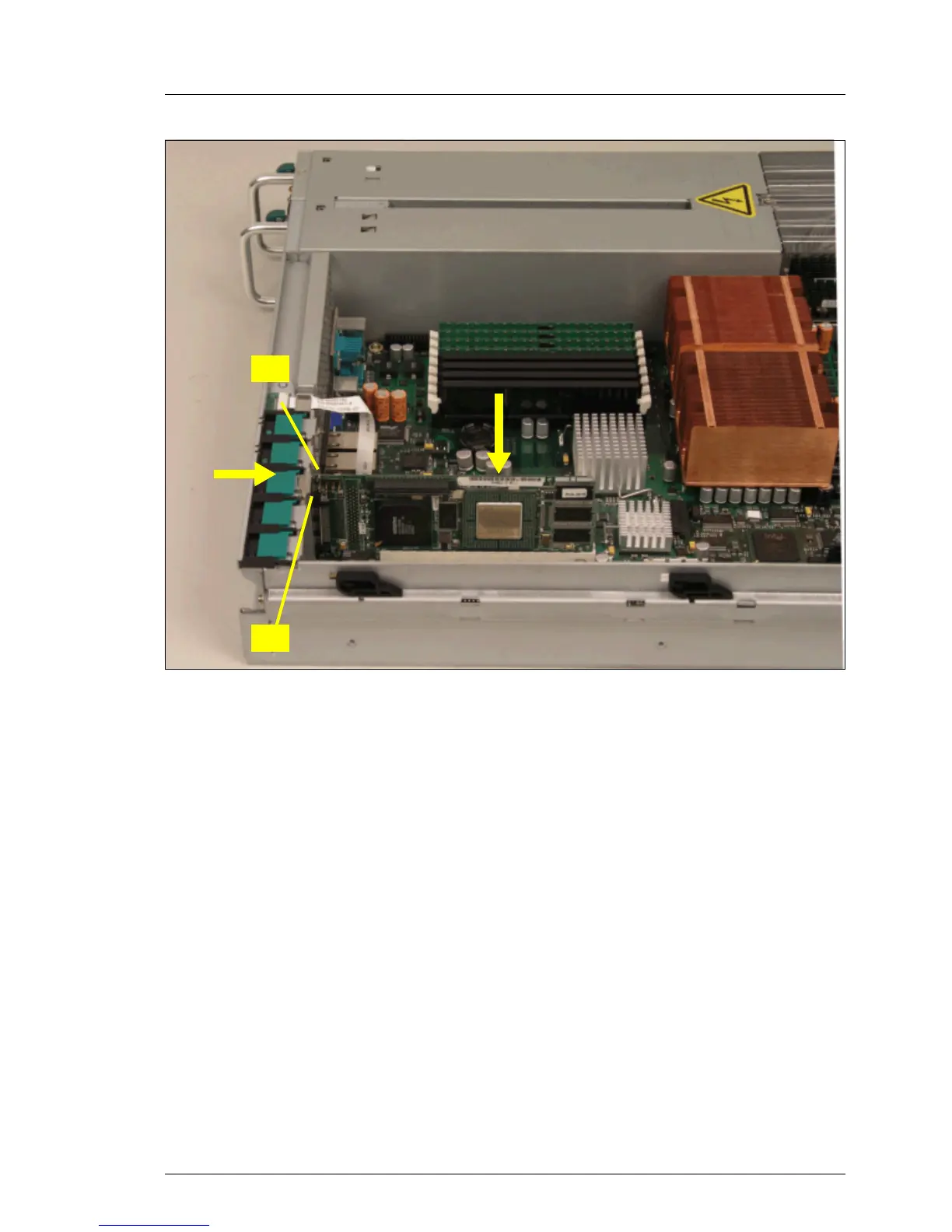

Figure 42: Inserting controller
Ê Install the controller in the PCI slot and press it carefully into the associated
plug-in location on the system board (1). Ensure that the rear cover fits into
the recesses (a).
Ê Close the green PCI board holder (2).
Ê If required, connect the cables to the controller and other components.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter „Completion“ on page 107.
