Fujitsu Primergy RX300 S2 Options Guide

72 Options Guide RX300 S2
RemoteView Service Board S2 LP RemoteView components
10.2 RemoteView Service Board S2 LP
I How to install/remove and configure the RSB S2 LP is described in detail
in the “RemoteView Service Board S2/ S2 LP 1.x, Mounting and Setting
Up” manual.
Preferred mounting locations for RSB S2 LP are PCI slots 3, 4, and 5 in the
standard configuration with only low profile PCI Slots. To configure ther RSB
with a riser card you have to use RSB S2 LP 3HU. Any of the three slots can be
used.
Ê Open the server as described in the chapter „Preparation“ on page 21.

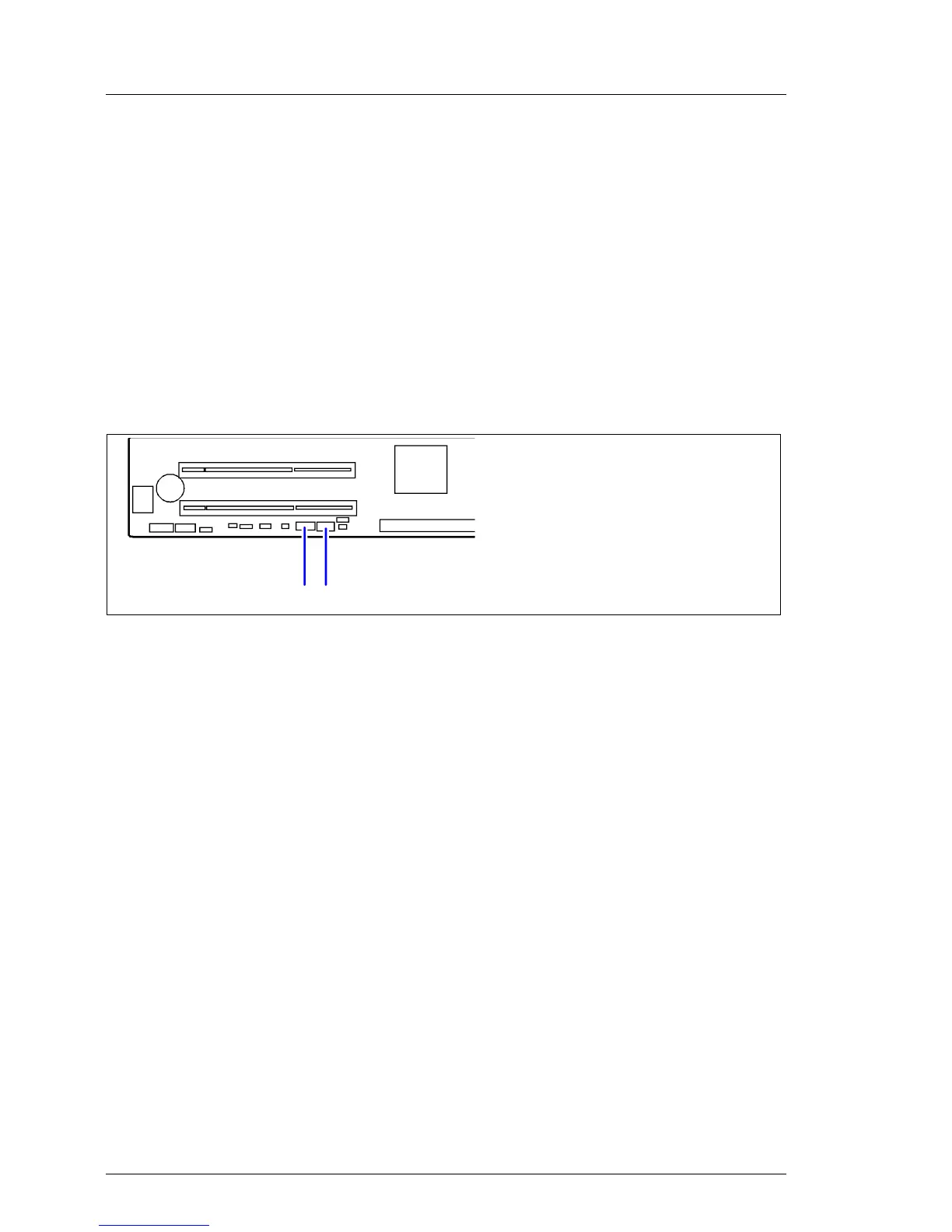

Figure 48: Connecting cables to the system board
Ê Connect the data cable to the connector IPMB (1) and the power cable to the
connector KVM Power (2) on the system board.
Ausschnitt /section of D1889/D2089
12

Fujitsu Primergy RX300 S2 Specifications

General

Processor Sockets	2
Chipset	Intel 5000P
Network	2 x Gigabit Ethernet
Form Factor	2U Rackmount
Processor	Intel Xeon 5000/5100/5300 series
Storage	SAS or SATA HDD 2.5"/3.5"
RAID Support	Optional RAID controller
Operating System Support	Windows Server, Linux
Power Supply	Redundant power supply optional
