RemoteView components RemoteView Service Board S2 LP

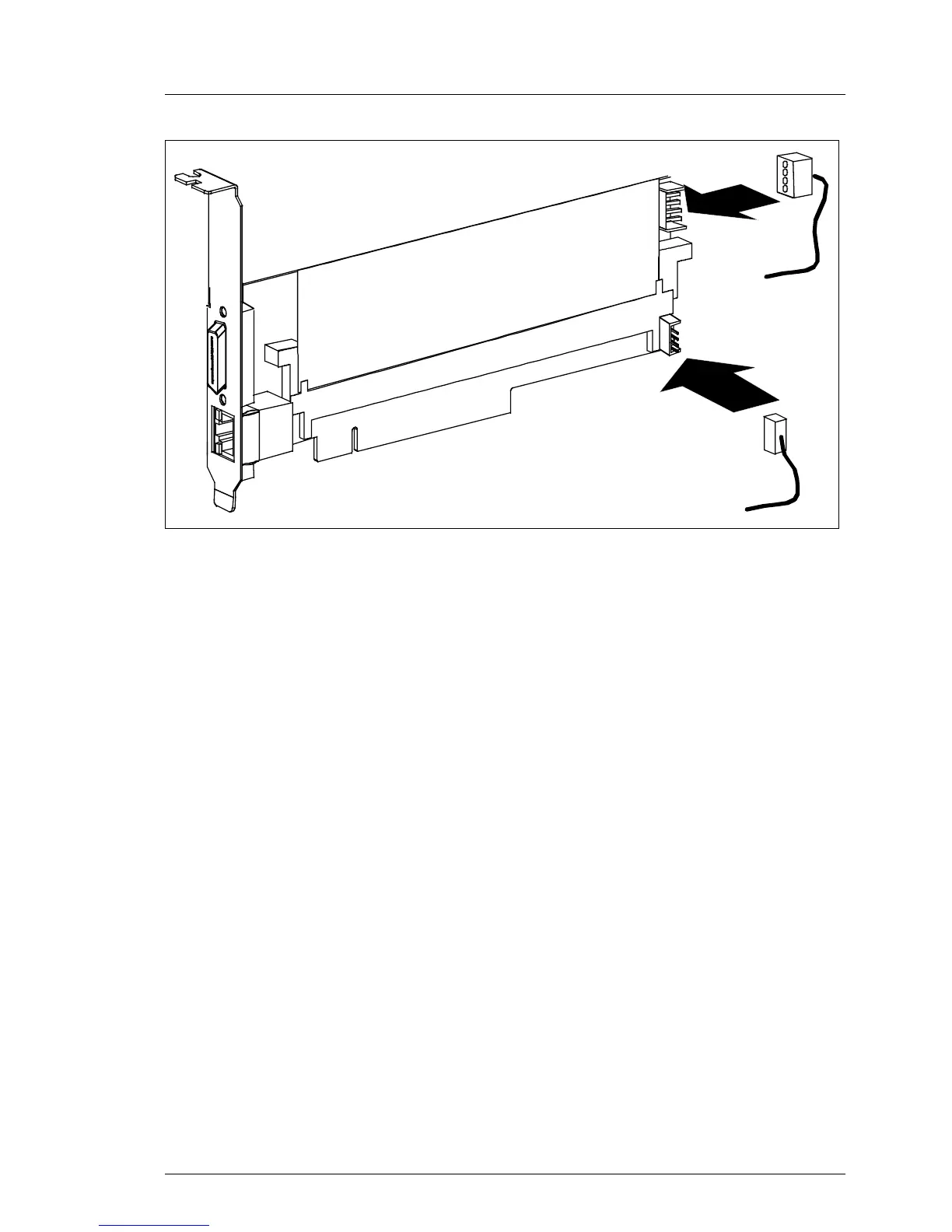

Figure 49: Connecting cables to the system board
Ê Connect the power cable (1) and the data cable (2) to the RSB S2 LP.
Ê Install the RSB S2 LP into PCI slot 3, 4 or 5 (described in „Installing a PCI
controller in a low-profile slot“ on page 64) and RSB S2 LP 3 HU into PCI
slot 6, 7or 8 (described in „Installing the PCI controller in the riser card“ on
page 66) respectively.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter „Completion“ on page 107.
2
1
