RX300 S2 Options Guide 75
11 External SCSI interface
V CAUTION!
Observe the safety instructions in the chapter „Safety notes“ on page 15.
11.1 Installing the external SCSI interface
Ê Open the server as described in the chapter „Preparation“ on page 21.
I For standard configuration the external SCSI interface is to install with a
low profile slot cover. If the optional riser card is used, a standard slot
cover is necessary.
External SCSI interface in standard configuration

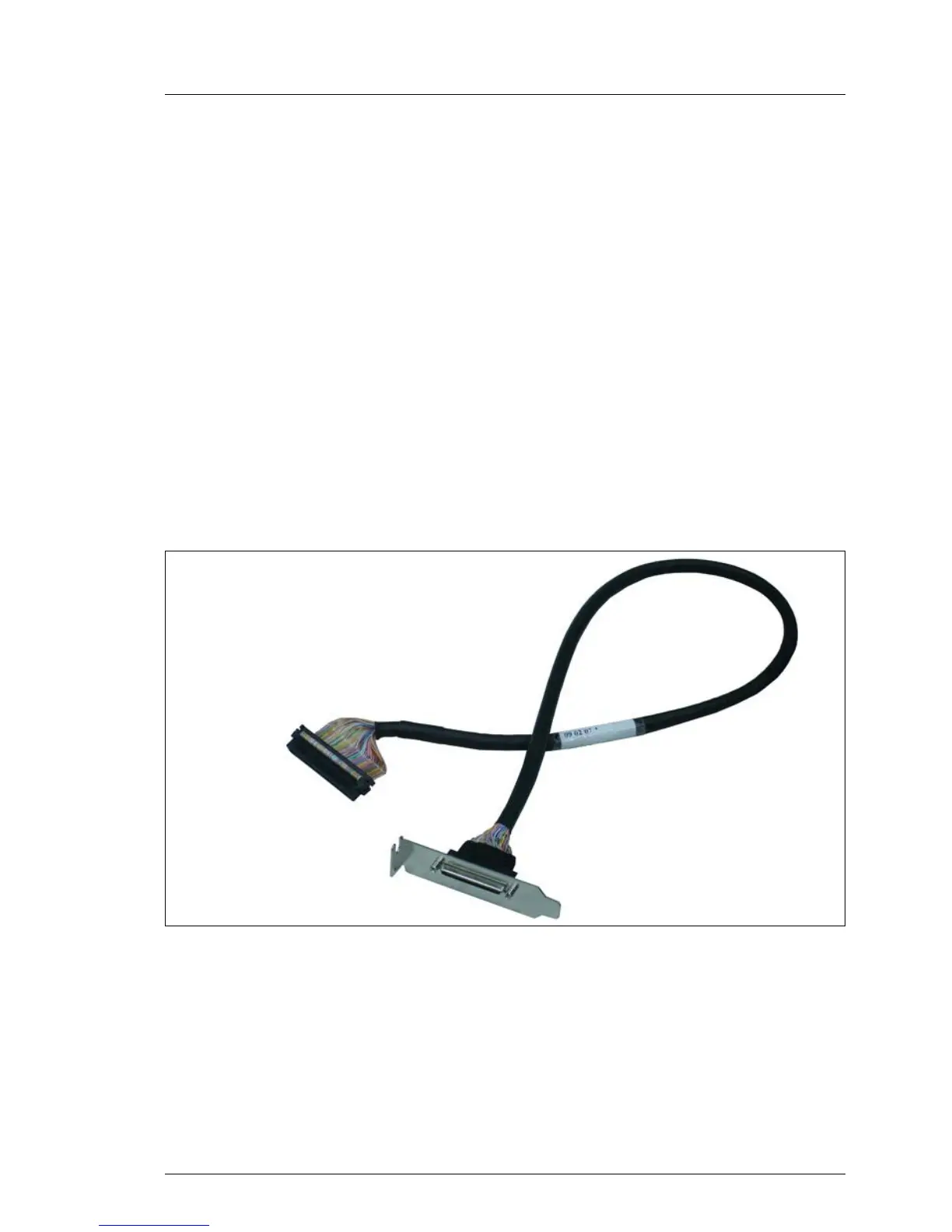

Figure 50: external SCSI cable with low-profile slot cover.
