Fujitsu Primergy RX300 S2 Options Guide

RX300 S2 Options Guide 51
Accessible drives Installing a LocalView module
8.2 Installing a LocalView module
The LocalView module is an optional extra for the servers of the PRIMERGY
series. On the display panel of the LocalView module you can read status
messages directly on the server. These status messages provide information on
the system and notify you of hardware faults (e.g. fan failure, CPU over voltage,
etc.).
The LocalView module can be pulled out like a sliding drawer. You can also
angle the LocalView display panel downward.
The LocalView module can be installed in the 3,5/0,5 inch bay of the FD drive.

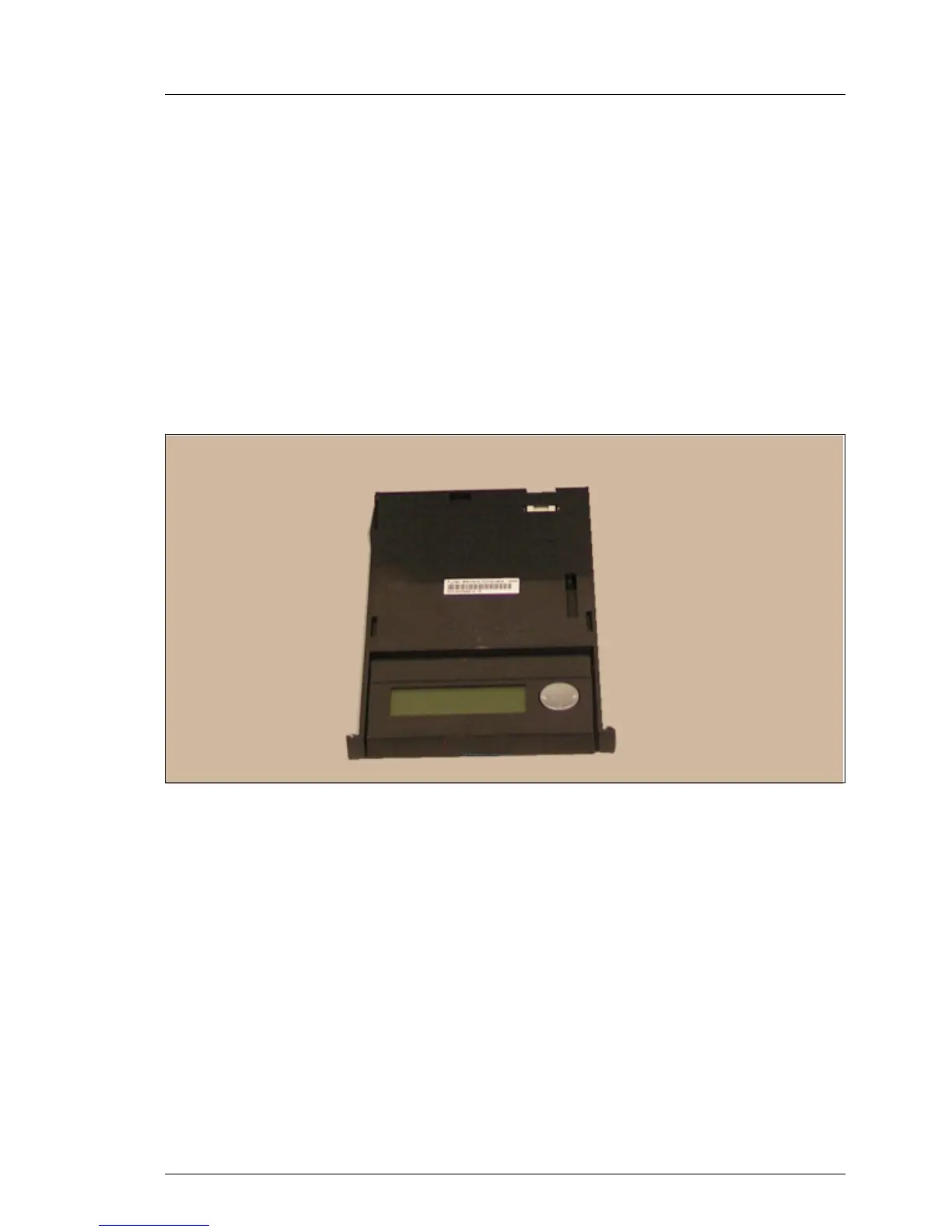

Figure 29: LocalView module
Ê Open the server as described in the chapter „Preparation“ on page 21.
Ê If a FD dummy module is installed it must be removed (see “Removing a FD
drive dummy module” on page 46).

Fujitsu Primergy RX300 S2 Specifications

General

Processor Sockets	2
Chipset	Intel 5000P
Network	2 x Gigabit Ethernet
Form Factor	2U Rackmount
Processor	Intel Xeon 5000/5100/5300 series
Storage	SAS or SATA HDD 2.5"/3.5"
RAID Support	Optional RAID controller
Operating System Support	Windows Server, Linux
Power Supply	Redundant power supply optional
