98 Options Guide RX300 S2
Installing 2nd SCSI backplane Converting from 1- to 2-channel version
13.2 Installing 2nd SCSI backplane

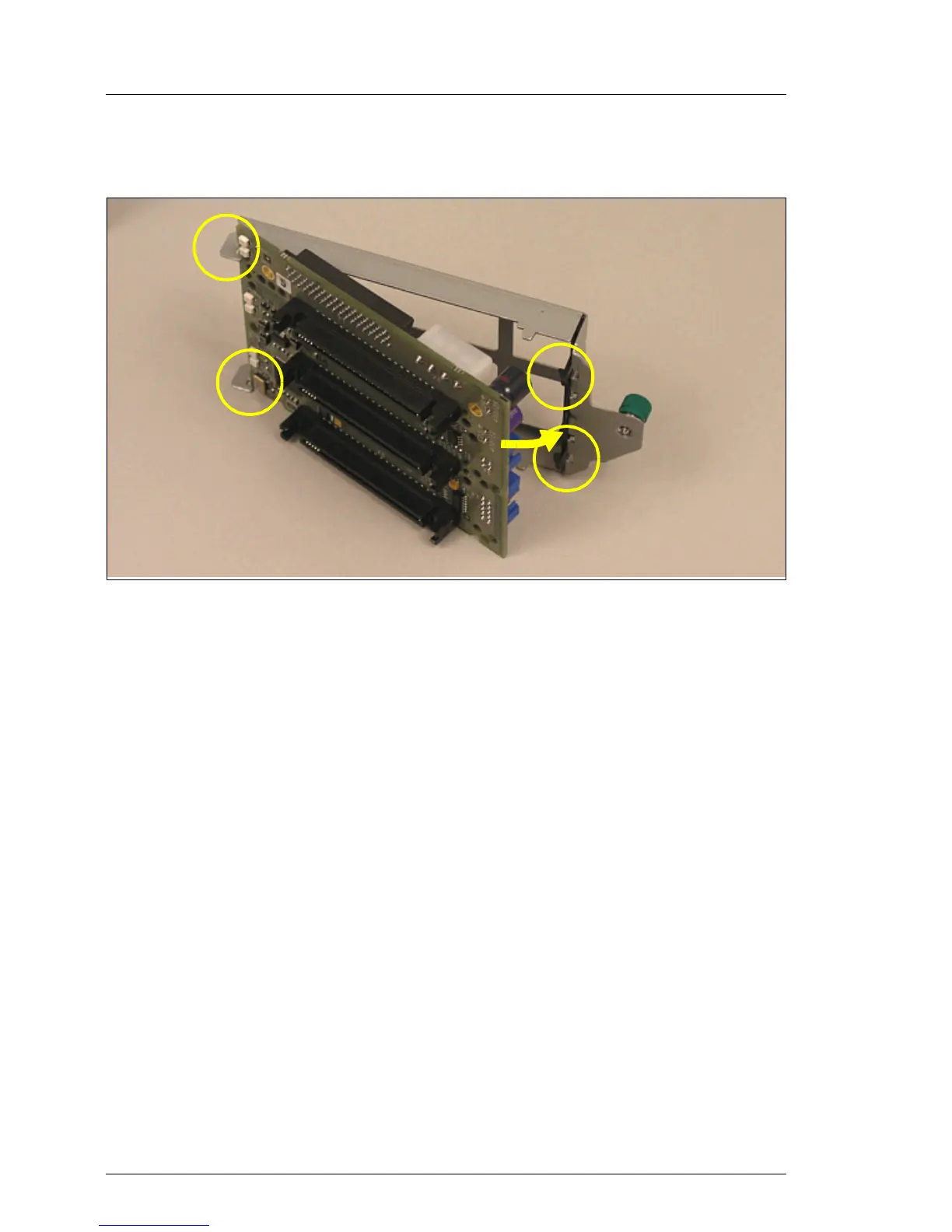

Figure 81: Inserting the 2nd SCSI backplane (2-channel) into the SCSI backplane holder
Ê Insert the 2-channel SCSI backplane in the hooks of the SCSI backplane
holder (1).
Ê Press the SCSI backplane down.
Ê The backplane must engage under the green snap-fits (2).
1
2
