RX300 S2 Options Guide 99
Converting from 1- to 2-channel version Installing 2nd SCSI backplane

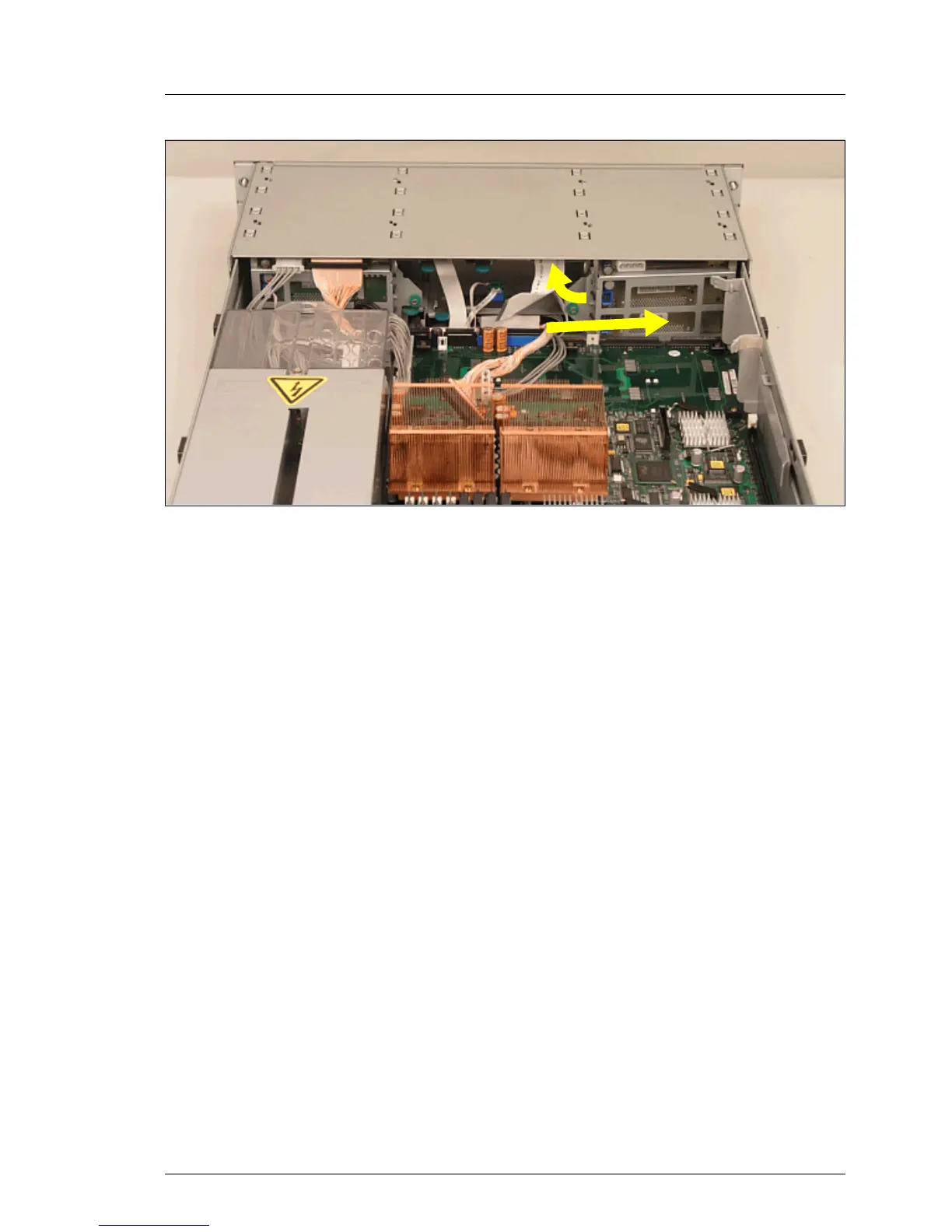

Figure 82: Inserting second SCSI backplane
Ê Insert the assembled SCSI backplane holder. Be careful with the hooks. The
angle may not be too great.
Ê Close the holder.
Ê Fasten it with the knurled screw.
