88 Options Guide RX300 S2
Installing a parallel interface Parallel interface

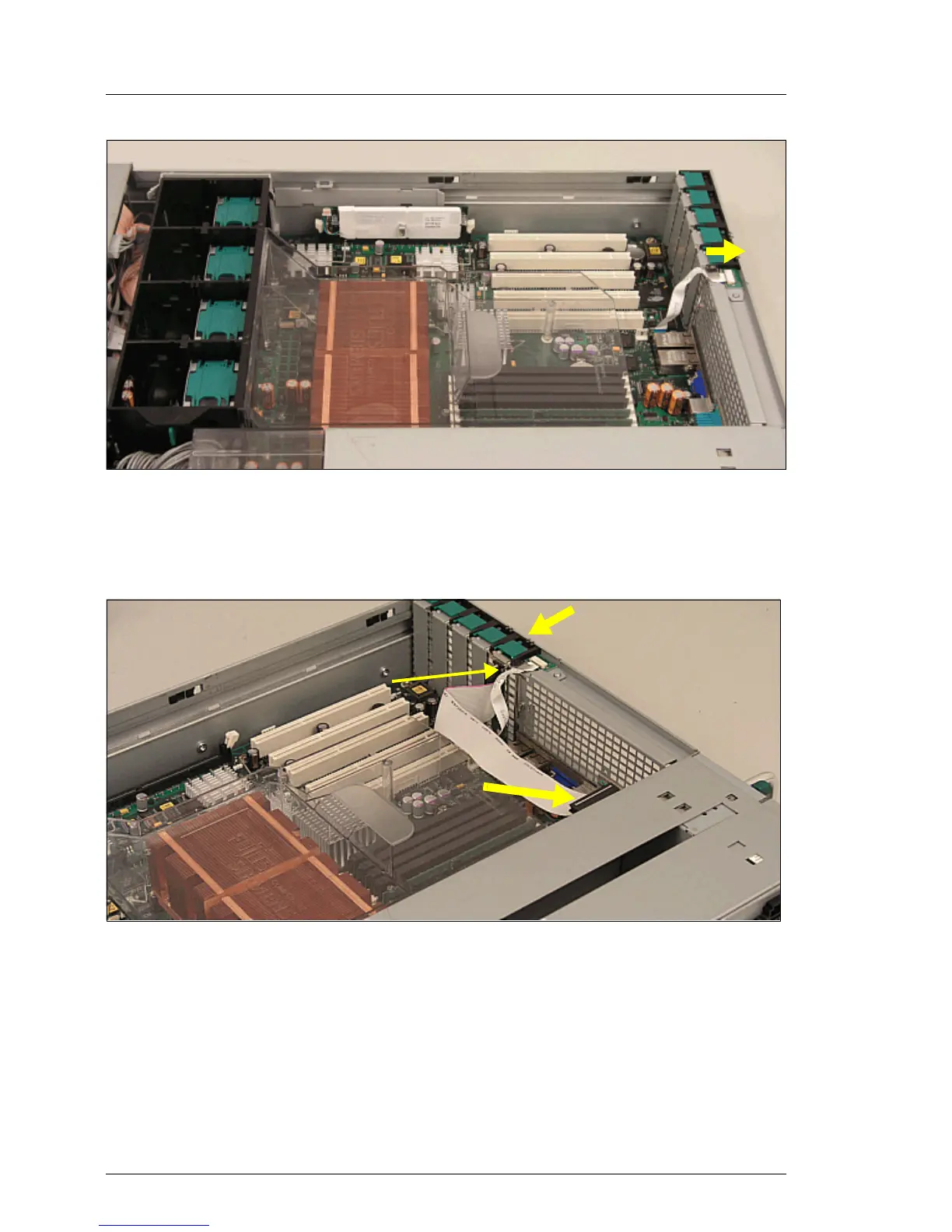

Figure 68: Removing the slot cover
Ê Push the PCI board holder backward.
Ê Remove the slot cover.
Figure 69: Routing the cable
Ê Insert the slot cover with the parallel interface.
Ê Connect the cable to the system board (see arrow).
Ê Route the cable as shown in the picture directly upon the system board.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter „Completion“ on page 107.
