RX300 S2 Options Guide 89
Parallel interface Installing a parallel interface
External Parallel-interface in slot cover with standard height

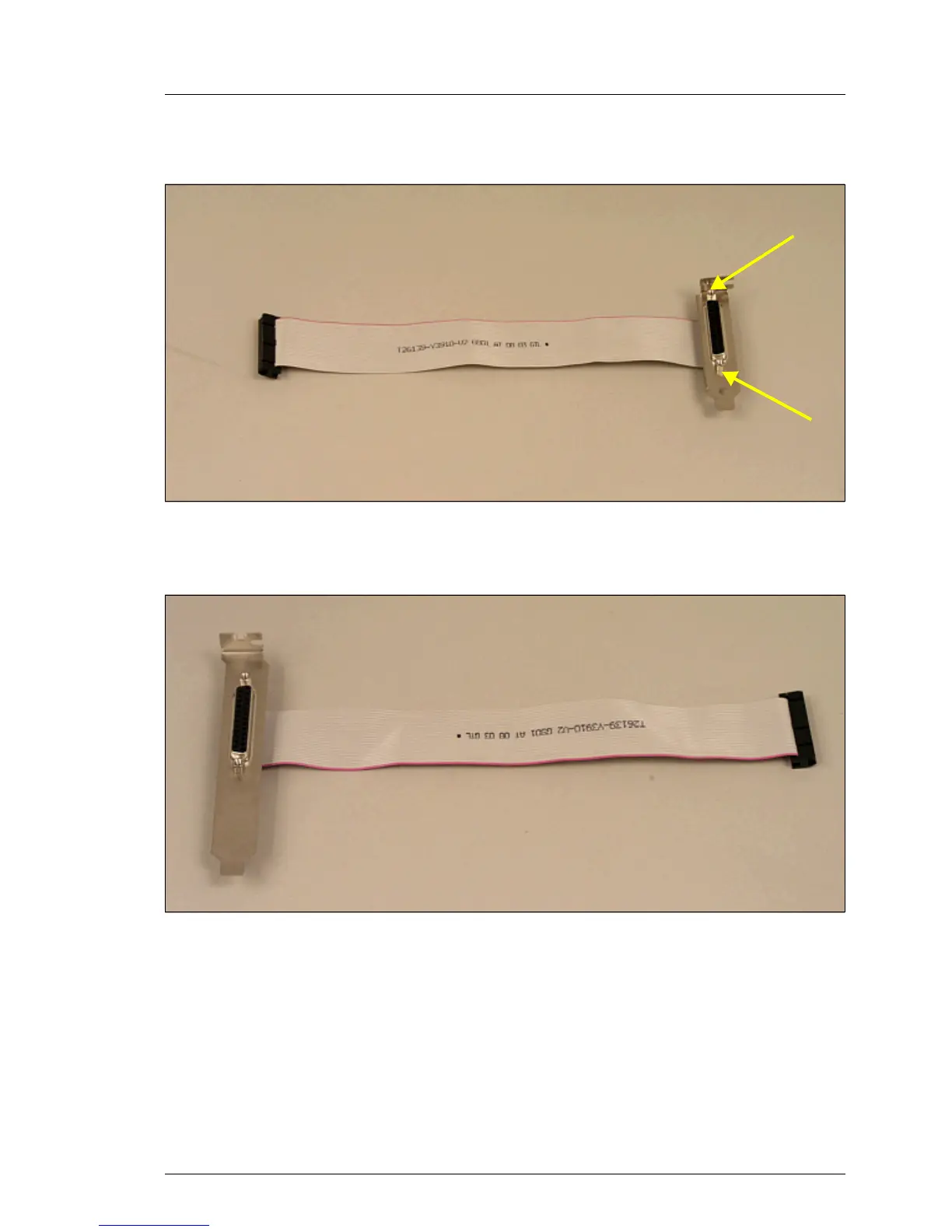

Figure 70: External parallel interface with low-profile slot cover
Ê Remove the two screws.
Figure 71: External parallel interface with standard slot cover
Ê Insert the connector of the parallel interface in the slot cover.
Ê Fix it with the two screws.
