Fujitsu Primergy RX300 S2 Options Guide

RX300 S2 Options Guide 29
Main memory Upgrading/replacing the main memory

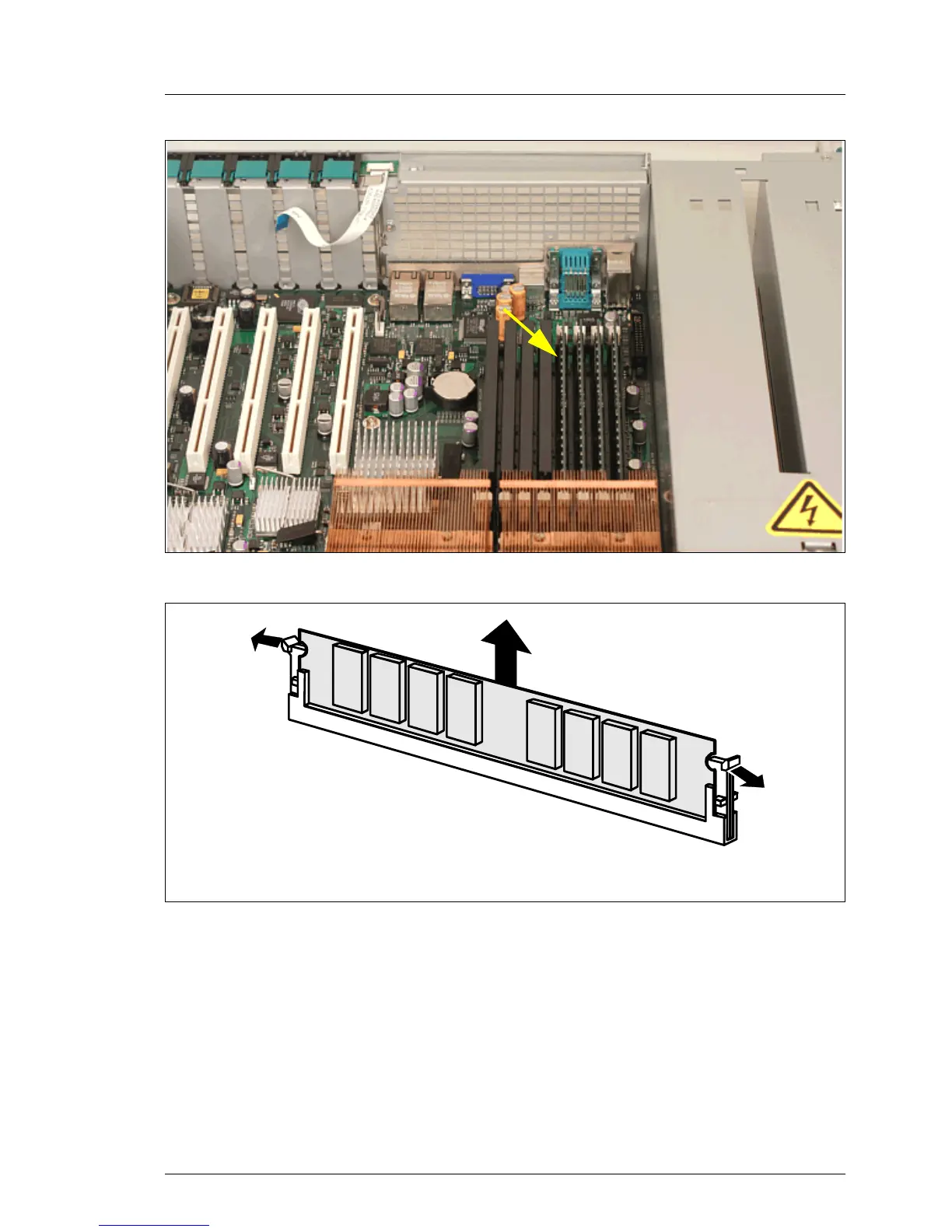

Figure 8: populating memory module slots
Figure 9: Removing a memory module
Ê Press the holders on either side of the mounting location concerned
outward (1).
Ê Pull the memory module out of the mounting location (2).
1
1
2

Fujitsu Primergy RX300 S2 Specifications

General

Processor Sockets	2
Chipset	Intel 5000P
Network	2 x Gigabit Ethernet
Form Factor	2U Rackmount
Processor	Intel Xeon 5000/5100/5300 series
Storage	SAS or SATA HDD 2.5"/3.5"
RAID Support	Optional RAID controller
Operating System Support	Windows Server, Linux
Power Supply	Redundant power supply optional
