Fujitsu Primergy RX300 S2 Options Guide

44 Options Guide RX300 S2
Installing the ROMB upgrade kit ROMB (RAID on Motherboard)

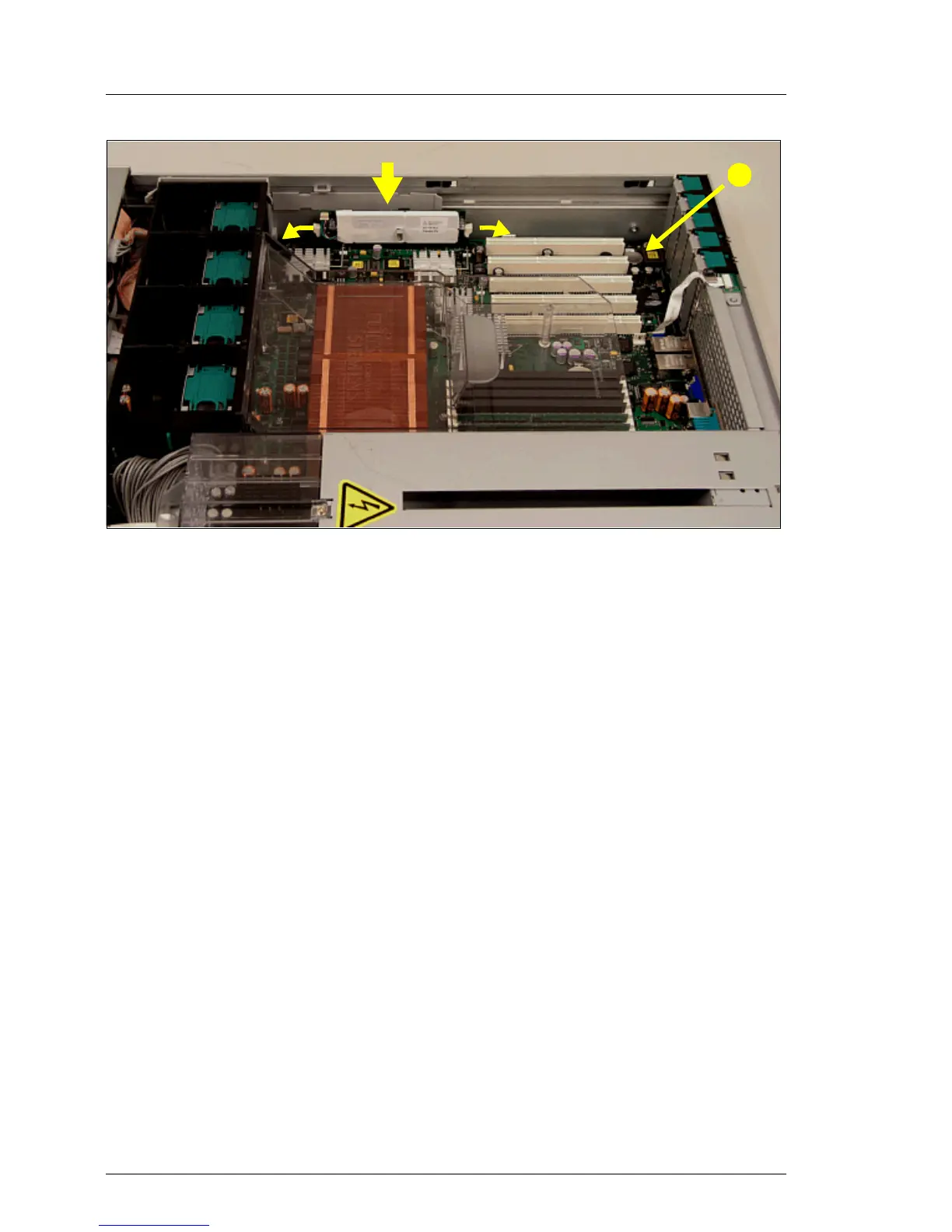

Figure 23: Installing the iButton and the Cache module
Ê Install the iButton on the system board (1).
Ê Press the holders on either side of the mounting location outward.
Ê Insert the cache module.
Ê Press the cache module downward until the holders on either side of the
mounting location are engaged.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter „Completion“ on page 107.
I Information on the configuration is provided in the Technical Manual for
the system board.
1

Fujitsu Primergy RX300 S2 Specifications

General

Processor Sockets	2
Chipset	Intel 5000P
Network	2 x Gigabit Ethernet
Form Factor	2U Rackmount
Processor	Intel Xeon 5000/5100/5300 series
Storage	SAS or SATA HDD 2.5"/3.5"
RAID Support	Optional RAID controller
Operating System Support	Windows Server, Linux
Power Supply	Redundant power supply optional
