RX300 S2 Options Guide 61
Accessible drives Installing the CD/ DVD-ROM drive

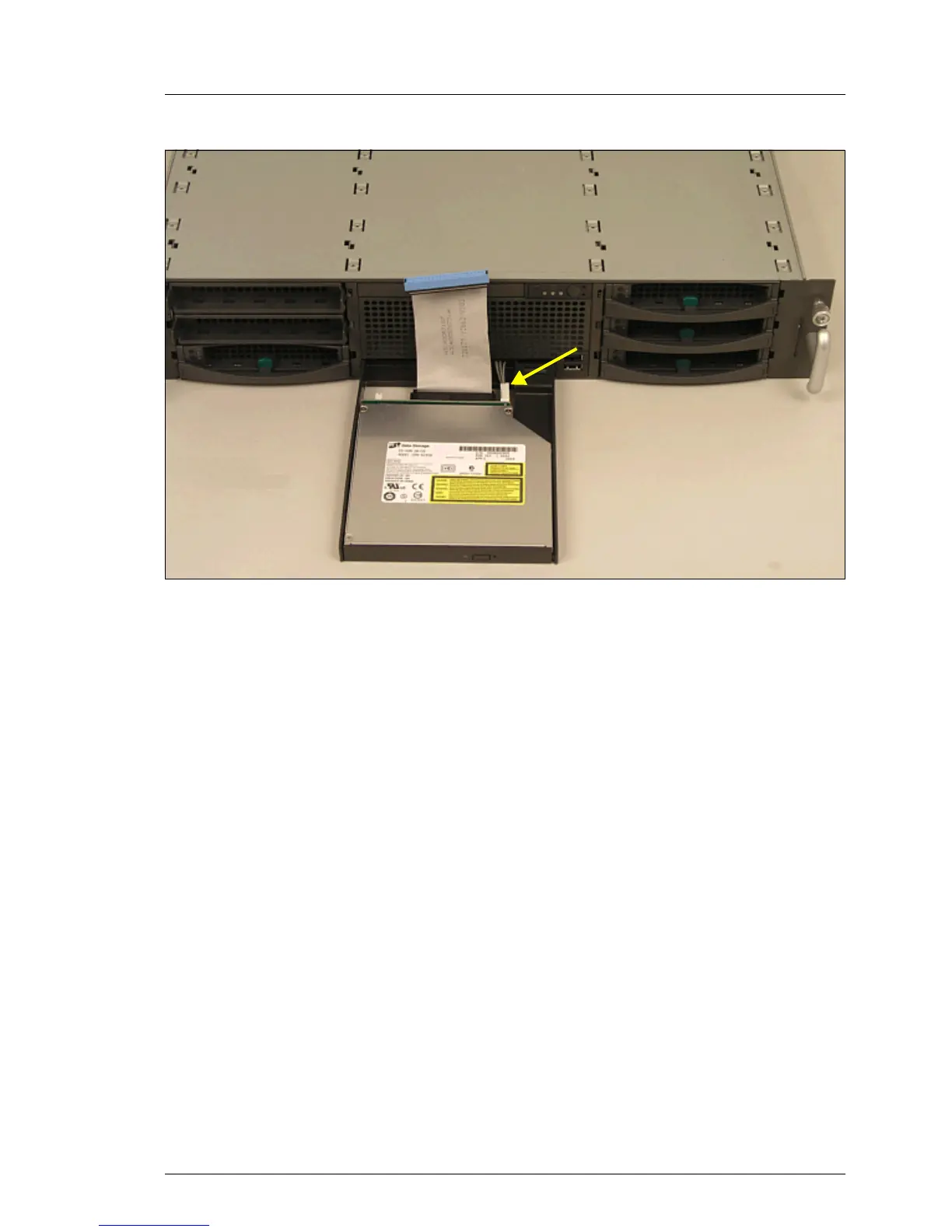

Figure 39: Connecting the CD/DVD drive cables
Ê Thread the power cable (1) through the bay and connect it to the CD Drive
(see also chapter „Appendix“ on page 111).
Ê Connect the IDE cable to the drive (see also chapter „Appendix“ on
page 111)
1
