96 Options Guide RX300 S2
Removing 2nd SCSI backplane Converting from 1- to 2-channel version

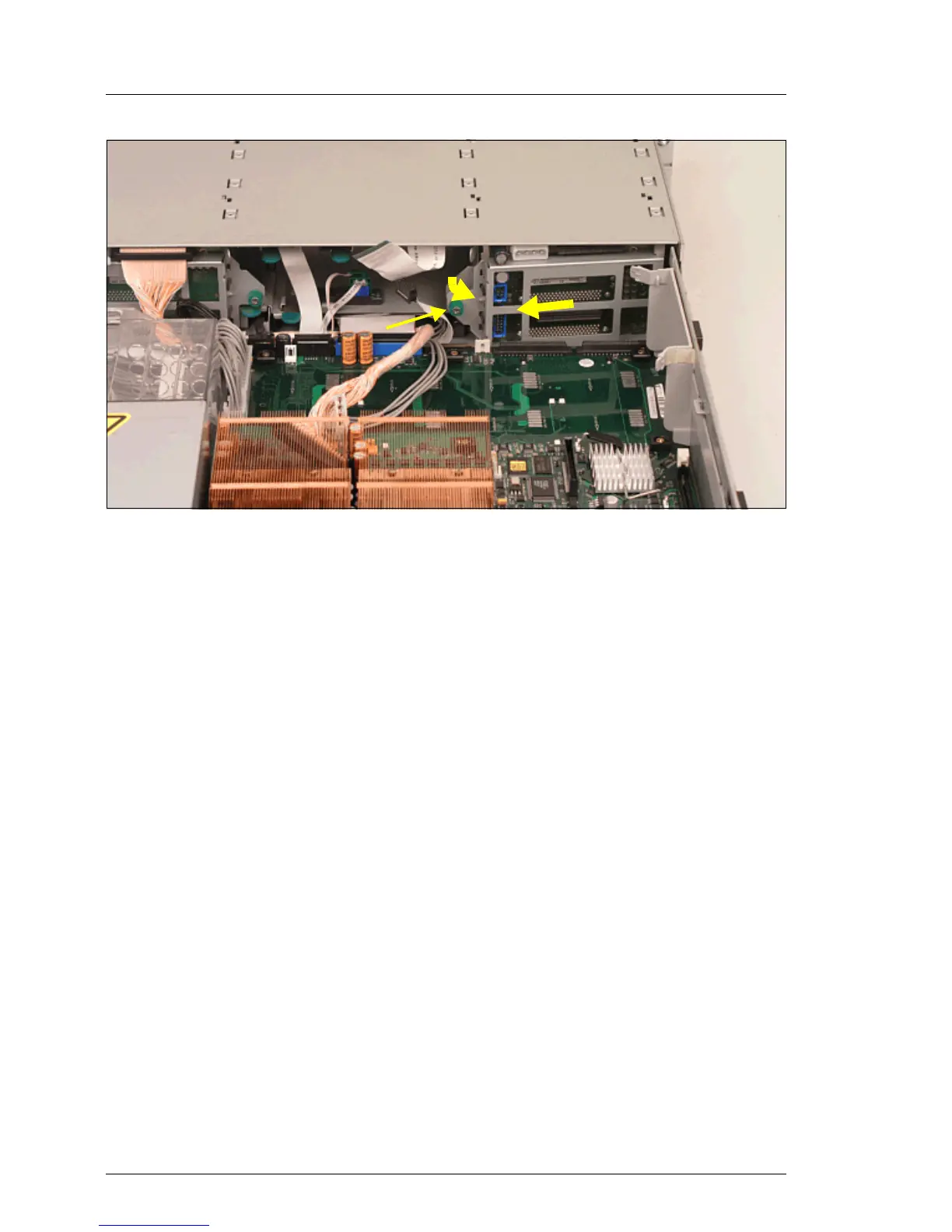

Figure 79: Loosening knurled screw
Ê Loosen the knurled screw.
Ê Twist the SCSI backplane holder out slightly. Do not damage the hooks.
Ê Pull the SCSI backplane holder out.
