26 U41221-J-Z156-1-74
Open the Housing Floorstand Model
4.1.2 Removing/Mounting the left Side Cover
I To replacing the fan module (see section “Installing/Removing the Fan
Module” on page 34) in the floorstand model the left side cover must be
removed.

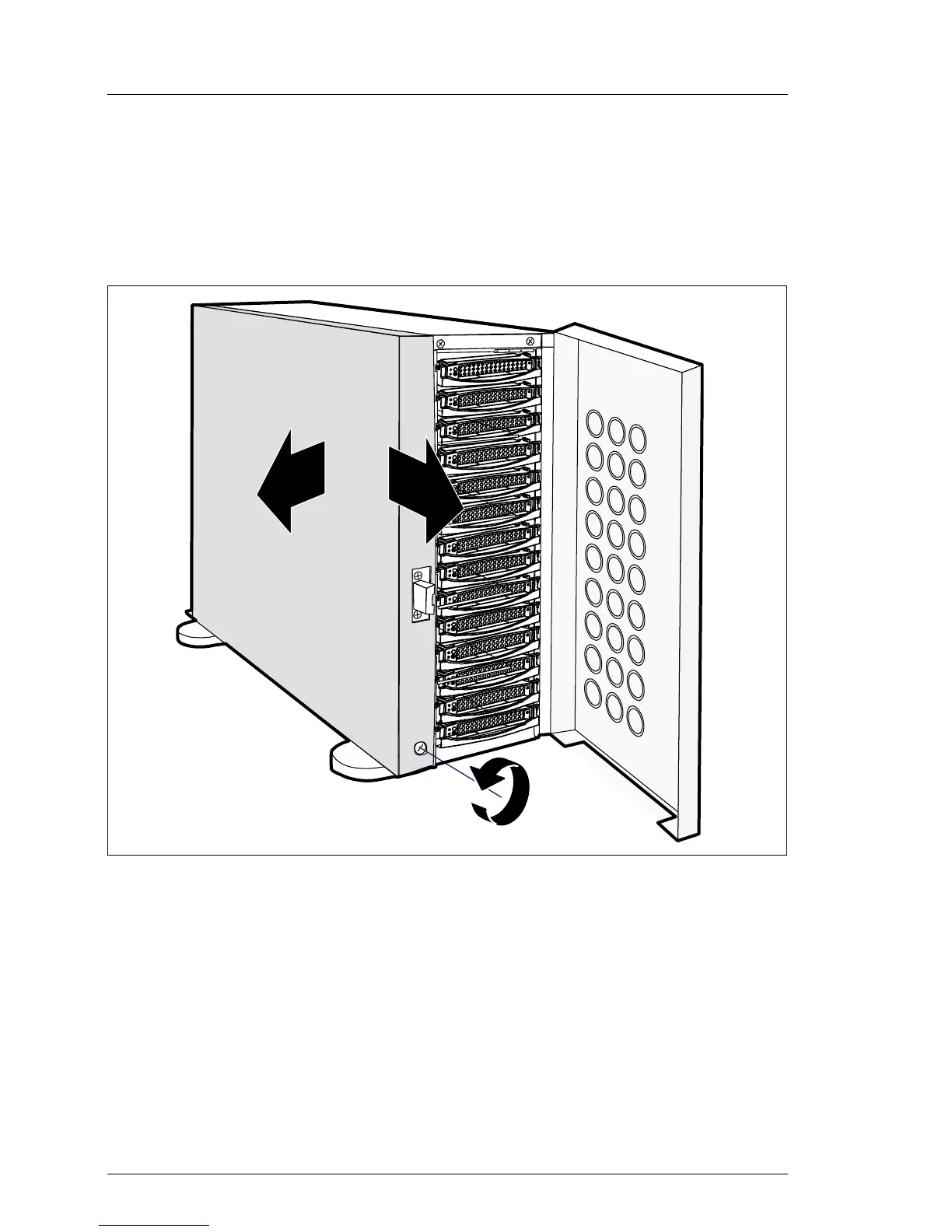

Figure 9: Removing the Side Cover
Ê Open the door.
Ê Loosen the lower left knurled screw (1) and slide the left side cover in the
direction of the arrow for approx. 3cm (2).
Ê Remove the side cover from the six guides by sliding it in the direction of the
arrow marked (3).
1
2
3
