U41221-J-Z156-1-74 65
Installation Mounting the Rack Model
10.4.2 Mounting Slide Rails
Ê Fasten the slide rails with the holding-down clamps to the cage nuts
provided on the support uprights, for this purpose, using four of the screws
supplied in the rack mounting kit for each rail.
10.4.3 Mounting the Subsystem
Ê Lift the storage subsystem onto the two slide rails at the front of the rack and
move it back on the rails so that you can work comfortably from behind on
the rear of the rack.

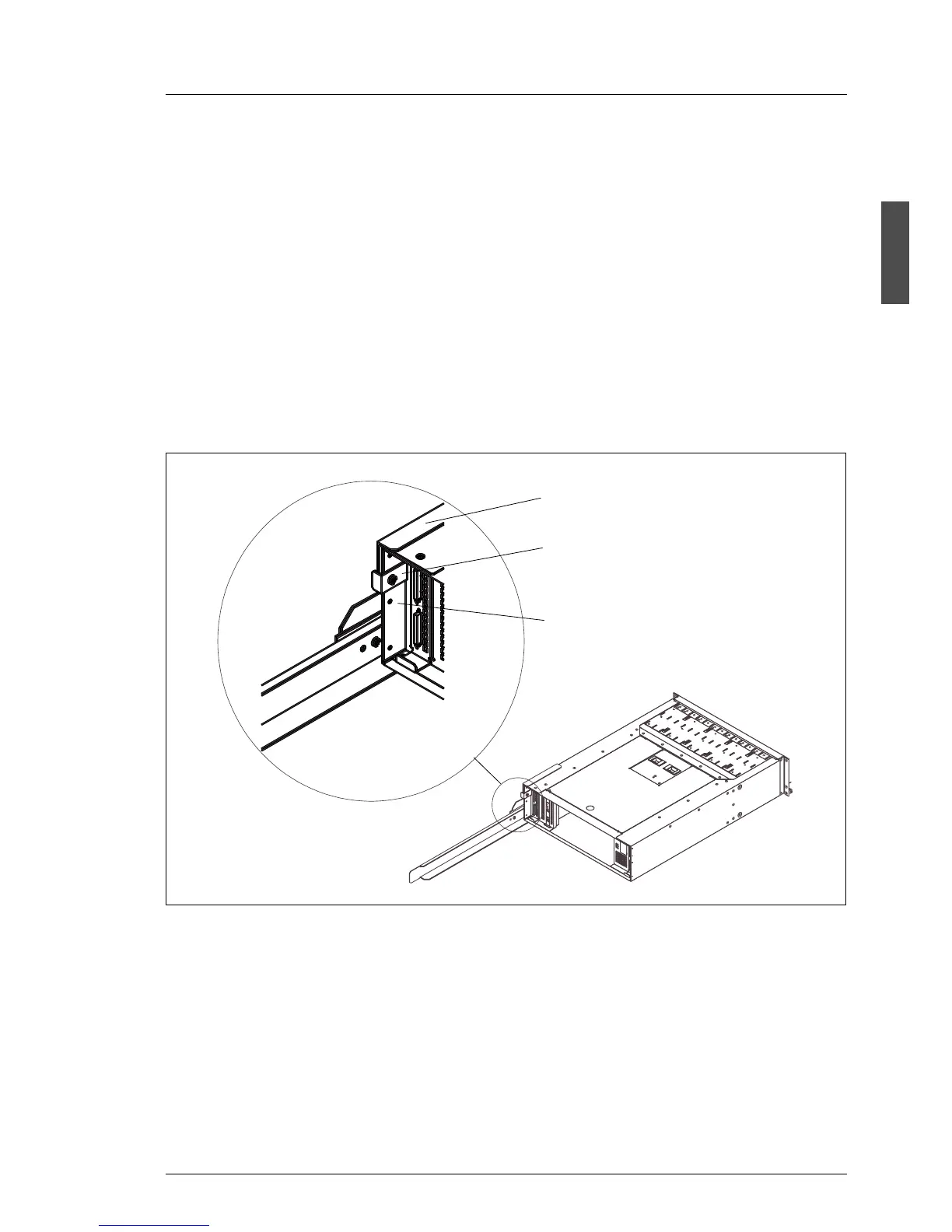

Figure 27: Rear Left Stop
Ê Fasten the stop (1) on the left rear edge of the casing box (2). The stop
prevents the storage subsystem from being pulled forwards too far since
there is resistance on the rear edge of the holding-down clamp (3).
Ê Secure the storage subsystem with the two knurled screws to the front
support uprights of the rack.
1
2
3
