Fibre Channel (FC) Connection Connections
9.1 Fibre Channel (FC) Connection
The required connectors are on the connection panel of the corresponding
FFx-RAID controller module at the rear of the storage subsystem (see figure 19
on page 47).
The possibilities to configure and connect the storage subsystem are described
in an additional manual (“PRIMERGY S60 Technical Configuration Guide”,
see“Related publications” on page 81).
Ê Set up the data connection between the system unit and the storage
subsystem by connecting the plug on the cable from the system unit with the
corresponding FC connector of the storage subsystem.
I Pay attention that the plug is securely attached to the FC connector. Only
in this way a smooth data transfer between the system unit and the
storage subsystem can be ensured.
9.2 Mains Connection
The storage subsystem is supplied with the mains voltage via the delivered
power cables.

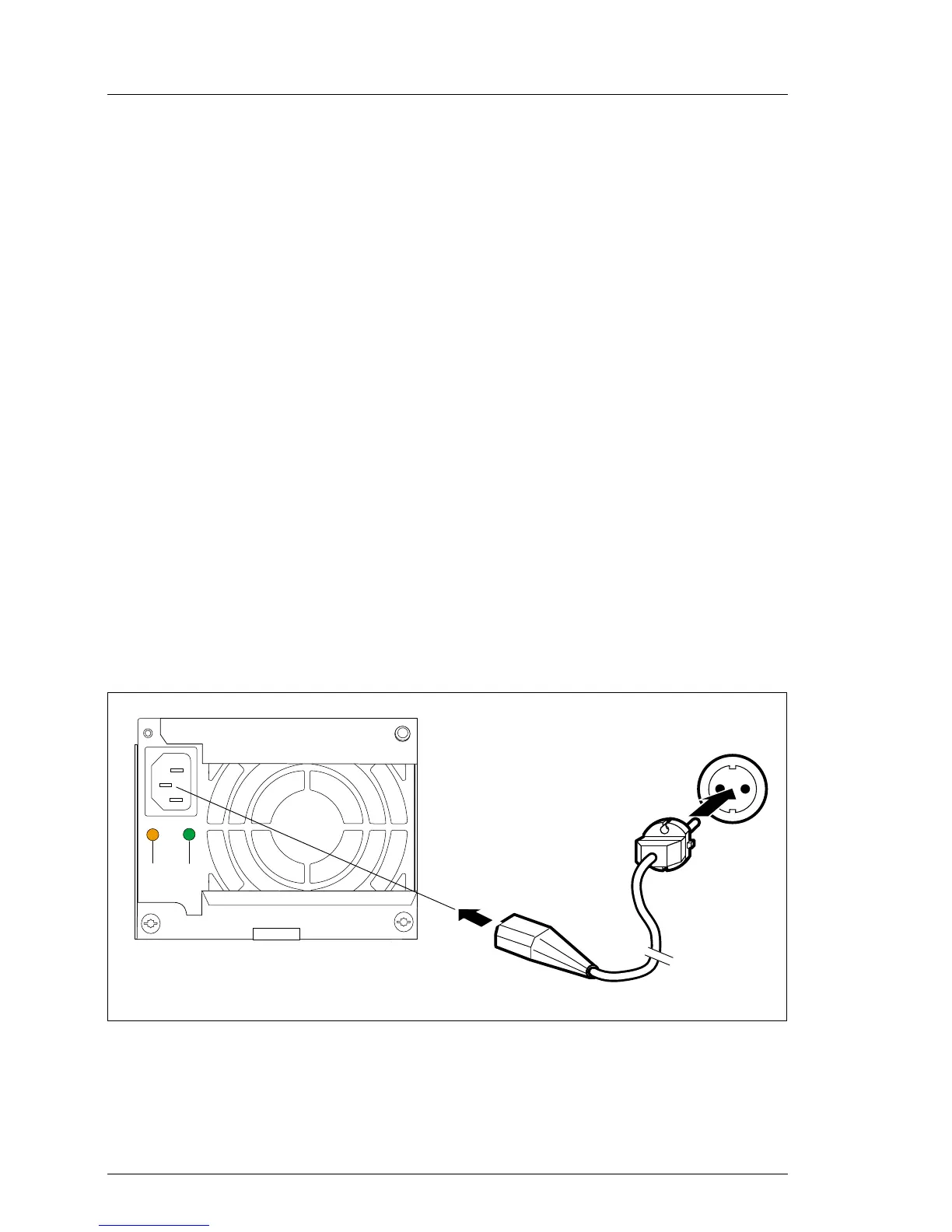

Figure 24: Connecting the Power Cable
Ê Plug the end of the power cable marked (1) into the socket of the power
supply unit on the rear of the storage subsystem.
1
2
1
2
