16 U41221-J-Z156-1-74
The Front Operating and Indicator Elements
3.1.1 Meaning of the S60 Operating Status LEDs
The state of the status LEDs located on the HDD backplane is transmitted by
optical waveguides so that the power supply status, the cooling status and the
server management status are indicated on the front of the storage subsystem.

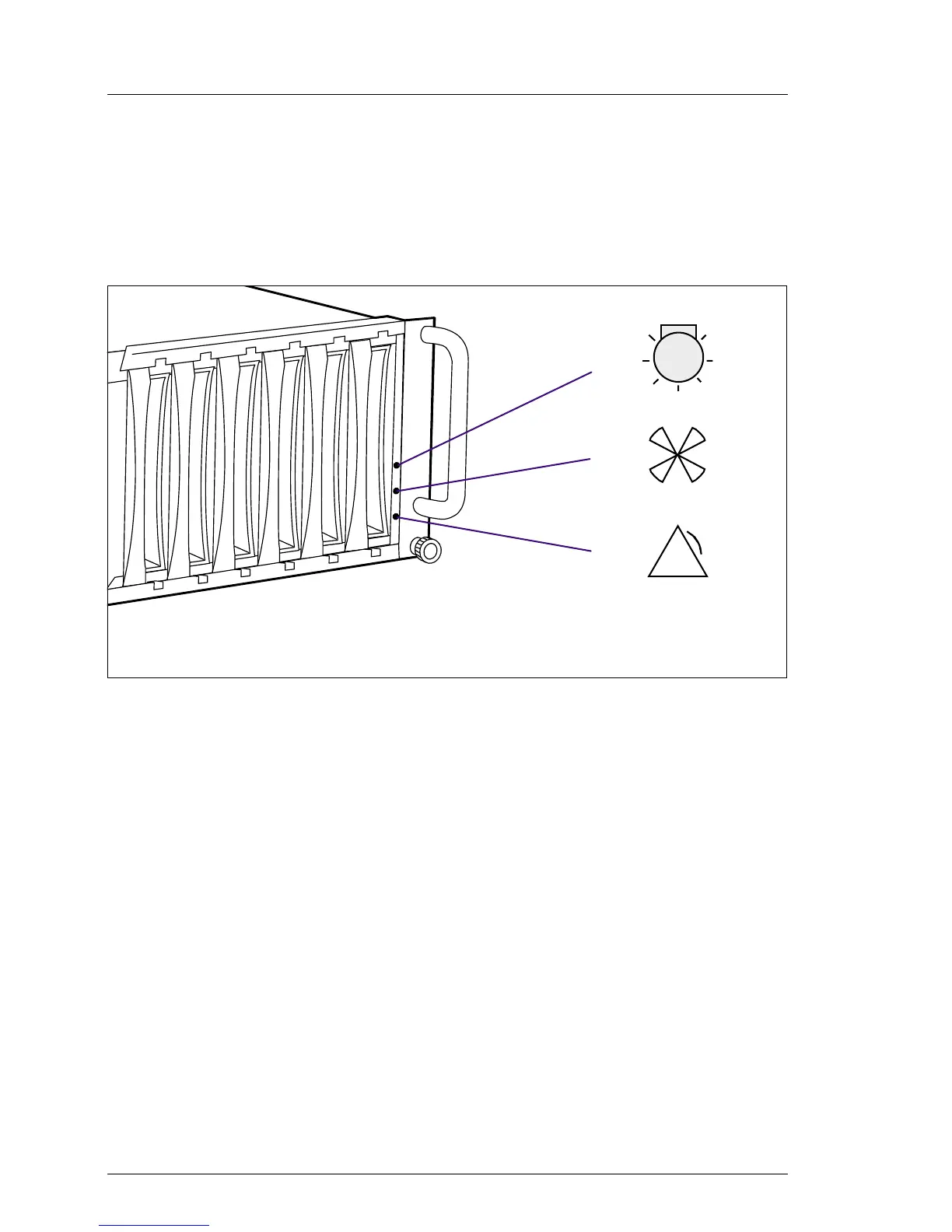

Figure 2: Operating Status LEDs and Icons on the Front of the Rack Model
(1) Power supply status
(2) Cooling status
(3) Server management status
V CAUTION!
In order to guarantee the server management for the PRIMERGY S60
storage subsystem over SES (SCSI Enclosure Service), at least one of
the two first HDD modules (see also section “Identification Marks and
Loop Addresses” on page 43) must be installed.
I Fault clearing instructions can be found in the chapter “Troubleshooting”
on page 71 of this manual.
!
3
2
1
