66 U41221-J-Z156-1-74
Mounting the Rack Model Installation
10.4.4 Routing the Cables
The cables of the storage subsystem are routed in the rack in such a way that
the unit can be pulled forwards without the cables having to be loosened.
The articulated cable guides on which the cables are routed are located in the
interior of the DataCenter Rack (on the right if seen from the rear of the rack).
The procedure can be found in the chapter “Cable Management“ in the
DataCenter Rack manual.

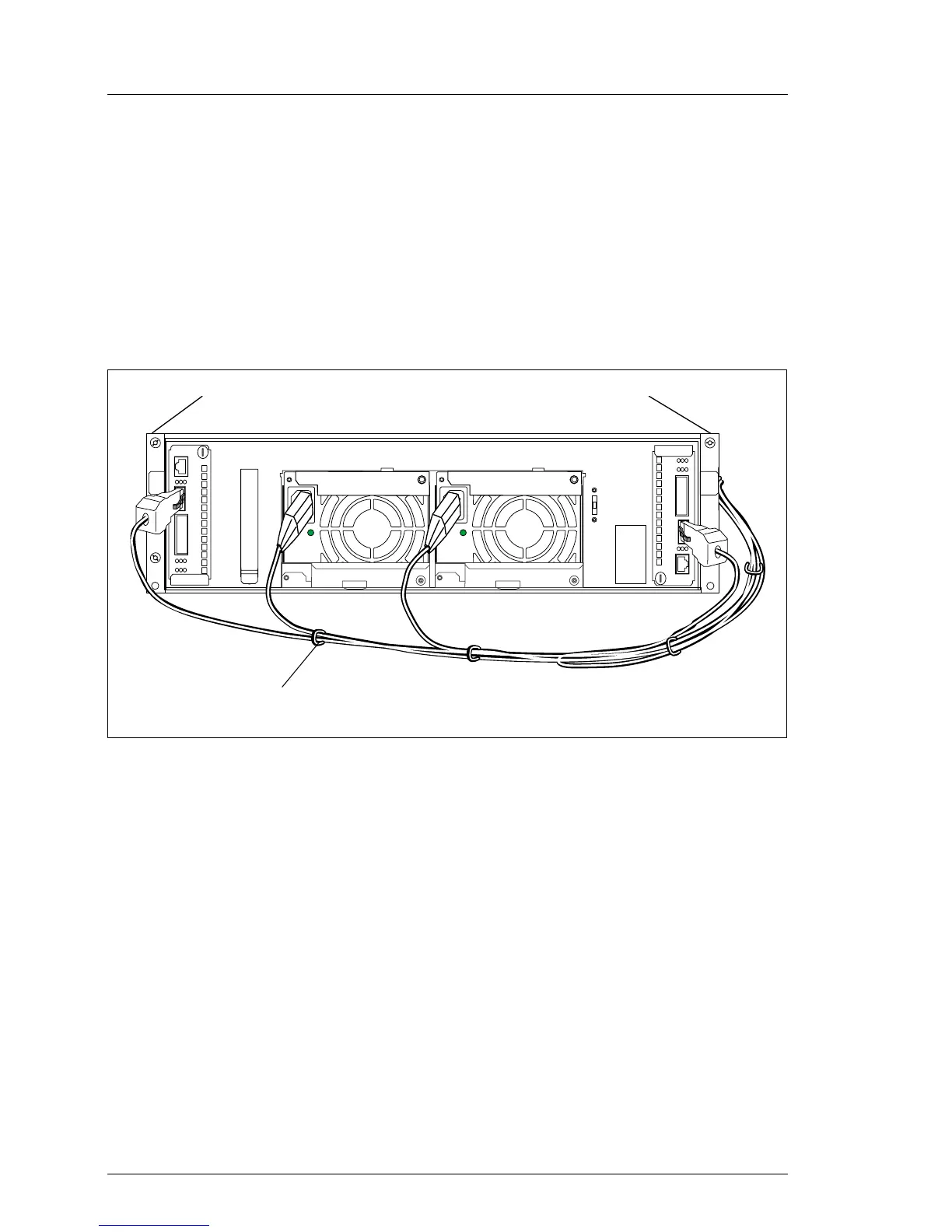

Figure 28: Leads Routing
Ê Connect the cables to the system unit and to the storage subsystem.
V CAUTION!
The cables must have enough over-length when connecting to the
storage subsystem (see figure 28). This is necessary to prevent them
being pulled out of the connectors when the subsystem is withdrawn
from the rack (the mains connectors could be pulled out unintentionally).
Ê Route the cables as shown in the figure.
Ê Insert the cables through the articulated cable guides.
Ê Secure the cables with the cable ties (1).
1
