U41221-J-Z156-1-74 67
Installation Mounting the Rack Model
In other rack models, the leads are secured to articulated cable guides delivered
with the installation kit for the 42-HE rack. The screw and the spring nut which
are used for installation form part of the racks or the installation kit for the rack.

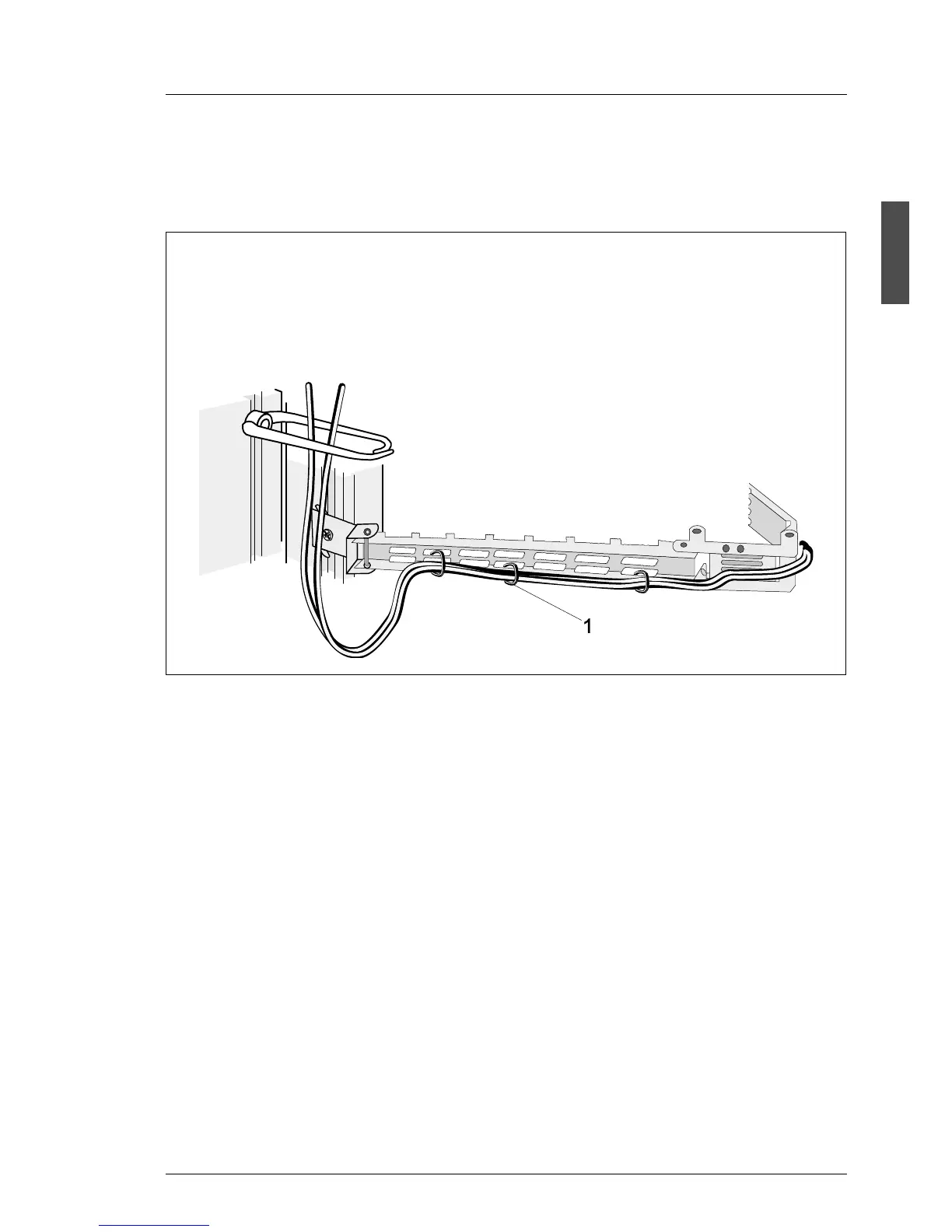

Figure 29: Articulated Cable Guide
Proceed as follows:
Ê Secure the articulated cable guide with the screw to the spring nut placed in
the support uprights according to the description in the rack manual. The
articulated cable guide must be fitted within the height range of the storage
subsystem.
V CAUTION!
The articulated cable guide should be fixed on the support uprights
only. Do not fix it on the storage subsystem.
