Power Supply Power Supply Units
Installing occurs in reverse of order:

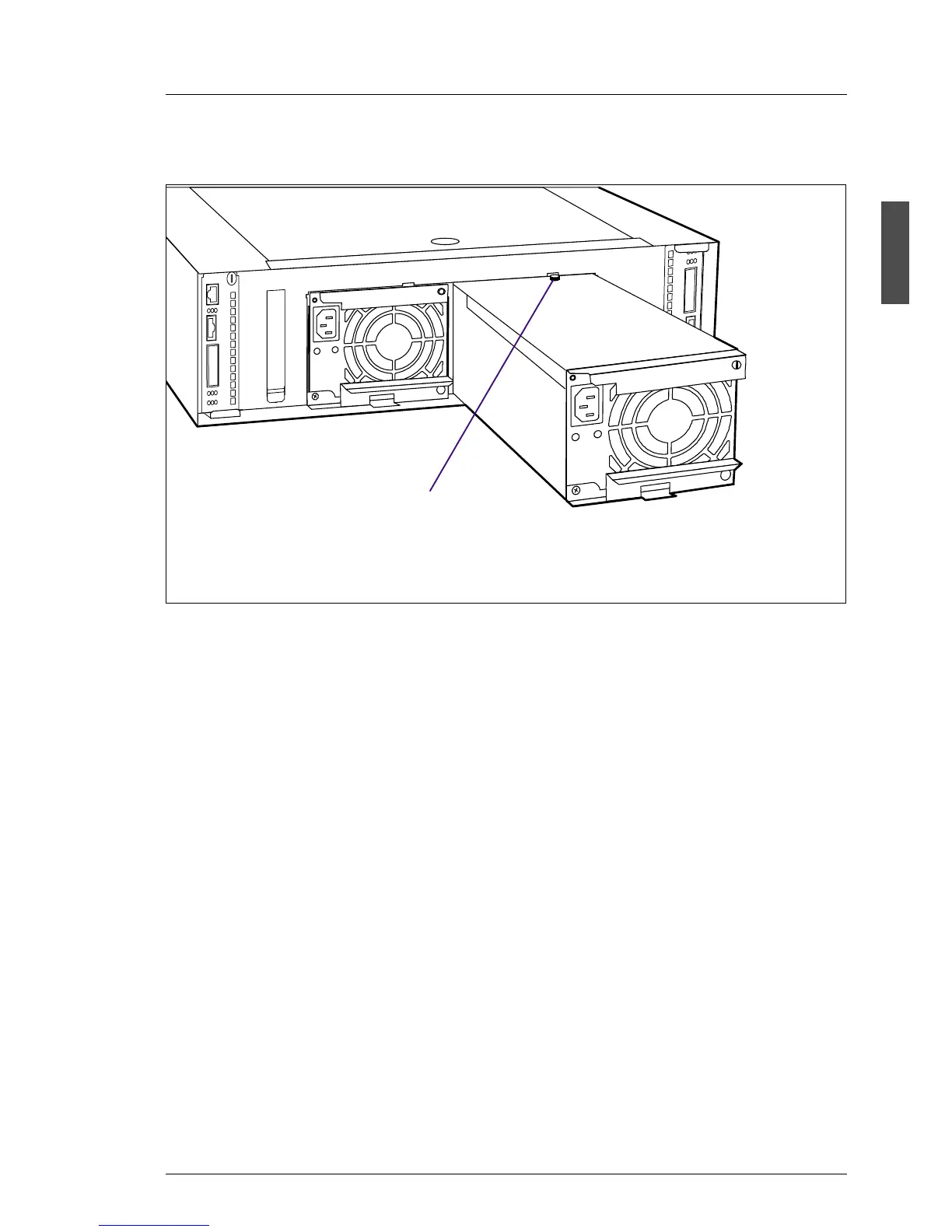

Figure 12: Power Supply Unit Removed with Coding Pin
Ê Push the new power supply unit into the empty slot.
I Please note the coding of the power supply unit. Only one power
supply unit, to which the coding pin (1) is attached in such a way that
it does not adversely affect the installation, may be used in the
PRIMERGY S60 storage subsystem. The coding may not be
removed under any circumstances.
V CAUTION!
Please ensure that the power supply unit engages correctly in the
mounting frame and is locked in position. This is the only way to avoid
the power supply unit being shaken out of its mountings and
damaged during transport.
Ê Connect the cable to the power supply unit (see the section “Mains
Connection” on page 58).
Ê Connect the power cable to the mains (see section “Mains Connection” on
page 58).
