Introducing the Encore/Eclipse Series Encore 550
Page 8 MDE-3893P Encore® and Eclipse® Series Owner’s Manual · December 2011
Encore 550
The Encore 550 unit has an enhanced appearance for the columns and canopy, when compared
to the Encore 300 and 500 units. The following illustration shows an Encore 550 unit with
SMART Meter
™
dispenser and its components. For information on programming the unit, refer
to “Programming Encore 500 and 550, Encore S Series and Eclipse” in MDE-4732 Encore and
Eclipse Series Owner’s Programming Manual. All options may not be available on your unit.

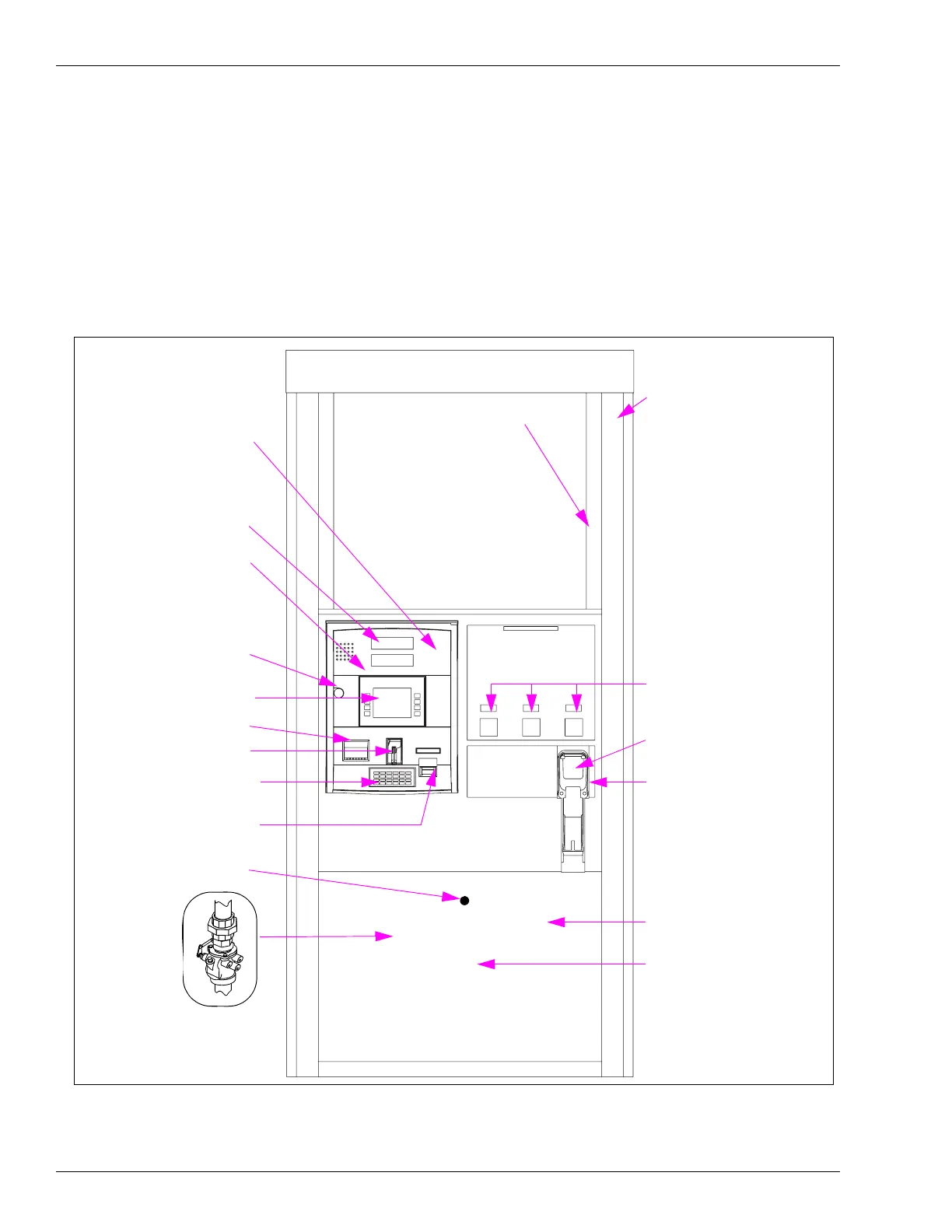

Figure 3-2: Encore 550 Unit
Main Display
CIM Door Lock
CRIND Display
Cash Acceptor
CRIND Device Printer
Door Lock
Lower Panel
Breakaway for all Encore units
is located near the hose casting
at the top of the
Pump/Dispenser for units
without Hose Retrievers. For
units with Hose Retrievers, the
breakaway is located near the
Nozzle.
The VR hose, nozzle information
and FCC label are found on the
right side when facing Side 1 of
the dispenser.
PPU Display and Grade
Select Buttons
Boot Area
Nozzle (not shown)
Shear Valve,
Unions, and Fuel
Filter behind Lower
Panel (not shown)
Card Reader
CRIND or PPP Keypad
Brand Advertising Panel
Serial Number Label is
found inside the CIM
Manager’s Keypad (not shown)
can be found behind the CIM
Door
Available but not shown:
- Totalizer Option
- TRIND Option
- Scanner Option
