MDE-3893P Encore® and Eclipse® Series Owner’s Manual · December 2011 Page 9
Encore S Series Introducing the Encore/Eclipse Series
Encore S Series
The Encore S series units offer a refined style that delivers a simplified customer layout,
resulting in effective fuel time. With the S series unit, the retailer also receives the benefit of
increased security against fuel fraud, which includes:
• A separate printer door that has a barrier, restricting access to the inside of the unit
• A security latch below the main door, placed behind the lower panel door.
For more information on the additional security features of the Encore S series, refer to
“Additional Security in Encore S Series Units” on page 27.

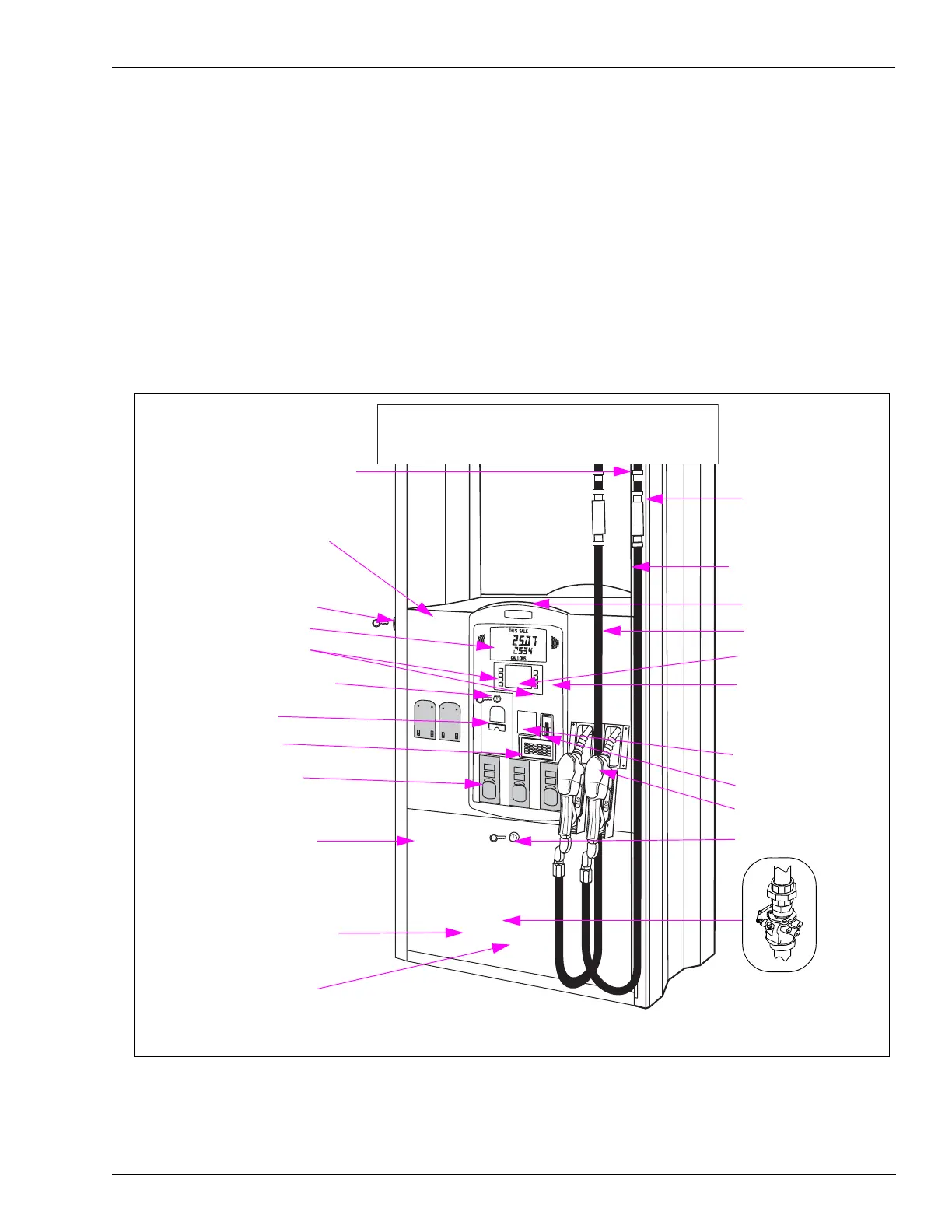

Figure 3-3: Encore S Series Unit
Breakaway
Hose
Main Door
CRIND Display
Manager’s Keypad (not
shown) Located behind
the Main Door
Card Reader
Nozzle
Brand Advertising
Panel
Static Electricity, Health, and Fire
Warnings (recommended location)
Printer Door Lock
CRIND Device Printer
CRIND or PPP Keypad
Security Latch (not shown)
Located below the Main
Door Inside the Lower Panel
Main Display
PPU Displays and Grade
Select Buttons
Lower Panel
Lower Panel Door Lock
Shear Valve,
Unions, and Fuel
Filter behind Lower
Panel (not shown)
Side 1 (the Gilbarco Label is located
on the inner side of the right column,
when facing side 1)
Electro-Mechanical
Totalizer (option) -
Available but not
Shown
Brand Decal Area
Card Reader Instructions
Main Door Lock
Memo Softkey Panel
