Periodic Maintenance Requirements Maintaining Units
Clearing Paper Jams in USB Sliding Printer (M06972A001)
Avoid using tools for prying printer parts or using excessive force to clear jams.
This could result in permanent damage to the printer.
CAUTION
To clear a paper jam, proceed as follows:
1 Release the right blue pin by pulling it upward, and tip the Printer Control Module forward to
expose the jam.

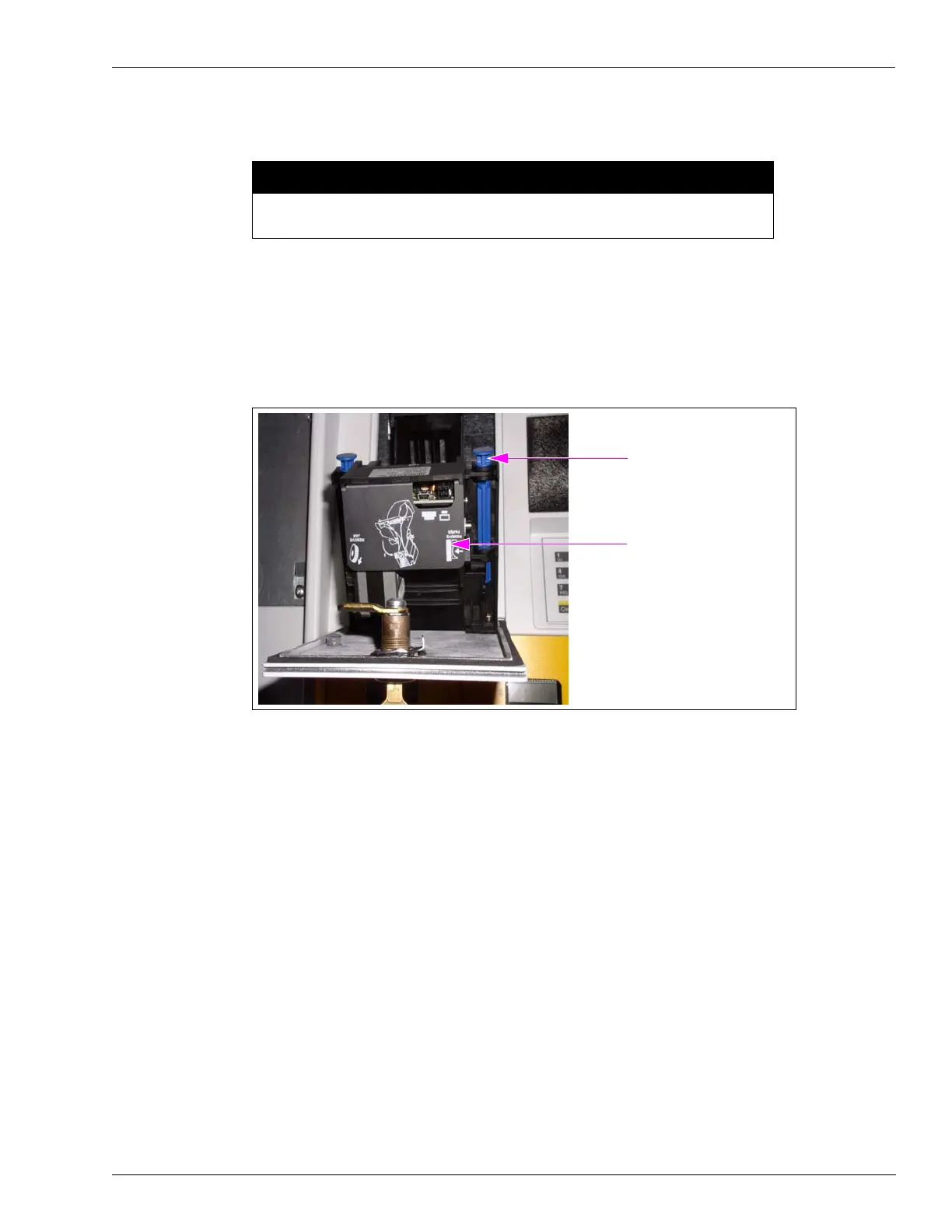

Figure 5-29: Printer Control Module
Printer Control Module
Right Blue Pin - Released
2 Press the printer head release trigger on the right side of the printer during the paper removal
process.
