2 Press the printer head release trigger on the left side of the printer and remove the paper.
Note: In Encore S series units, the printer is installed in an inverted manner. Hence, the
printer head release trigger is on the right side of the printer.

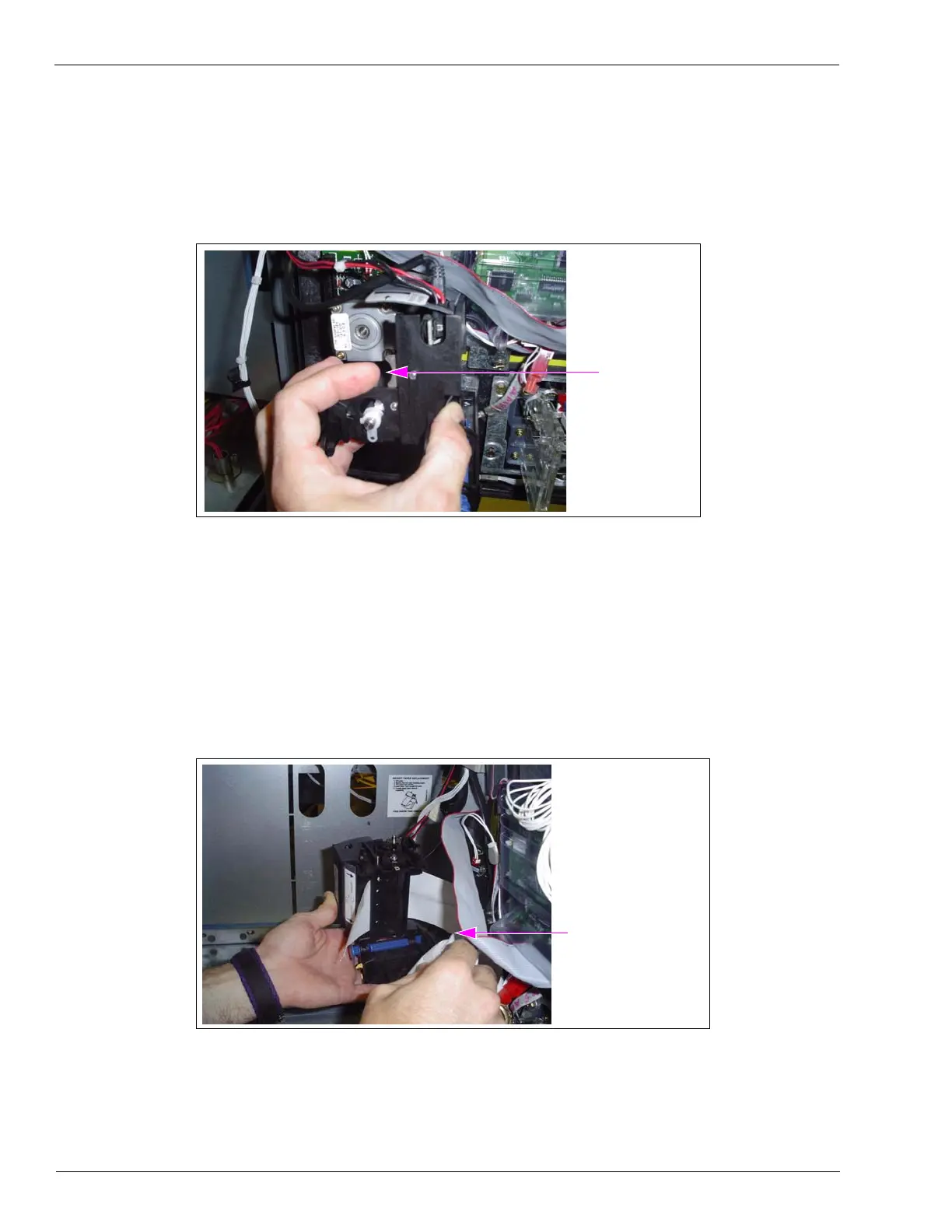

Figure 5-27: Printer Head Release Trigger
Printer Head
Release Trigger
3 Tear paper at the paper feed and at the paper chute.
4 Gently pull the paper through the module, until it is completely removed. Leave no shards in
the unit, especially in the printer chute.
Note: Rotate the gears to release the shards, if required.
5 Lower the module back on the paper bucket and push the right blue pin in place.
Figure 5-28: Printer Module - Removal of Shards
Removing Paper Shards
from the Unit
