Periodic Maintenance Requirements Maintaining Units
Changing the Receipt Paper in the M00317A00X Printer

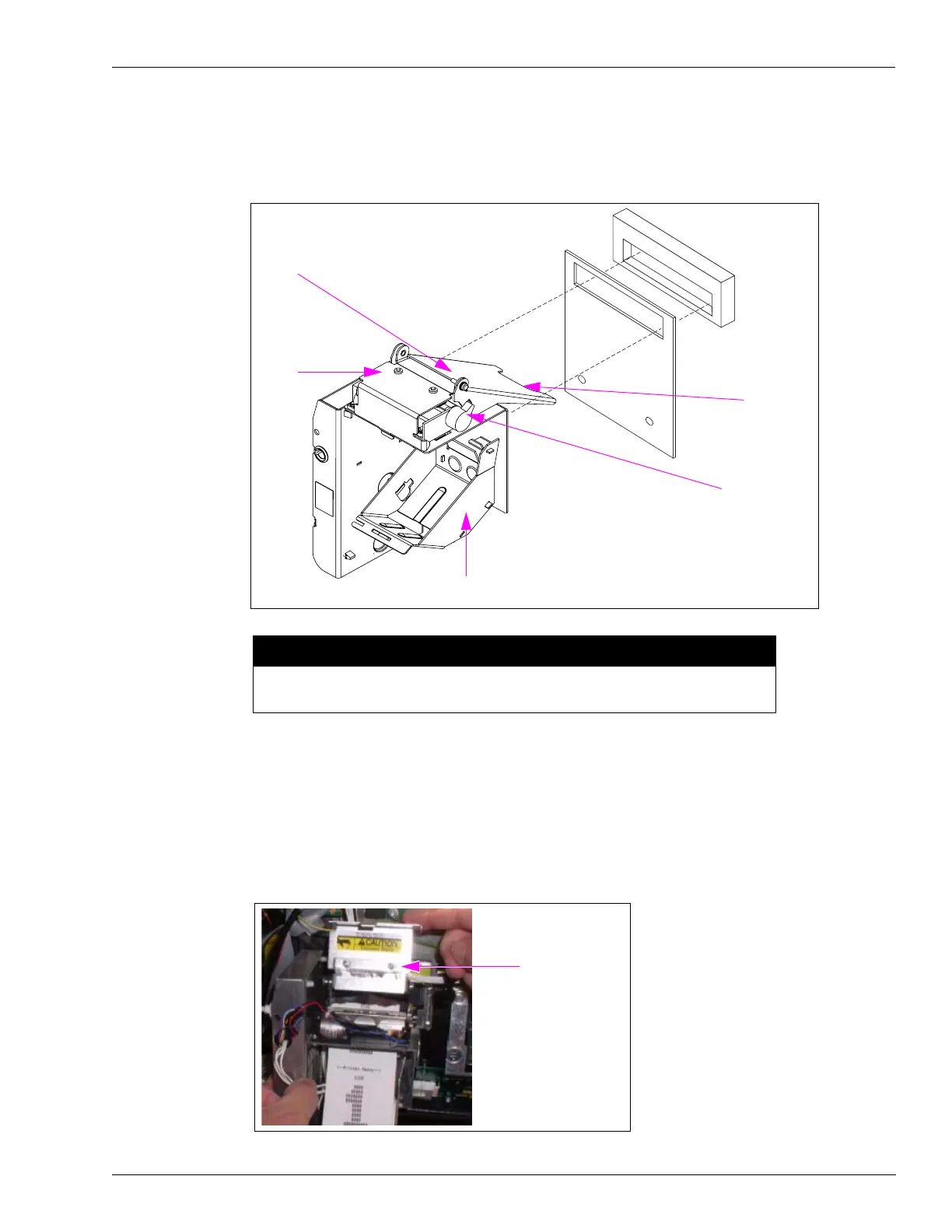

Figure 5-2: M00317A00X Printer
Cover
Chute
Chute
Opening
Paper
Release Lever
Paper Bucket
Avoid touching any wires or circuit boards during paper replacement, as static
electricity from your fingers may damage the unit.
CAUTION
To replace the receipt paper in the M00317A00X printer, proceed as follows:
1 Remove the paper roll core.
2 Raise cover over printer head.
Figure 5-3: Printer Cover - Opening
Cover Raised
over Printer Head
