Introducing the Encore/Eclipse Series Common Functions
Page 16 MDE-3893P Encore® and Eclipse® Series Owner’s Manual · December 2011
Displaying Pump Totals for Encore/Eclipse Units
You can view pump totals for Encore and Eclipse units on the main and Price Per Unit (PPU)
displays by using the Manager’s Keypad located behind the Customer Interface Module (CIM)
door or Oven door on Side 1 of the dispenser. The keypad’s magnetic backing allows easier
handling and input.
Notes: 1) For Encore 300/500/550 and Eclipse units, to identify Side 1 (A) of the pump or
dispenser, refer to the section titled “Programming Orientation” in MDE-4732
Encore and Eclipse Series Owner’s Programming Manual.
2) For Encore S Series units, to identify Side 1 of the unit, see Figure 3-3 on page 9.

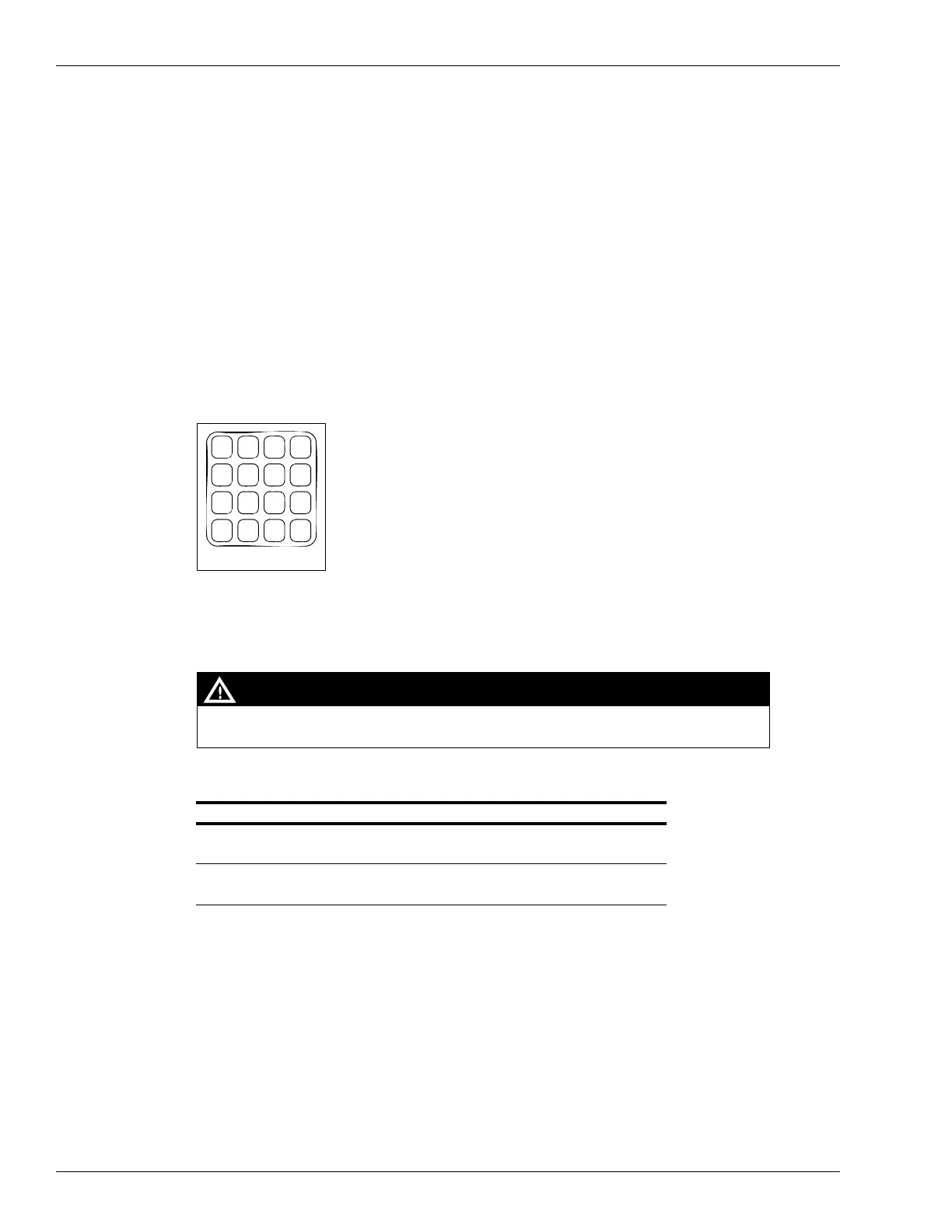

The Manager’s Keypad is as shown in Figure 3-7.
Figure 3-7: Manager’s Keypad
1
4
7
CLEAR
2
5
8
0
3
6
9
F1
F2
ENTER
$
TOTAL
VOL
TOTAL
Manager’s Keypad
Note: To enter the Command Codes required to place the pump/dispenser in Standalone
mode or to program prices directly at the unit, refer to “Standalone Mode” on
page 19.
To avoid potential electric shock, do not touch any wiring or electronic component(s)
behind the CIM/Oven Door or Main Door.
WARNING
The following table explains how to access the Manager’s Keypad.
For this Model Series Use these Steps to Locate the Manager’s Keypad
Encore 300/500/550/S Series • Open CIM door on Side 1 (A)
• Keypad is attached (by magnet) behind the door
Eclipse • Open Oven door on Side 1 (A)
• Keypad is attached (by magnet) behind the door
To Next Page
