MDE-3893P Encore® and Eclipse® Series Owner’s Manual · December 2011 Page 11
DEF Dispenser Introducing the Encore/Eclipse Series
DEF Dispenser

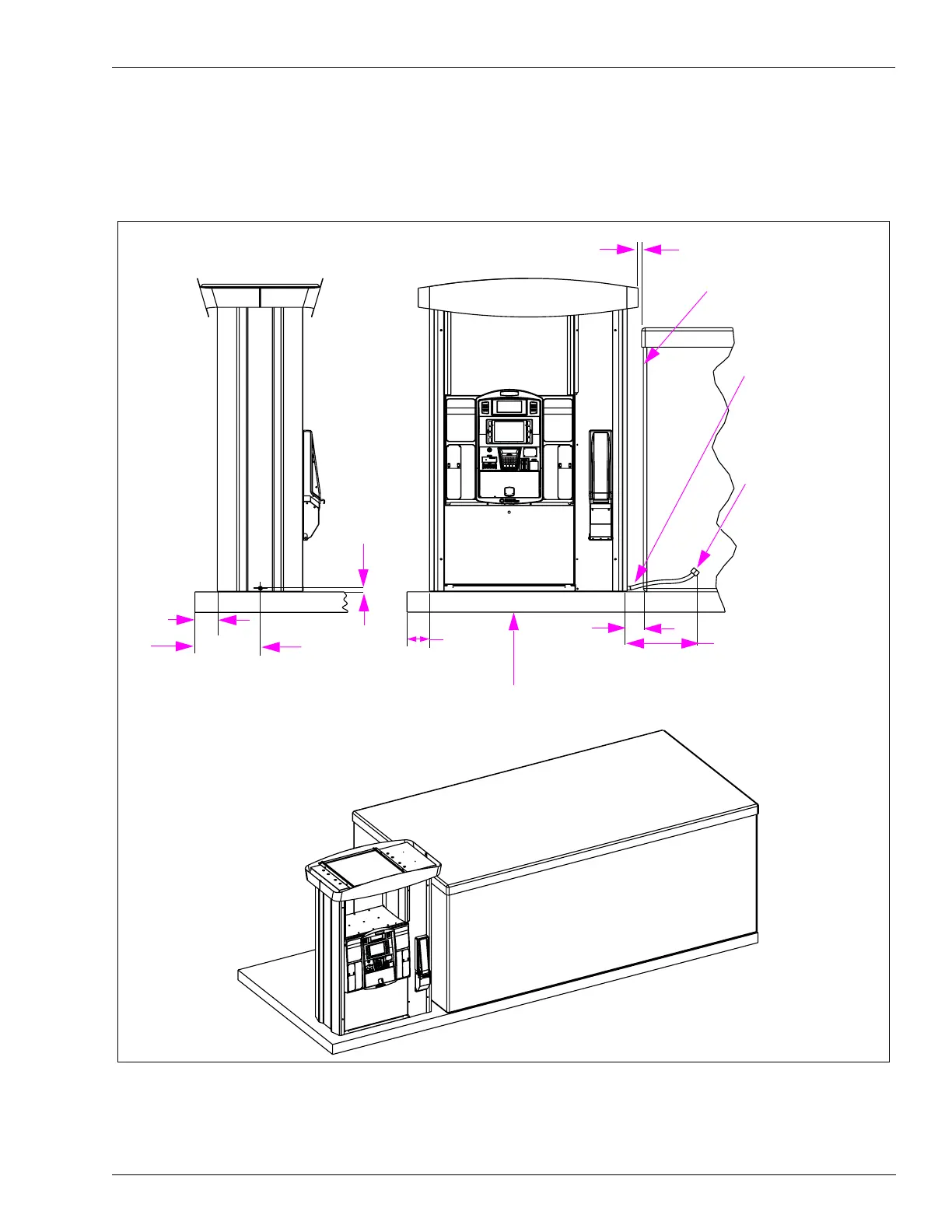

Figure 3-5: DEF Dispenser (When Tank is not Installed Underground)
(25.0)
[1.0]
Urea Tank
(160.0)
[6.3]
Skid Common to Both Urea Tank and Dispenser
Urea Inlet 1” BSPP
Female Fitting on the
Dispenser
(2000.0)
[6.5’]
of Hose Length Exposed
(115.7)
[4.6]
(160.0)
[6.3]
(308.0)
[12.1]
(29.9)
[1.2]
Typical Skid Tank Install
Insulation and/or
Heating Required. Use
solid or foam, non-water
absorbing insulating
materials suitable for
outdoor use.
