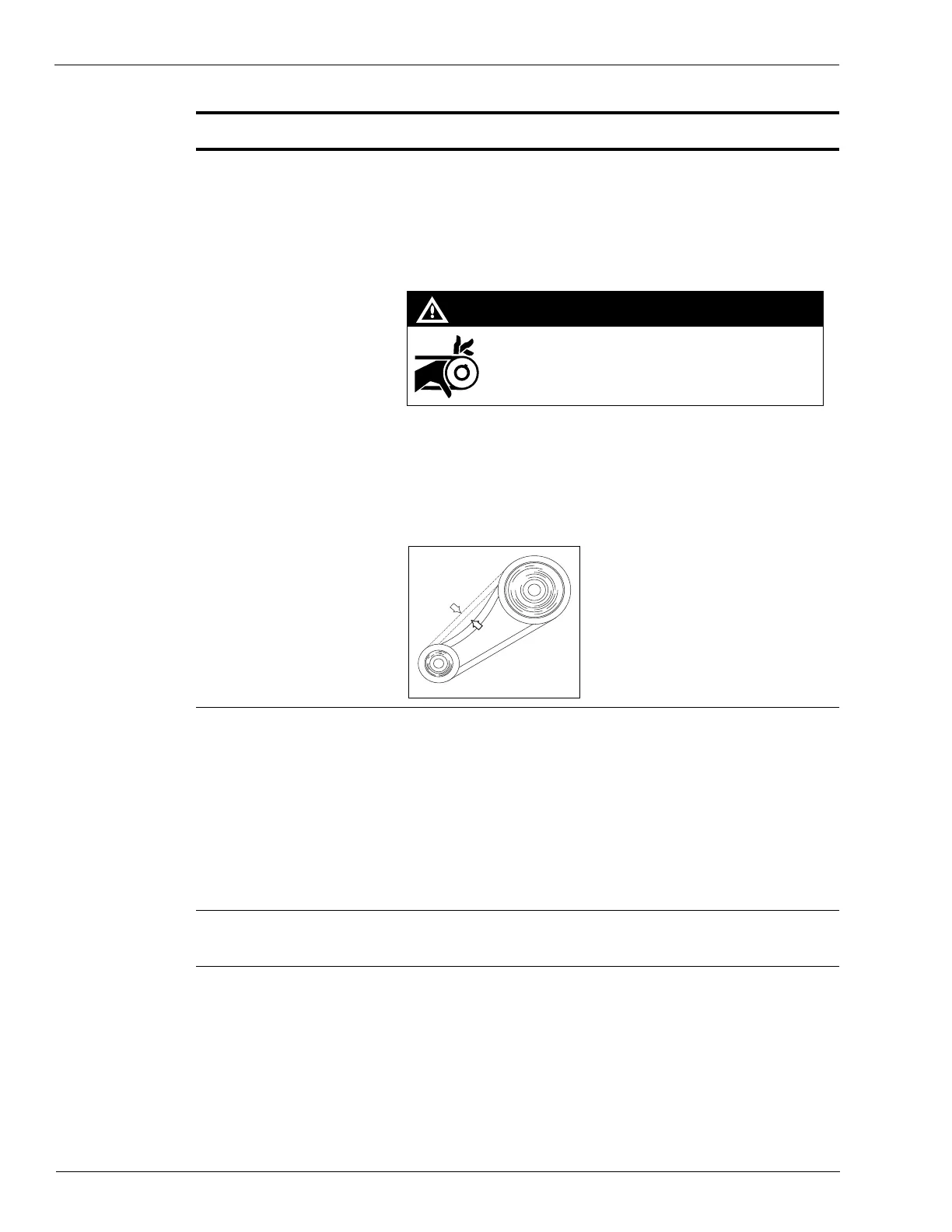

Maintaining Units Periodic Inspections
Page 34 MDE-3893P Encore® and Eclipse® Series Owner’s Manual · December 2011
Recommended
Frequency
Components Recommended Maintenance
Who Performs the
Inspection/Repair
Once a month Belts Recommended Belt Tensions:
Tighter belt tensions can cause wear and premature
failures for both pump and motor bearing. Loose
belts result in low flow or pulley/belt failures. Use the
following ratings:
• 65-75 lbs (30-34 Kgf) for new belts
• 50-65 lbs (28-30 Kgf) for old belts
• Owner—Inspect
• ASC/CSC only—Repair
and test
Belts and pulleys can pinch fingers and hands.
Injuries may result. Avoid placing fingers or hands
between belts and pulley. Never turn power on to fit
belt on pulley.
CAUTION
1. On the link belts, check all tabs for correct
positions (inward).
2. Check the belt tension. If there is more than one
inch of play on one side of belt, then tighten the
belts by tightening the idler pulley against the belt.
If there is excessive play, then replace the belt
with the next shorter length belt
1
"
Upon receiving a
customer
complaint
Replacing
printer paper
Refer to the instructions in “Changing the Receipt
Paper in the M00317A00X Printer” on page 45 or
“Changing the Receipt Paper in USB Printer
(M04119A001)” on page 48 or “Changing the
Receipt Paper in USB Sliding Printer
(M06972A001)” on page 51 or “Changing the
Receipt Paper in USB Sliding Printer for Encore S
Series Enhanced Bezel (M07885A001)” on page 55.
Owner
Upon receiving a
customer
complaint
Correcting
printer jams
Refer to the instructions in “Clearing Paper Jams in
USB Printer (M04119A001)” on page 59 or “Clearing
Paper Jams in USB Sliding Printer (M06972A001)”
on page 61.
Owner
Once a week Displays 1. Inspect displays for proper reading of all digits.
2. Verify if the displays are properly backlit.
• Owner—Inspect
• ASC/CSC only—Repair
and test
