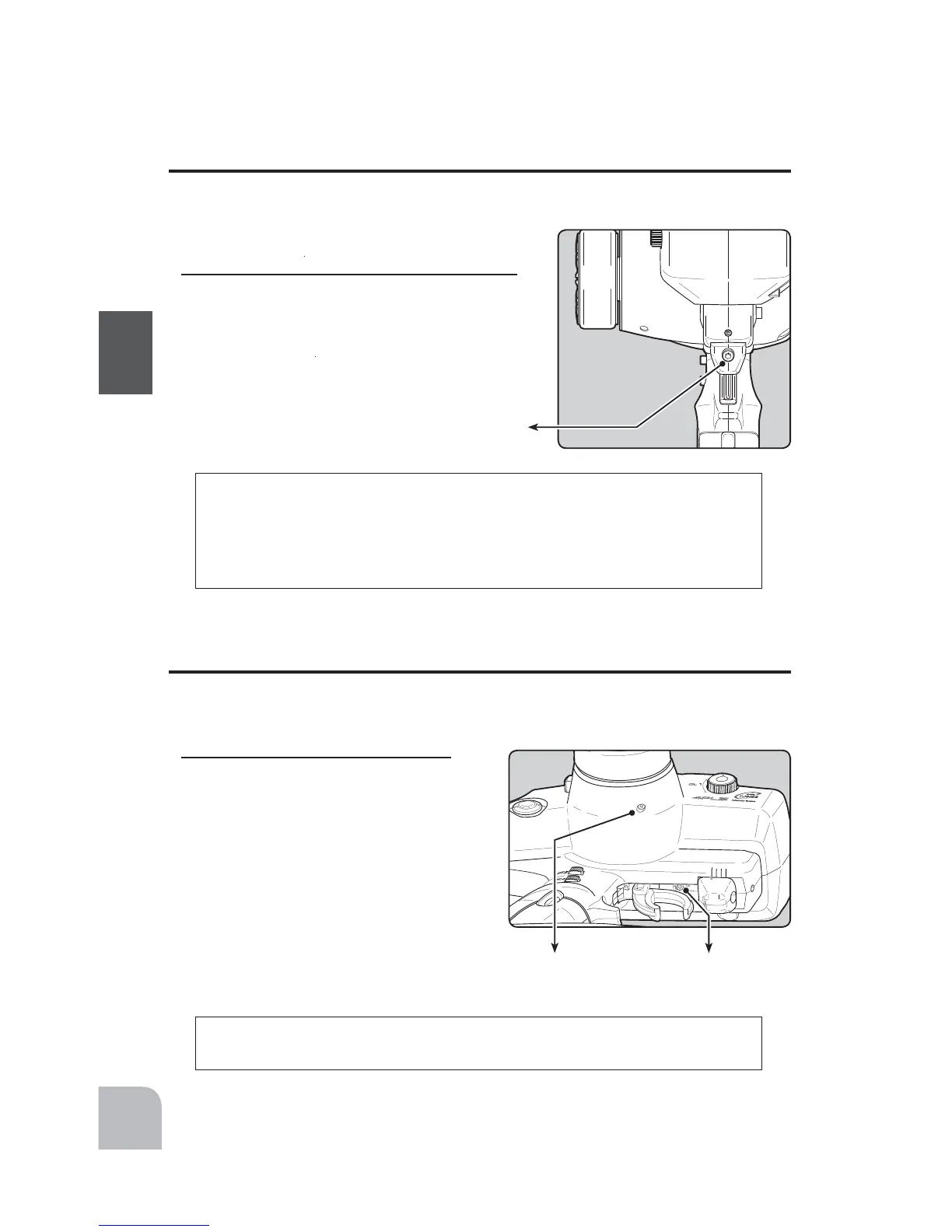

Mechanical ATL
adjusting screw
22
Before Using
Adjustment
1
Using a 2.5mm hex wrench, adjust the trigger brake
(reverse) stroke. (The screw moves the throttle trig-
ger stopper.)
s7HENTHESCREWISTURNEDCLOCKWISETHESTROKEBECOMESNAR-
rower. Adjust the stroke while watching the screw.
Note:
Mechanical ATL Adjustment
Make this adjustment when you want to decrease the stroke of the brake (back) side of
the throttle trigger for operation feel.
Wheel & Trigger Tension Adjustment
Make this adjustment when you want to change the wheel or trigger spring’s tension.
Adjustment
1
Using a 1.5mm hex wrench, adjust the
wheel spring tension by turning the screw
inside the adjusting hole in the arrow di-
rection.
s4HESPRINGIS SETTO THEWEAKESTTENSIONAT THE
factory.
s7HEN THE ADJUSTING SCREWIS TURNED CLOCKWISE
the spring tension increases.
Note:
Wheel tension
adjusting screw
Once you have changed the mechanical stroke on the brake side, be sure to adjust
the scale of the throttle channel accordingly by using the "Adjuster Function"
(page 105).
Due to this change, you also need to adjust in most cases the travel of the throttle
servo by using "End point Adjuster".
The adjustment range is up to 7 to 8 turns from the fully tightened (strongest) po-
sition. If turned farther than this, the adjusting screw may fall out.
Trigger tension
adjusting screw
