ADJUSTER
"
105
Function
Adjuster "ADJUSTER"
(Preparation)

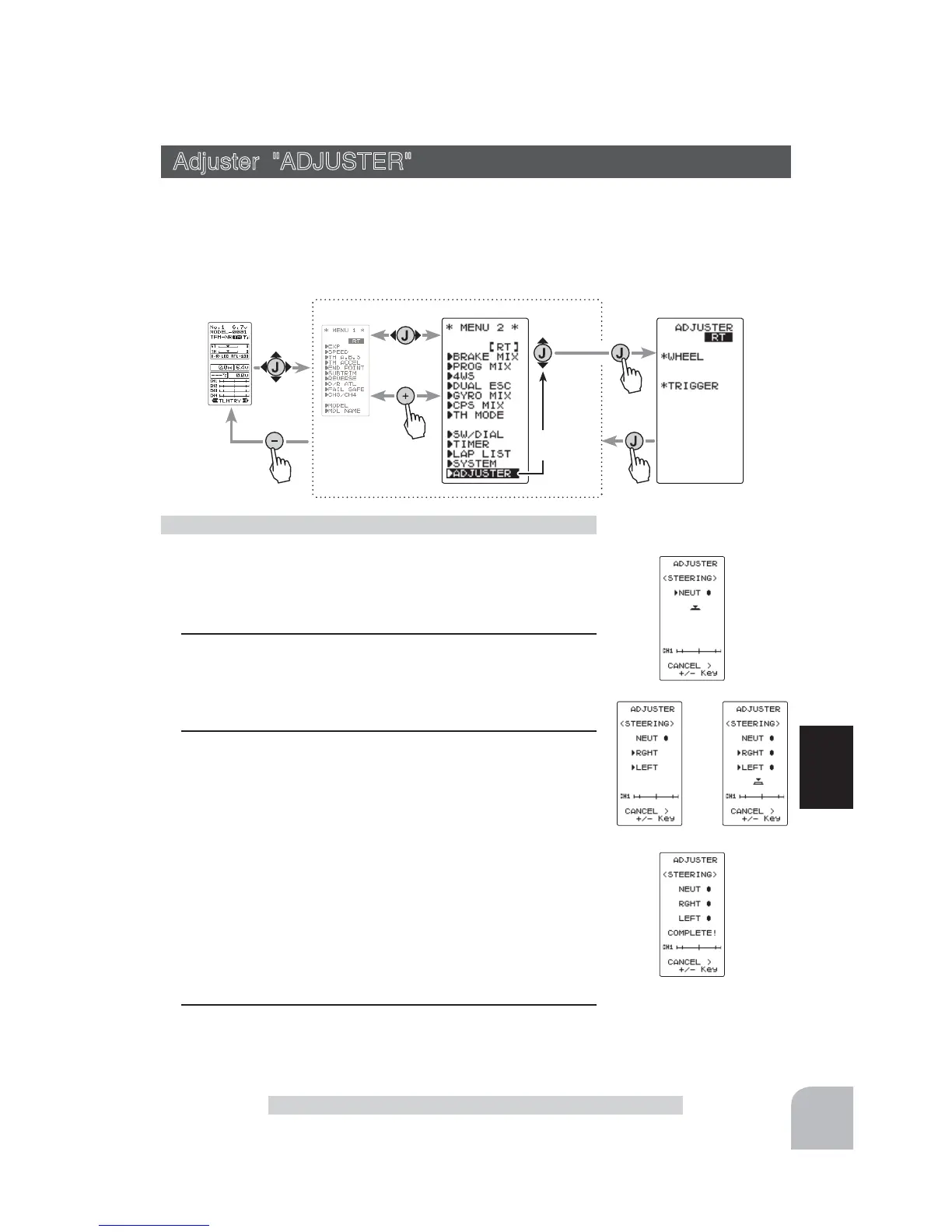

On the ADJUSTER screen, select the setting item "WHEEL"
by the (JOG) button, and pressing the (JOG) button.
1
(Steering neutral adjustment)
In the neutral setup screen (fig-1) state, lightly pull the steer-
ing wheel and then press the (JOG) button in the state in
which the wheel is not being touched.
2
(Steering throw adjustment)
In the throw setup screen state (fig-2), lightly turn the wheel
fully to the left or right and when button mark (fig-3) is dis-
played, pressing the (JOG) button.
Internal check is performed automatically. When each adjust-
ment point is within a fixed range, correction is performed
and "COMPLETE" (fig-4) is displayed.
If an adjustment point is not within a fixed range, correction
is not performed and the correction data is not updated.
When button mark is not displayed even though correction
was performed again, please contact a Futaba Radio Control
Customer Center.
3
When ending, return to the MENU2 screen by pressing the
(JOG) button.
Steering adjustment
Adjuster "ADJUSTER"
Steering wheel and throttle trigger neutral position and servo operating angle correction
can be applied. This is used when a mechanical offset has occurred for some reason.
*
However, when correction was applied, the set value of all the setting functions
must be rechecked.
Display the adjuster screen from the system menu.
