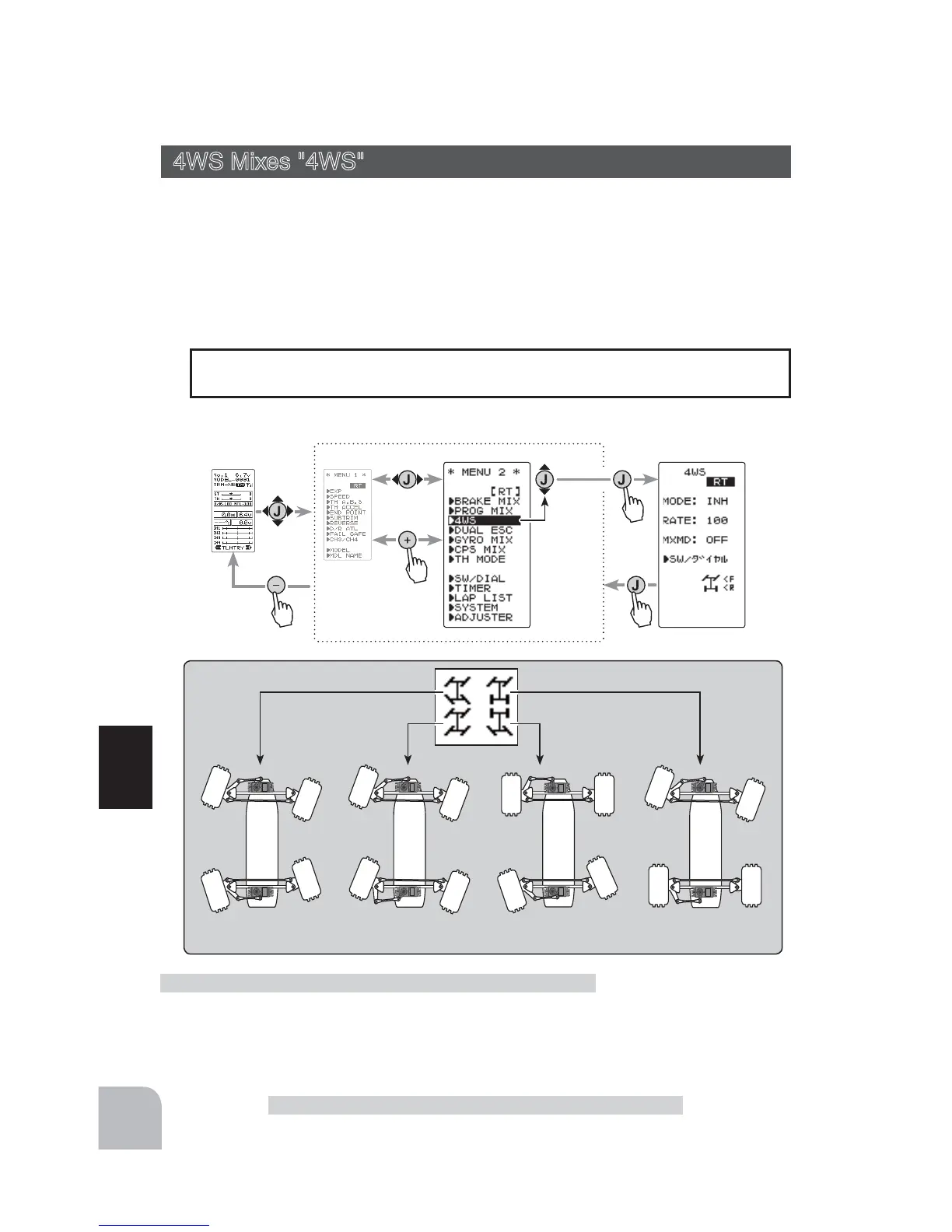

FUTABA 4pls User Manual

Front side only
（
4WS OFF
）
Same phase Reverse phase Rear side only
Press
Press
Press
(HOME screen)
(MENU 1 screen)
(4WS screen)
(MENU 2 screen)
Press
Select
" 4WS "
72
Function
This function can be used with crawlers and other 4WS type vehicles. It is mixing which
uses the 1st CH to control the front side steering and the 3rd CH to control the rear side
steering.
OFF (front side only), reverse phase, same phase, rear side only and other 4WS type
switching is used by selecting SW1 with the function select switch function (P65). If not
selected, <NO SW> is displayed. Therefore, select SW1.
4WS Mixes "4WS"
(Steering, 3rd channel system)
Setup items
MODE
：
4WS Type
RATE
：
3ch rate (Rear side)
MXMD
：
Mix mode
4WS Mixes “4WS”
(Preparation)
Since this function is used by switching the type of 4WS with
a switch, the switch used by the function select switch dial
function (page 65) is set.
4WS mixing adjustment
When the 3rd CH was set to ACT at Brake Mixing (p.68) or when Gyro Mixing (p.76)
is used, 4WS mixing cannot be used.
Setting Special mixings
Display "4WS" screen by the following method:
Function SW
4WS
