FUTABA 4pls User Manual

(HOME screen)
(MENU 2 screen) (
TH A.B.S screen)(MENU 1 screen)
Press
Press
Press
Press
Select
"TH A.B.S"
59
Function
Servo travel
Trigger operation
AB.P
(Amount of
brake return)
TG.P (Trigger point)
CYCL (Cycle)
DUTY (duty): X and Y ratio
X: (Brake application time)
Y: (Brake return time)
A.B.S
- AB.P : Amount of brake return
Sets the rate at which the servo
returns versus trigger opera-
tion for brake release. When set
to 0%, the ABS function is not
performed. When set to 50%,
the servo returns 50% (1/2) of
the trigger operation amount
and when set to 100%, the ser-
vo returns to the neutral posi-
tion.
With A.B.S.
Without A.B.S.

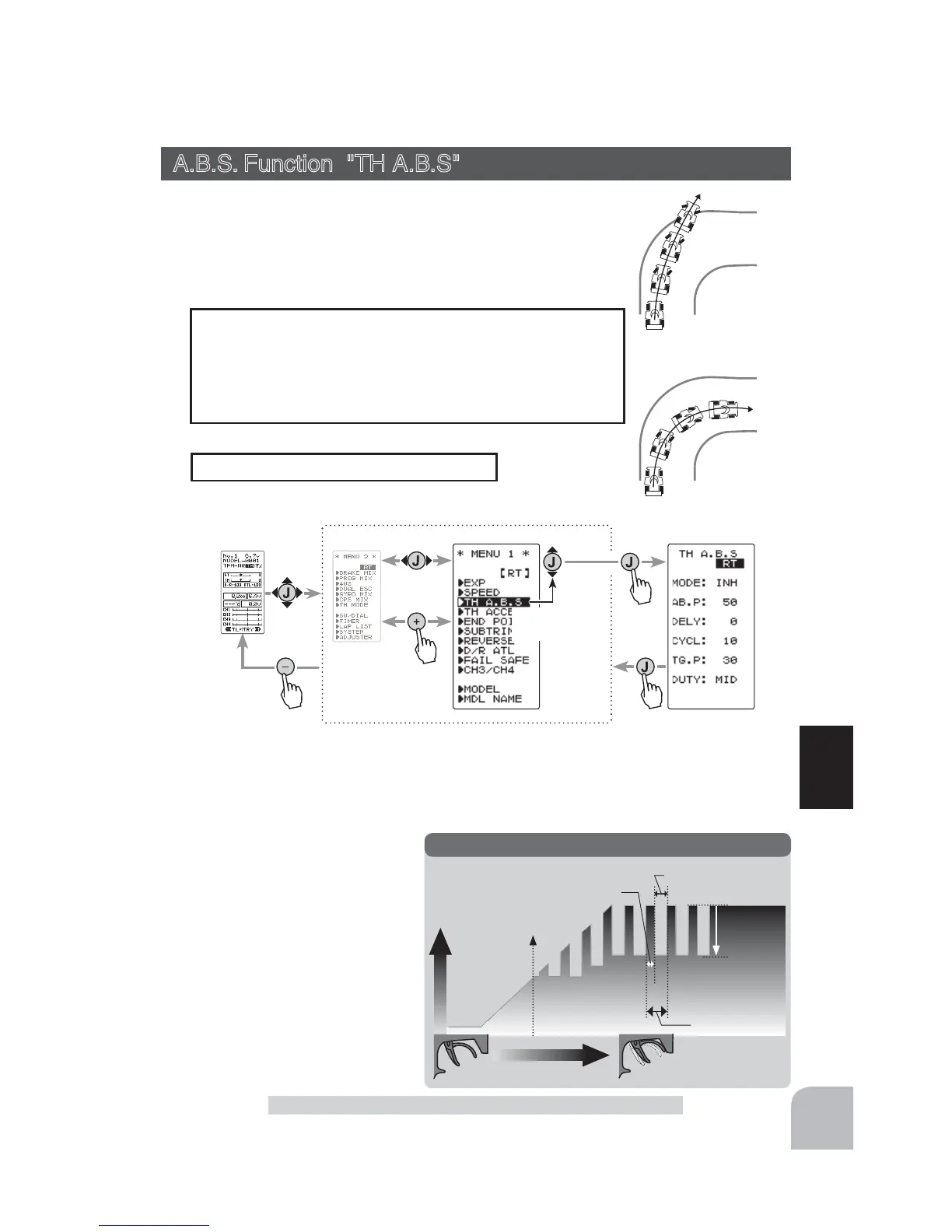

A.B.S. Function "TH A.B.S"
- When the brakes are applied, the throttle servo will pulse
intermittently. This will have the same effect as pumping the
brakes in a full size car.
- The brake return amount, delay amount, pulse cycle, and
brake duty can be adjusted.
Operation
A.B.S. Function "TH A.B.S"
(Throttle system)
When the brakes are applied while cornering with a 4 Wheel
Drive or other type of vehicle, understeer may occur. The genera-
tion of understeer can be eliminated and corners can be smoothly
cleared by using this function.
During ABS operation, the LED blinks.
Operation display
Display "TH A.B.S" screen by the following method:
Setup items
MODE : Function ON/Off
AB.P : Brake return amount
DELY : Delay amount
CYCL : Cycle speed
TG.P : Trigger point
DUTY : Cycle duty ratio
