FUTABA 4pls - Channel3;4 CH3;CH4; Channel 3;4 Position

Press
Press
(HOME screen)
(MENU 2 screen)
(CH3/CH4 screen)
Press
(MENU 1 screen)
Press
Select
" CH3/CH4 "
Display when CH3/4 is as-
signed to a switch by the switch
dial functiondialt.Cannot adjust
the CH3/4 via the screen.
63
Function

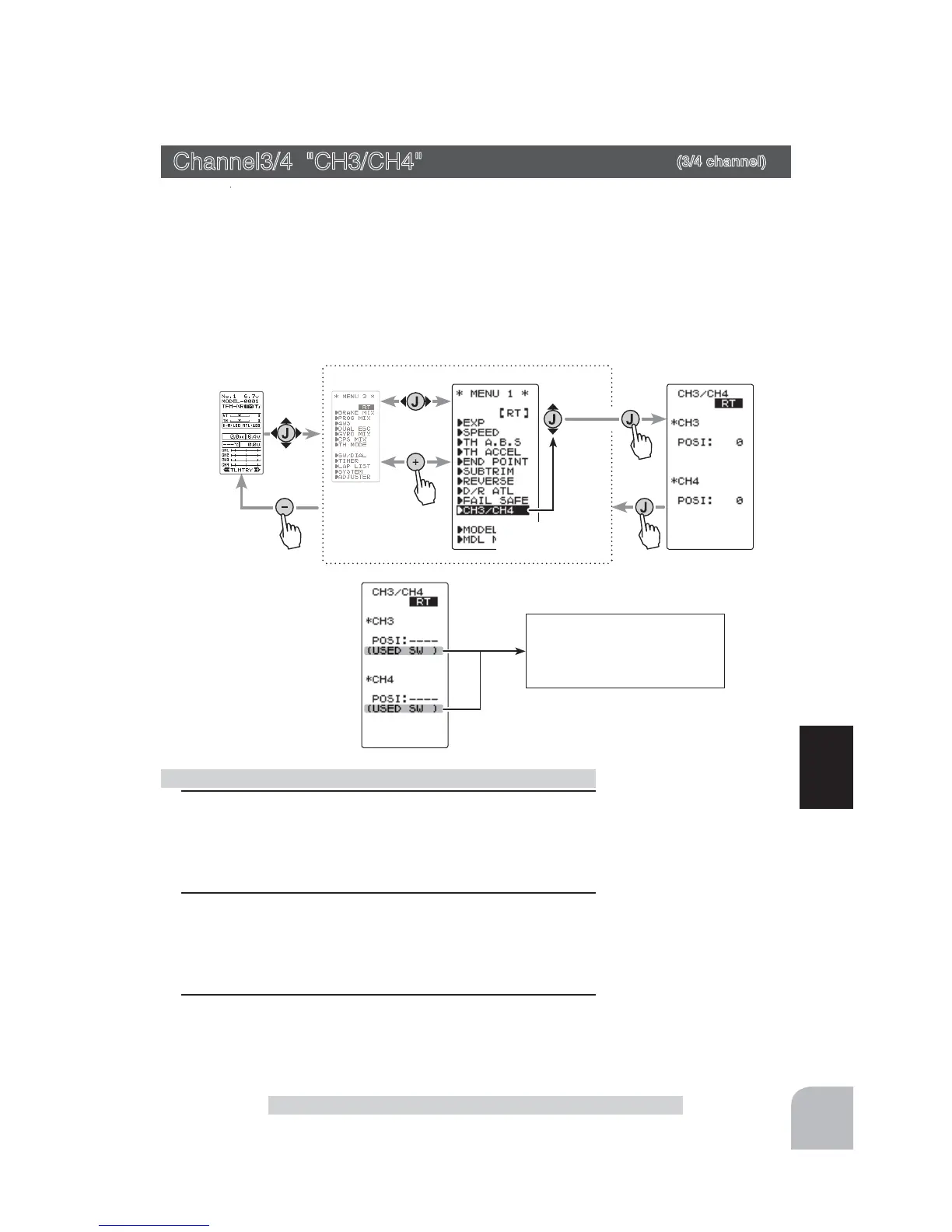

Channel3/4 "CH3/CH4"
Channel3/4 "CH3/CH4"
(3/4 channel)
The channel 3/4 servo position can be set from the transmitter. When CH3 is as-
signed to a dial by the switch dial function (p.65), this setting is linked to that dial.
When CH3/4 is not assigned to a dial, it can be set with this screen.
When CH3/4 is assigned to a switch by the switch dial function (p.65), you cannot
adjust the CH3/4 via the screen.
Display "CH3/CH4" screen by the following method:
1
(Function selection)
On each CH3/CH4 screen select CH3 "POSI" or CH4 "POSI"
by the (JOG) button up or down operation.
2
(Position setting/rate adjustment)
Use the (+) and (-) buttons to adjust the channel 3 or chan-
nel 4 position.
3
When ending, return to the MENU1 screen by pressing the
(JOG) button.
Rate/position adjustment on channel menu screen
Adjust button
- Adjust with the (+) and (-) but-
tons.
- Return to the initial value
"100" by pressing the (+) and
(-) buttons simultaneously for
about 1 second.
Channel 3 position (POSI)
Channel 4 position (POSI)
0~100%
Initial value: 0
