Function
End Point Adjuster "END POINT"
(Preparation)
- Before setting the throttle end point adjustment (END POINT),
set the throttle ATL lever (initial setup: DT4) to the maximum
throttle angle position 100%.
- Select the setting item "FWD" by the (JOG) button up or down
operation and make the following adjustments:
1
Throttle (forward side) adjustment
Pull the throttle trigger fully to the high side and use
the (+) or (-) buttons to adjust the throttle angle.
However, when using an FET amp, set to 100%.
2
Throttle (brake side/reverse side) adjustment
Move the throttle trigger fully to the brake side and
use the (+) or (-) buttons to adjust the throttle angle.
However, when using an ESC, set to 100%.
3
When ending, return to the MENU1 screen by pressing the
(JOG) button.

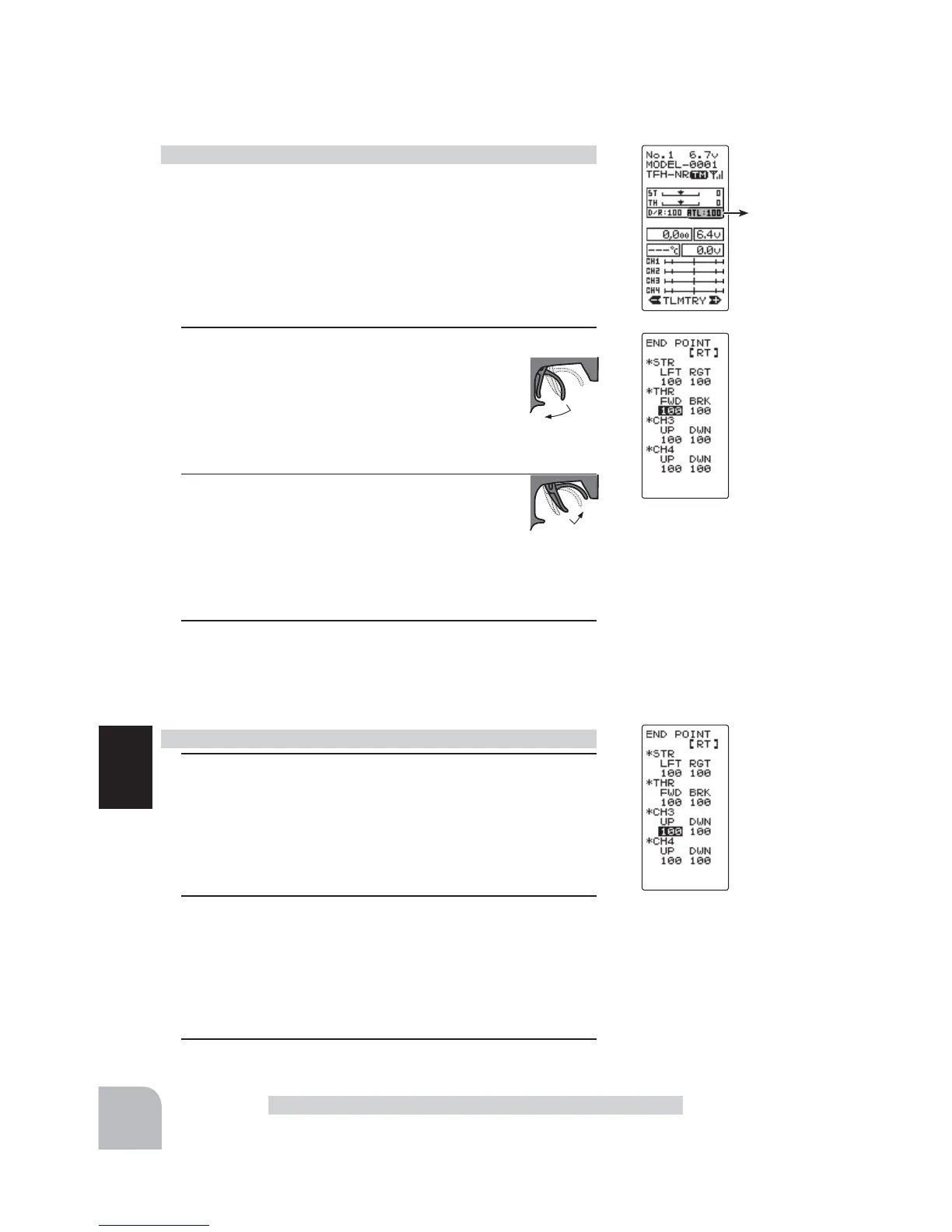

Throttle (END POINT) adjustment
1
3rd/4th channel servo (up side) adjustment
Select the setting item "CH3 or CH4 UP" by the (JOG) but-
ton up or down operation, and set the 3rd or 4th channel dial
fully to the up side (+ side) and use the (+) or (-) buttons to
adjust the servo angle.
2
3rd/4th channel servo (down side) adjustment
Select the setting item "CH3 or CH4 DWN"by the (JOG) but-
ton up or down operation, and set the 3rd or 4th channel dial
fully to the up side (- side) and use the (+) or (-) buttons to
adjust the servo angle.
3
When ending, return to the MENU1 screen by pressing the
(JOG) button.
3rd & 4th channel servo (END POINT) adjustment
Adjust button
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value
"100" by pressing the (+) and
(-) buttons simultaneously for
about 1 second.
Throttle EPA
THR FWD :0~120
THR BRK :0~120
Initial value :100
Adjust button
Adjust with the (+) and (-) but-
tons.
- Return to the initial value "100"
by pressing the (+) and (-) but-
tons simultaneously for about 1
second.
3rd & 4th channel EPA
CH3/CH4 UP :0~120
CH3/CH4 DWN :0~120
Initial value :100
