Function
AB.P
(Amount of brake return)
AB.P
Servo travel

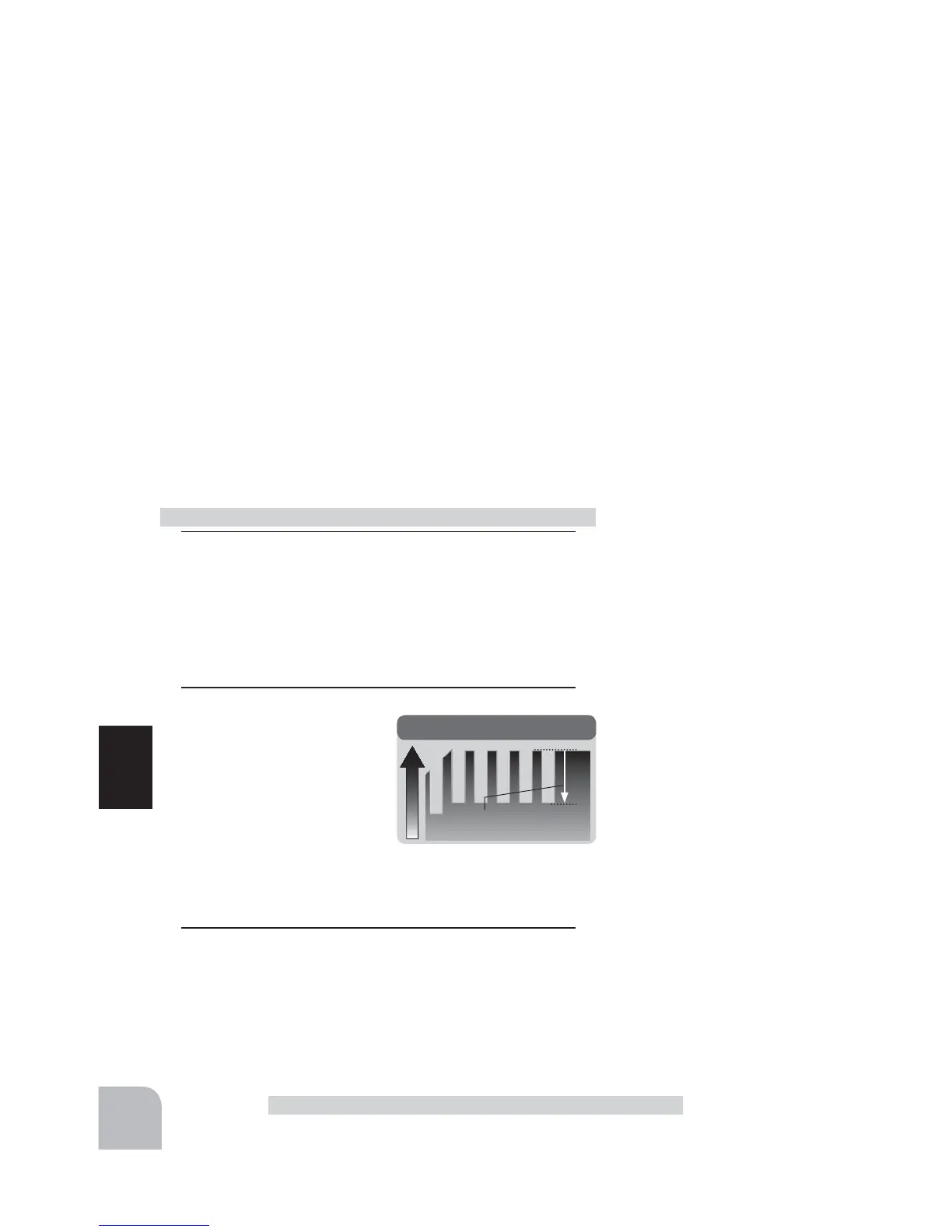

A.B.S. Function "TH A.B.S"
- DELY : Delay
Sets the delay from brake operation to ABS operation. When set to 0%, the ABS func-
tion is activated without any delay. At 50%, the ABS function is activated after a delay
of approximately 1 second and at 100%, the ABS function is activated after a delay of
approximately 2 seconds.
- CYCL : Cycle speed
Sets the pulse speed (cycle). The smaller the set value, the faster the pulse cycle.
- TG.P : Trigger point
Sets the trigger point at which the ABS function begins to operate at brake operation.
- DUTY : Cycle duty ratio
Sets the proportion of the time the brakes are applied and the time the brakes are re-
leased by pulse operation. The ratio can be set to HIGH, MID or LOW.
- MODE : Function ON/OFF
ABS function ON/OFF setting. When using the ABS function, set to "ACT(ON)".
1
(Function ON/OFF)
Select the setting item "MODE" by the (JOG) button up
or down operation. Set the function to the active state by
pressing the (+) or (-) button.
"INH(OFF)" :Function OFF
"ACT(ON)" :Function ON
"ACT(OFF)" :Switch OFF when setting switches
2
(Brake return amount adjustment)
Select the setting item "AB.P"
by the (JOG) button up or
down operation . Use the (+)
or (-) button to adjust the re-
turn amount.
"0" :No return
"50" :Return to the 50% position of the brake operation amount
"100" :Return to the neutral position.
3
(Delay amount setup)
Select the setting item "DELY" by the (JOG) button up or
down operation. Use the (+) or (-) button to adjust the de-
lay amount.
"0" :A.B.S. function performed without any delay
"50" :A.B.S function performed after an approximate 1 sec delay.
"100" :A.B.S. function performed after an approximate 2 secs delay.
A.B.S function adjustment
- Brake return amount (AB.P)
is influenced by the "EXP"
rate on the brake side.
Delay amount (DELY)
0 ~ 100
Initial value: 0
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
Brake return amount (AB.P)
0 ~ 50 ~ 100
Initial value: 50
Function ON/OFF (MODE)
INH(OFF), ACT(ON,OFF)
Select button
- Select with the (+) or (-) but-
tons.
