FUTABA 4pls User Manual

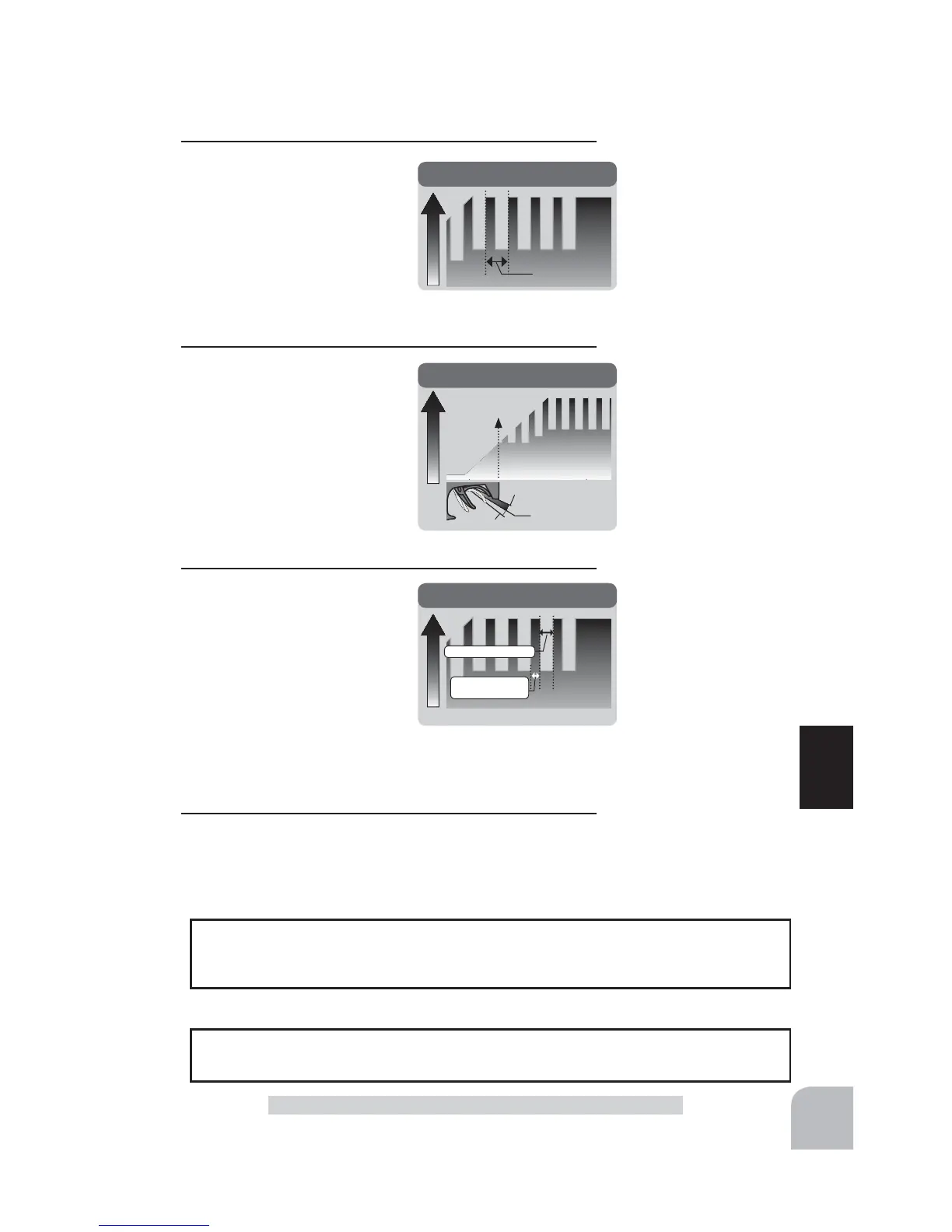

DUTY
Servo travel
DUTY (duty): X and Y ratio
X: (Brake
application time)
Y: (Brake return time
TG.P
Servo travel
TG.P
(Trigger point)
TGP
Brake side
Neutral
CYCL
Servo travel
CYCL (Cycle)
Duty ratio (DUTY)
LOW - MID - HIGH
Initial value: MID
Trigger point (TG.P)
10 ~ 100
Initial value: 30
Cycle speed (CYCL)
1 ~ 30
Initial value: 10
61
Function
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
A.B.S. Function "TH A.B.S"
Use SW1or SW2 to switch the A.B.S. function ON/OFF.
See the function select
switch dial function (See page 65).
Switch setting
The brake return amount (AB.P), delay amount (DELY) and cycle (CYCL) can be con-
trolled with digital dial or digital trim, with the function
switch dial function. (See
page 65)
Dial / Trim Setting
4
(Cycle speed adjustment)
Select setting item "CYCL" by
the (JOG) button up or down
operation. Use the (+) or (-)
button to adjust the pulse
speed (cycle).
- The smaller the set value, the faster the pulse speed.
5
(Trigger point setup)
Select setting item "TG.P" by
the (JOG) button up or down
operation. Use the (+) or (-) but-
ton to adjust the operation point.
- Sets the throttle trigger position at which the A.B.S. function is performed.
The number is the % display with the full brake position made 100.
6
(Cycle duty ratio setup)
Select setting item "DUTY" bby
the (JOG) button up or down
operation. Use the (+) or (-)
button to adjust the duty ratio.
"LOW" :Brake application time becomes shortest. (Brakes lock with difficulty)
"HIGH" :Brake application time becomes longest (Brakes lock easily)
(Remark) For low grip, set at the LOW side and for high grip, set at the
HIGH side.
7
When ending, return to the MENU1 screen by pressing the
(JOG) button.
