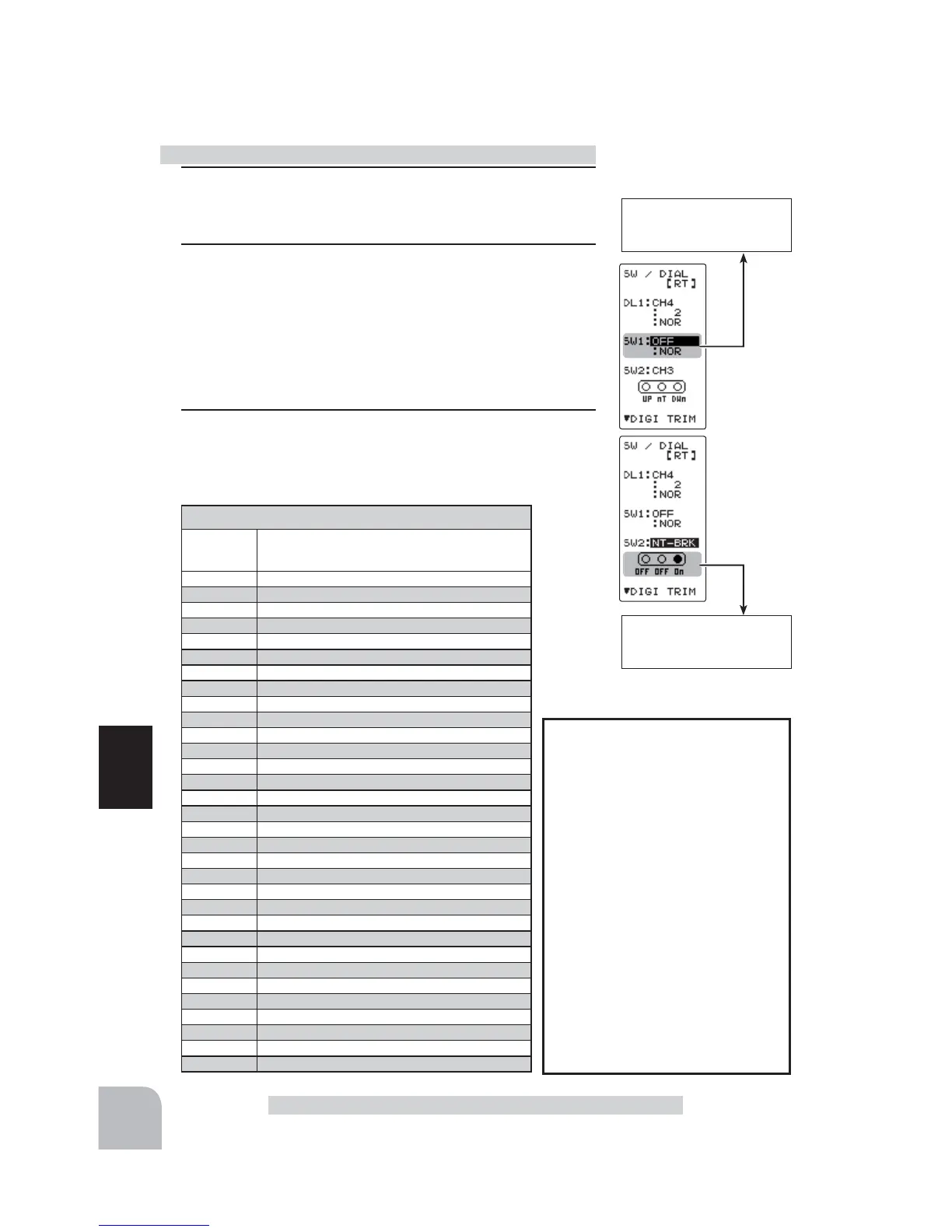

Adjust button
Adjust with the (+) and (-) but-
tons.
SW1 function selection
Direction of operation set-
ting
SW2 function selection
ON/OFF position is dis-
played.
66
Function
Abbreviation
used on setup
screen
Function name, etc
D/R Dual rate function
ATL ATL function
EXP-ST Steering EXP
EXP-FW Throttle EXP (Forward side)
EXP-BK Throttle EXP (Brake side)
SPD-TN Steering speed (Turn side)
SPD-RN Steering speed (Return side)
ABS.PS A.B.S. function (Return amount)
ABS.DL A.B.S. function (Delay)
CYCLE A.B.S. function (cycle speed)
ACC-FW Throttle acceleration (Forward side)
ACC-BK Throttle acceleration (Brake side)
TH-SPD Throttle speed
ST-TRM Steering trim
TH-TRM Throttle trim
CH3 Channel 3
CH4 Channel 4
SUBTR1 Sub trim (CH1)
SUBTR2 Sub trim (CH2)
SUBTR3 Sub trim (CH3)
SUBTR4 Sub trim (CH4)
IDLE Idle up function
ESC-RT Dual ESC mixing (4ch ESC rate)
TH-OFF
Throttle off (engine cut)
PMX-A Program mixing (RGHT/BRAK/DOWN sides)
PMX-B Program mixing (LEFT/FWRD/UP sides)
BK3-RT Brake mixing (3ch brake rate)
BK4-RT Brake mixing (4th brake rate)
4WS-RT
4WS mixing (3ch steering rate)
ESC-MD Dual ESC mixing (Drive mode select)
GYRO Gyro mixing (Gain rate)
OFF
Not used
Set table functions (DL1, DT1/DT2/DT3)
(Setting range: 1~10, 20, 30, 40, 50,
100, 2P)
-Steering trim/throttle trim
When set to the minimum "1", the total
trim operating width is 200 clicks. For
"100", the total operating width is 2 clicks
and for 2P, the total operating width is 1
click.
-Rate, etc. setting
This is the % value which is operated by
1 click relative to the set value of each
rate. Since the total operating width of
functions having a rate of -100~0~+100
is 200%, when set to "100", the total op-
erating width is 2 clicks. Since the total
operating width of functions with a 0~100
rate is 100%, "100" and 2P are operated
by 1 click.
-Channel 3/4
When set to the minimum "1", the to-
tal operating width of channel 3 is 200
clicks. For "100", the total operating with
is 2 clicks and 2P is operated by 1 click.
Relationship between set value
and step amount
Function Select Trim Dial "TRIM DIAL"
1
(Setting SW selection)
Select the SW you want to set by the (JOG) button up or
down operation.
2
(Function setting)
Select the function with the (+) or (-) button.
-Refer to the list for the abbreviations of the functions.
(Changing the SW1operation system)
Select DIR of <SW1> by the (JOG) button up or down opera-
tion. Select ALT or NOR with the (+) or (-) button.
3
When ending, return to the MENU2 screen by pressing the
(JOG) button.
Function select switch setting
